2024 Suzuki KINGQUAD 500 AXi POWER STEERING SE

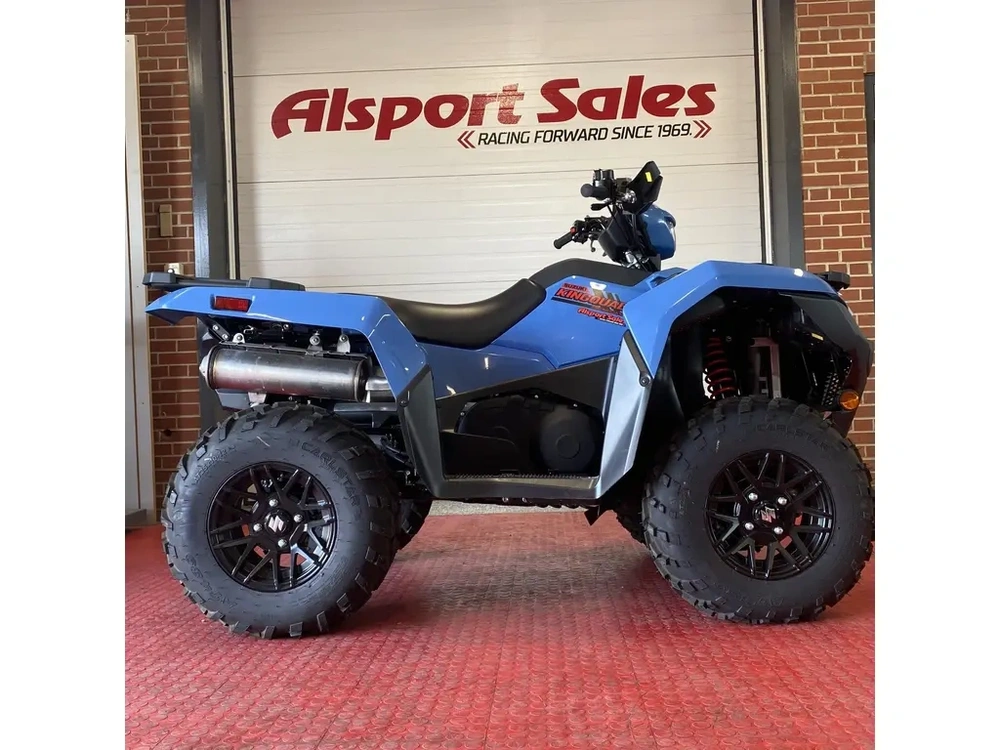

2024 Suzuki KingQuad 500AXi Power Steering

The KingQuad 500AXi Power Steering is not just a new ATV, it’s a KingQuad ATV.

Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting, and is ready for you to join its history. The 2024 KingQuad 500AXi Power Steering helps tackle challenging terrain with the capabilities that only a KingQuad possesses.

Features may include:

Bold, angular styling, and a relaxed riding position with low-effort electronic power steering

Torque-rich, EFI-fed engine, and QuadMatic™ transmission with effective engine braking

ENGINE

The powerful 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to produce a wide powerband with strong top-end power.

The compact four-valve cylinder head has large intake valves and straight intake ports for superb cylinder charging efficiency. Screw and nut valve lash adjusters simplify maintenance.

TRANSMISSION

The QuadMatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during descents.

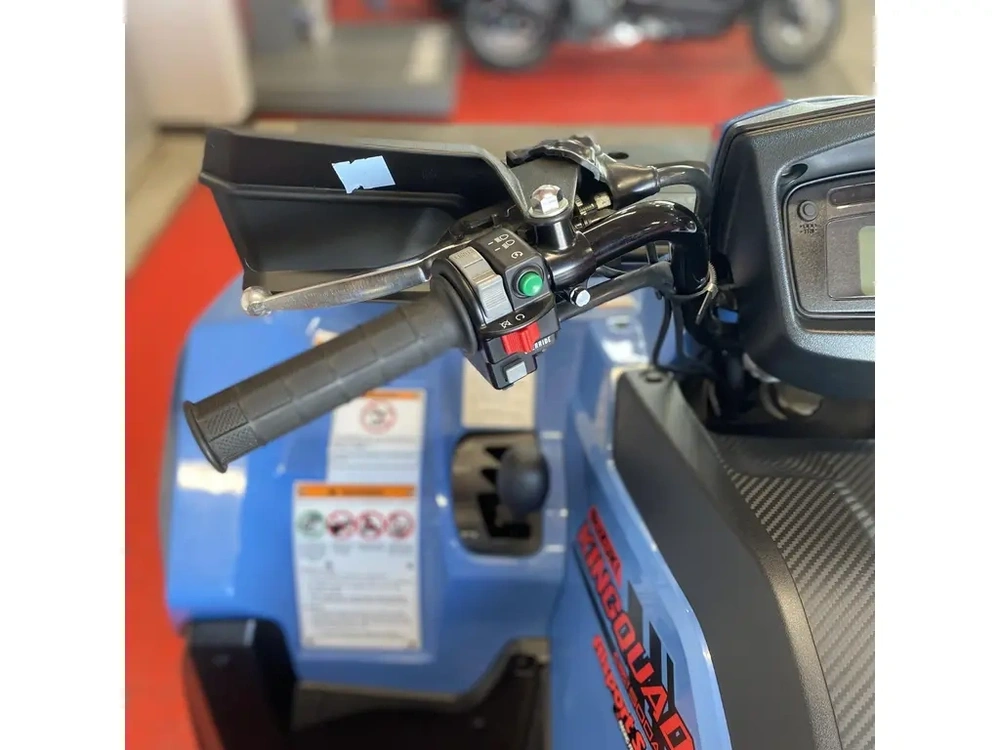

Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD, and differential-lock 4WD. An override button on the left handlebar can be used to override the normal speed limiter when getting out of mud.

CHASSIS

To increase rider comfort, make the ATV easier to ride on any terrain, and increase towing capacity, the KingQuad’s frame has thick-wall tubes and reinforced brackets in key areas.

The KingQuad’s advanced electric power steering system is higher capacity than the prior generation for significantly reduced steering effort that also damps vibration and jolts to the rider.

UTILITY/CONVENIENCE

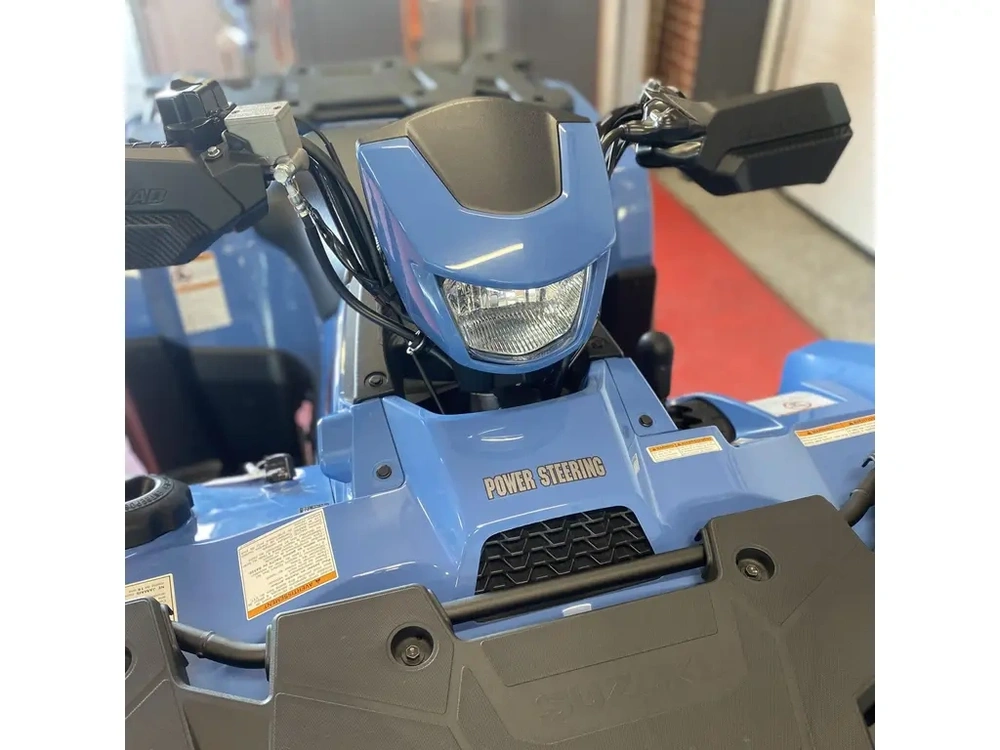

The 35-watt handlebar-mounted headlight illuminates the trail in the direction you are steering the ATV. Dual 35-watt headlights (with high and low settings) are part of the KingQuad's distinctive bodywork.

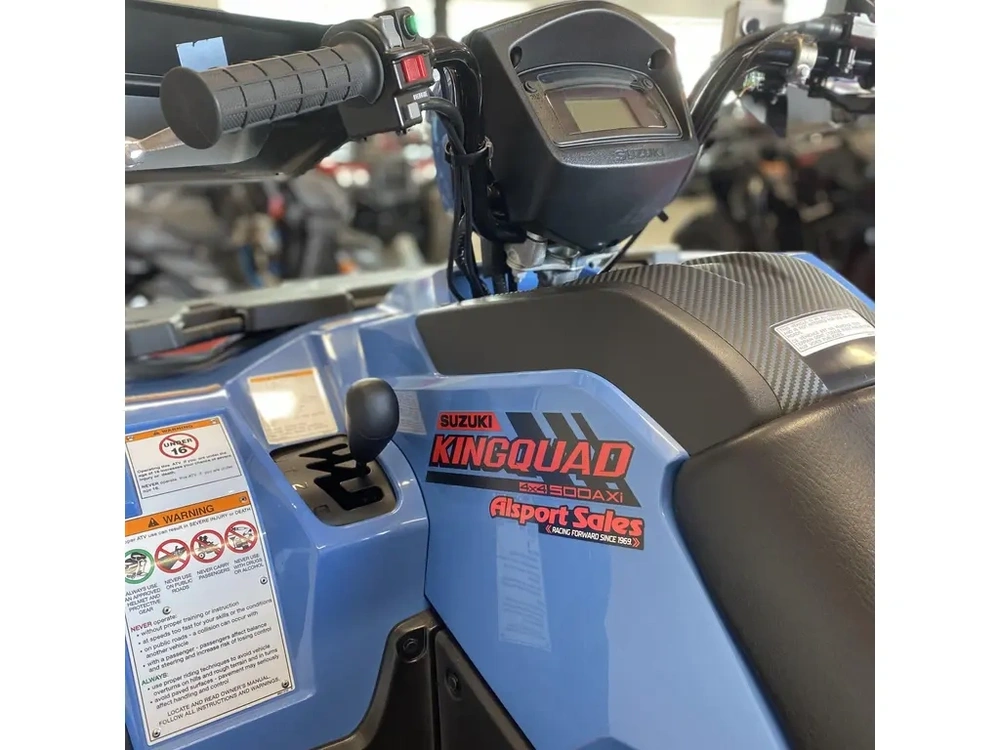

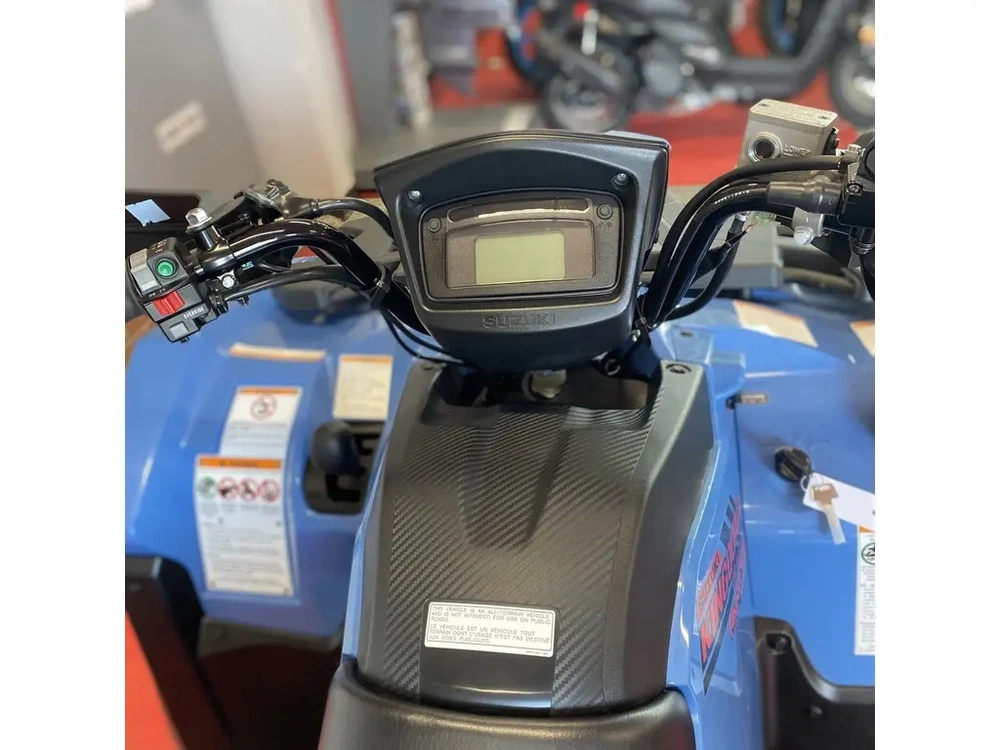

The multi-function instrument panel has improved appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for the speedometer, odometer, twin trip meter, hour meter, clock, fuel level, driving range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.



ENGINE

• Engine4-stroke, 4-valve, OHC single cylinder
• Displacement493cc (30.1 cubic in.)
• Cooling SystemLiquid-cooled
• Bore87.5 mm (3.40 in.)
• Stroke82.0 mm (3.20 in.)
• Compression Ratio9.9:1
• Fuel SystemSuzuki electronic fuel injection
• StarterElectric
• LubricationWet sump
• IgnitionElectronic ignition (transistorized)

DRIVETRAIN

• TransmissionAutomatic variable ratio (V-belt), with high/low-range, and reverse
• ClutchDry shoe, automatic, centrifugal type
• Final DriveShaft drive

SUSPENSION

• Front SuspensionIndependent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers

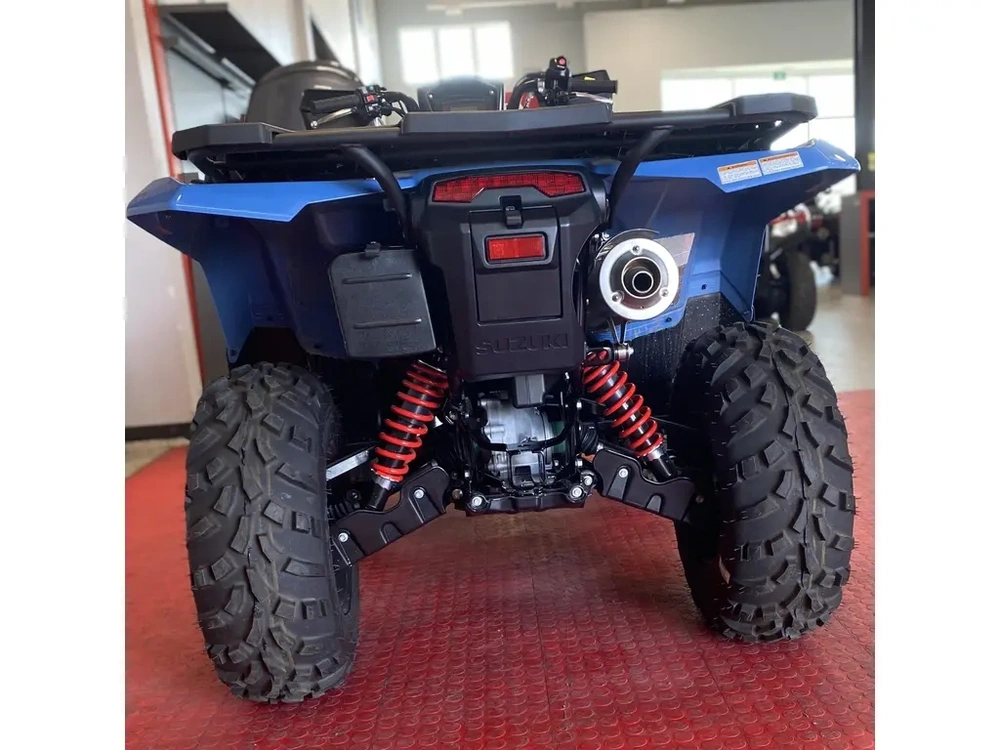

• Rear SuspensionIndependent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers

BRAKES

• Front braking systemDisc brakes, twin rotors
• Rear braking systemSealed oil-bathed multi-disc

WHEELS AND TIRES

• Wheels2WD, 4WD and 4WD Differential Lock
• Front TireAT25 x 8-12, tubeless type x 2
• Rear TireAT25 x 10-12, tubeless type x 2

DIMENSIONS

• Overall Length2150 mm (84.6 in.)
• Overall Width1215 mm (47.8 in.)
• Overall Height1285 mm (50.6 in.)
• Wheelbase1285 mm (50.6 in.)
• Ground Clearance260 mm (10.2 in.)
• Seat Height920 mm (36.2 in.)

CAPACITIES

• Fuel Capacity17.5 L (4.6 US gal.)

WEIGHTS

• Curb Weight324 kg (714 lb.), 325 kg (716 lb.) CA model

LIGHTS AND SAFETY

• Headlight Type12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted
• Tail LightLED
