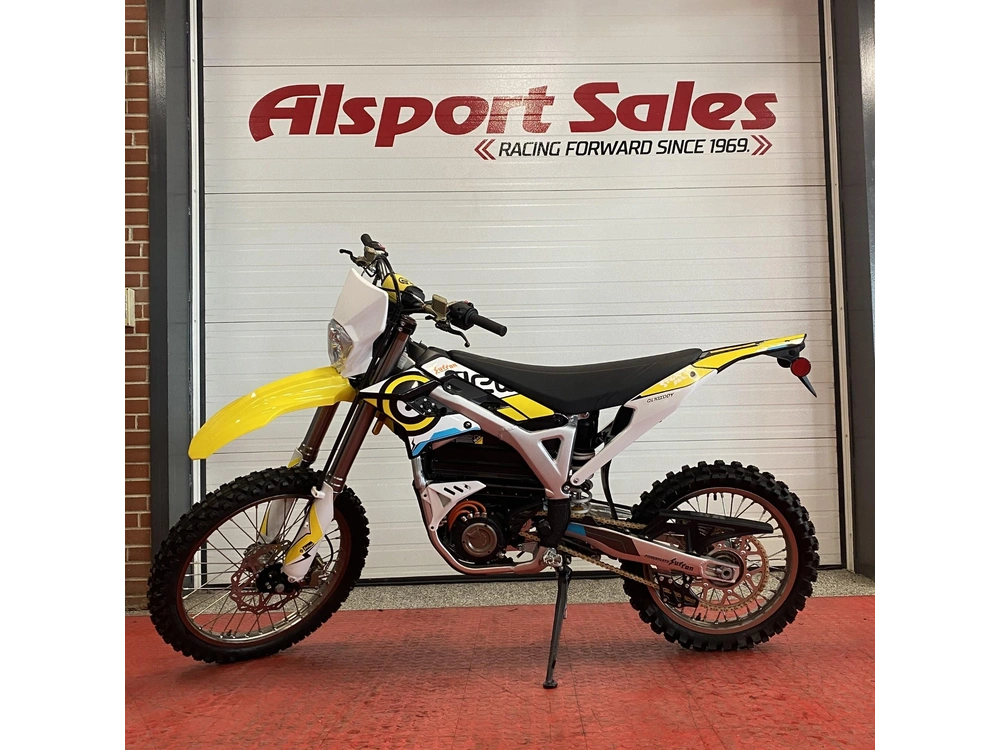

2023 Surron STORM BEE X

SURRON STORM BEE ELECTRIC BIKE

The SurRon Storm Bee comes standard with a multi-level, adjustable energy BERS (E-Brake Energy Return System) system to regenerate the battery during braking. Enjoy extra range and enjoy the ride without the anxiety.

ASR (Active Spin Reduction): The ASR traction control system was independently developed by Surron. With multiple levels of control and on-the-fly adjustability, the Storm Bee can adapt to a variety of road conditions for optimal grip and improved safety.

POWERFUL & INTELLIGENT

SurRon Storm Bee is a power system with continuous output power of 5kW, including 5kW PMSM motor and 5kW FOC motor controller. The product can provide two rated voltage operating modes, 48V and 60V(Rated voltage expansion :48V/60V/72V/84V) which can be automatically adjusted according to the battery system. Due to the excellent heat dissipation structure design and multi-level temperature control strategy, the power system is able to make continuous stable large-scale power output under natural air cooling conditions, which has been applied to the SURRON light bee model with mass production.

Surron’s First Full-Size Electric Dirt Bike

Surron™ is setting another benchmark in the electric off-road world with the 2023 Storm Bee F. With 22.5 kW of electric power in a full-size package, the Storm Bee is for savvy off-road riders ready to make the shift from gas-powered engines. Imagine no more oil changes, no spilled gas, no top-end rebuilds… and no noise. Just plug in, charge up, and ride. The lack of emissions and noise will keep the neighbors happy; the performance will keep you happy.

With 120 km (75 miles) of max range and 520 Nm of torque, the 2023 Storm Bee F performs as well as it looks. Whether you’re heading out to carve some single-trail or a weeknight of laps at the local MX track, the Storm Bee delivers a seat-of-the-pants riding experience like few other off-road bikes can. And it’ll turn heads everywhere you go.

The North American version of the 2023 Storm Bee F comes as an off-road-only model. Unique to the North American version, you’ll receive both a headlight and number plate to cater the bike to your taste and riding environment.

KEY FEATURES OF THE STORM BEE F

• Liquid-cooled, brushless electric motor
• 22.5 kW peak power, 520 Nm peak torque
• Max. range: 120 km (75 miles) on a full charge @ 50 km/h (31 mph)
• 3 riding modes, traction control, regenerative braking
• Turbo mode & reverse gear
• Adjustable off-road suspension, 21/18” wheels (front/rear)
• Quiet & emissions-free
• Switchable headlight & number plate included (North American version only)

TECHNICAL SPECIFICATIONS POWERTRAIN

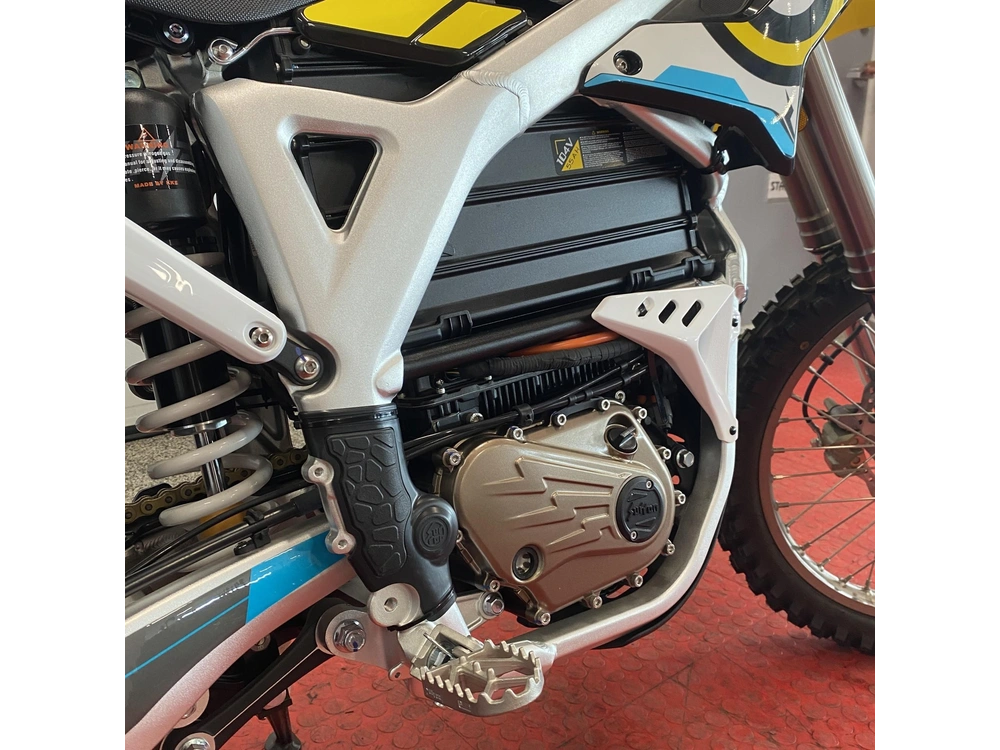

• Motor Type Liquid-cooled, brushless electric (BLDC) motor
• Rated Voltage 104V (DC)
• Rated Power/Peak Power 10,000W/22,500W
• Controller Type FOC Sine Wave
• Peak Torque 520 Nm (383 ft-lbs)
• Top Speed 110 km/h (68 mph)
• Max Range 120 km @ 50 km/h (75 miles @ 31 mph), depending upon terrain)
• Battery 104V/55Ah Lithium Ion
• Charger 10A
• Charging Time 4 Hours (0-100%)
• Drive 530 O-ring Chain

 RIDER AIDS

• Riding Modes Sport, Rain, Eco, Turbo
• Rider Aids ASR (Acceleration Slip Reduction, a.k.a. traction control), BERS (Brake Energy Regenerative System)
• Reverse Gear Button-activated

CHASSIS

• Front Suspension 47 mm inverted fork, 290 mm travel, adjustable compression & rebound
• Rear Fully adjustable monoshock, 290 mm wheel travel
• Front Wheel 21″ wire-spoked rim, 80/100-21 off-road tire
• Rear Wheel 18″ wire-spoked rim, 100/90-18 off-road tire
• Curb Weight 127 kg (280 lbs)
• Max Load 100 kg (220 lbs)
• Vehicle Dimensions 2,080 mm x 805 mm x 1,240 mm (81.9 x 31.7 x 48.8”)
• Minimum Ground Clearance 310 mm (12.2″)
• Wheelbase 1,430 mm (56.3″)
• Seat Height 940 mm (37″)

ADDITIONAL FEATURES

• USB Connection Single USB-2.1A Outlet
• Instrumentation LCD Digital Dash
• Headlight LED
