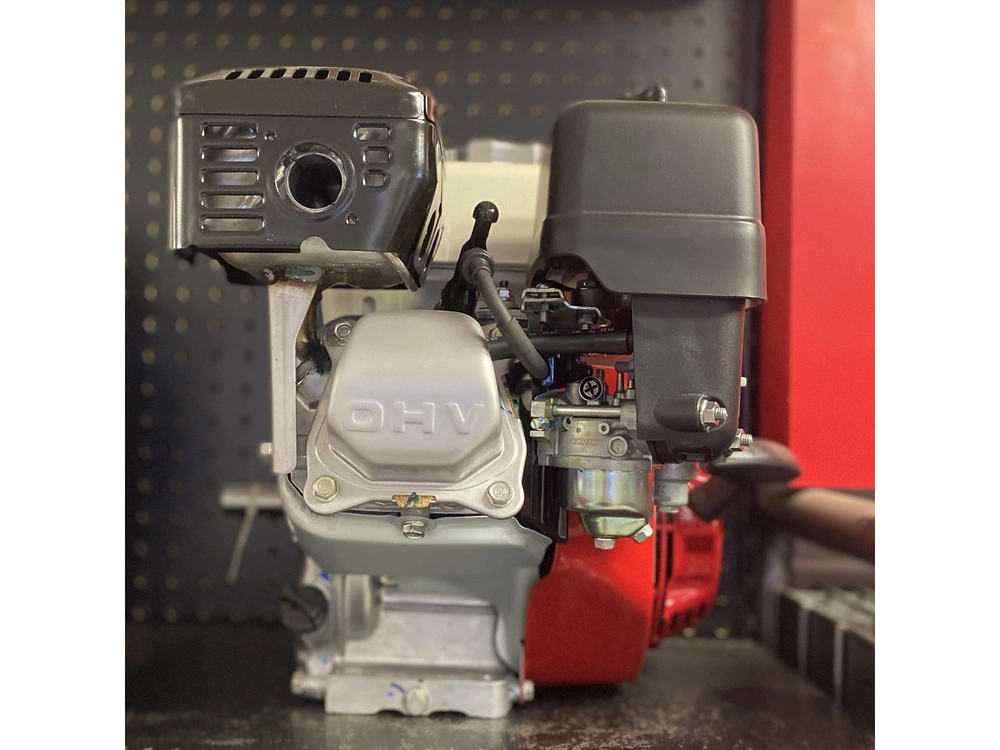

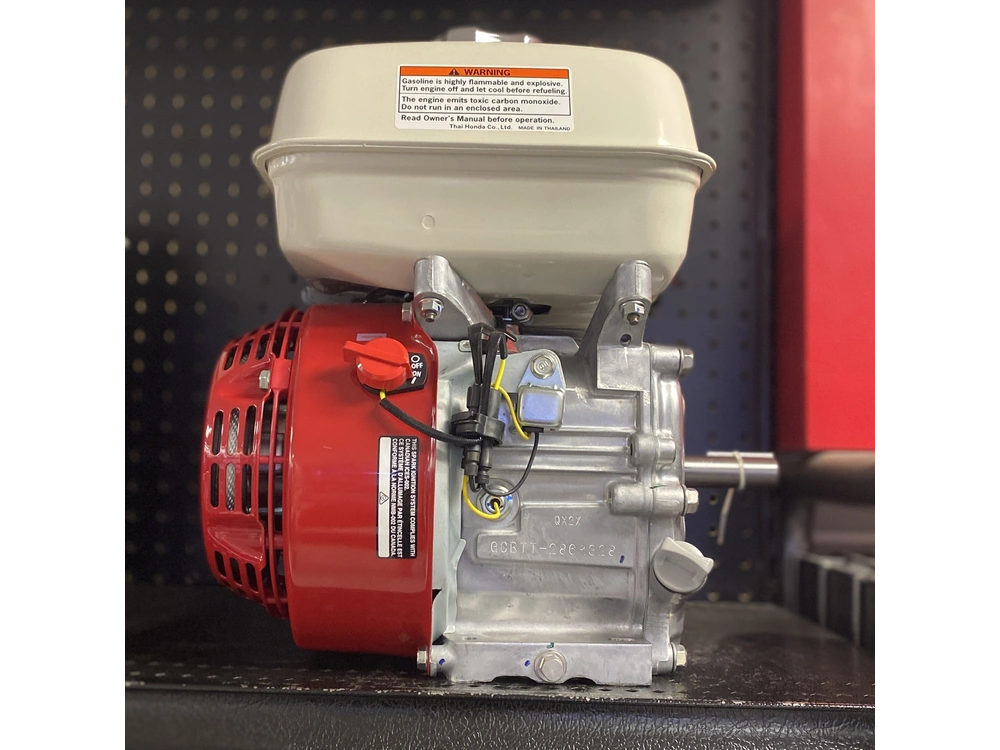

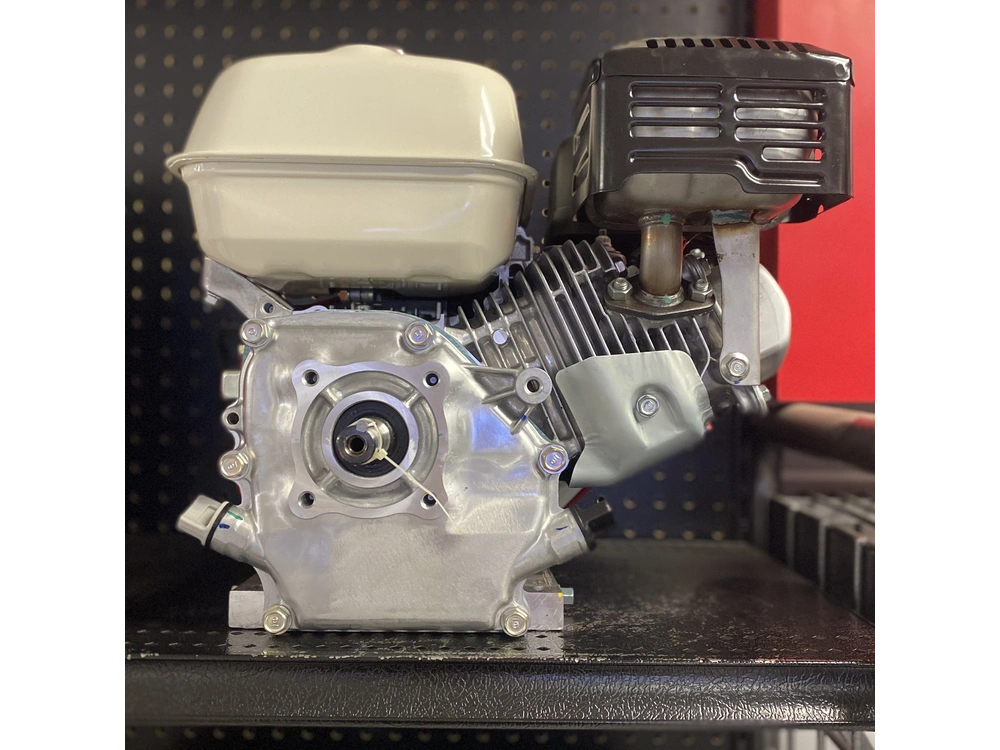

2025 Honda GX200UTQX6 ENGINE

GX200 Horizontal Crankshaft

Newly designed for better noise levels and emissions, the GX200 is a serious performer that doesn’t sacrifice power when it counts.

Common Applications

• Agricultural equipment
• Commercial lawn and garden equipment
• Construction/industrial equipment
• Forestry equipment
• Generators
• Pressure washers
• Tillers/cultivators
• Water pumps

FEATURES

Fuel-Efficient, High-Output Operation

• Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
• OHV design for increased efficiency and optimal power transfer
• High compression ratio for better fuel efficiency

Smooth Performance

• Precision-engineered components result in lower vibration
• Ball bearing supported crankshaft for greater stability

Exceptionally Quiet

• Large capacity, multi-chamber exhaust system
• Reduced mechanical noise due to light weight, noise-reducing materials
• Forged steel crankshaft and rigid crankcase
• Helical cut gears
• Sophisticated air intake system

Proven Reliability

• Oil alert
• New carburetor chamber coating and carburetor filter help to protect against fuel impurities
• Cast iron cylinder sleeve
• High-quality materials, fit, and finish
• Dual element air cleaner
• Fuel Valve

Easy to Use and Maintain

• Simple throttle control
• Large fuel tanks
• Large automotive-type fuel cap
• Dual oil drains and fill
• Easy, convenient, heavy duty control box
• Easily accessible spark plug

Easy Starting

• Heavy-duty recoil starter
• Ergonomic, easy to grip recoil rope design
• Automatic mechanical decompression system

Emissions Compliant

• Lower emissions, higher power output!
• CARB and EPA certified
• No catalyst necessary

Available Options

• Low profile versions
• Gear reduction options
• Electric start
• Spark arrester available
• Charge and lamp coils with multiple output options available
• Cyclone Air Cleaner available

SPECIFICATIONS

• Engine Type Air-cooled 4-stroke OHV
• Bore x Stroke 68 mm x 54 mm
• Displacement 196 cm³
• Net Power Output* 5.8 HP (4.3 kW) @ 3,600 rpm
• Net Torque 9.1 lb-ft (12.4 Nm) @ 2,500 rpm
• PTO Shaft Rotation Counterclockwise (from PTO shaft side)
• Compression Ratio 8.5:1
• Fuel Tank Capacity 3.1 litres (3.3 U.S. qts)
• Lamp/Charge coil options 25W, 50W / 1A, 3A, 7A
• Carburetor Butterfly
• Ignition System Transistorized magneto
• Starting System Recoil starter
• Lubrication System Splash
• Governor System Mechanical
• Air Cleaner Dual element
• Oil Capacity 0.6 litres (0.63 U.S. qts)
• Fuel Unleaded 86 octane or higher
• Dry Weight 16.1 kg (35 lbs)
