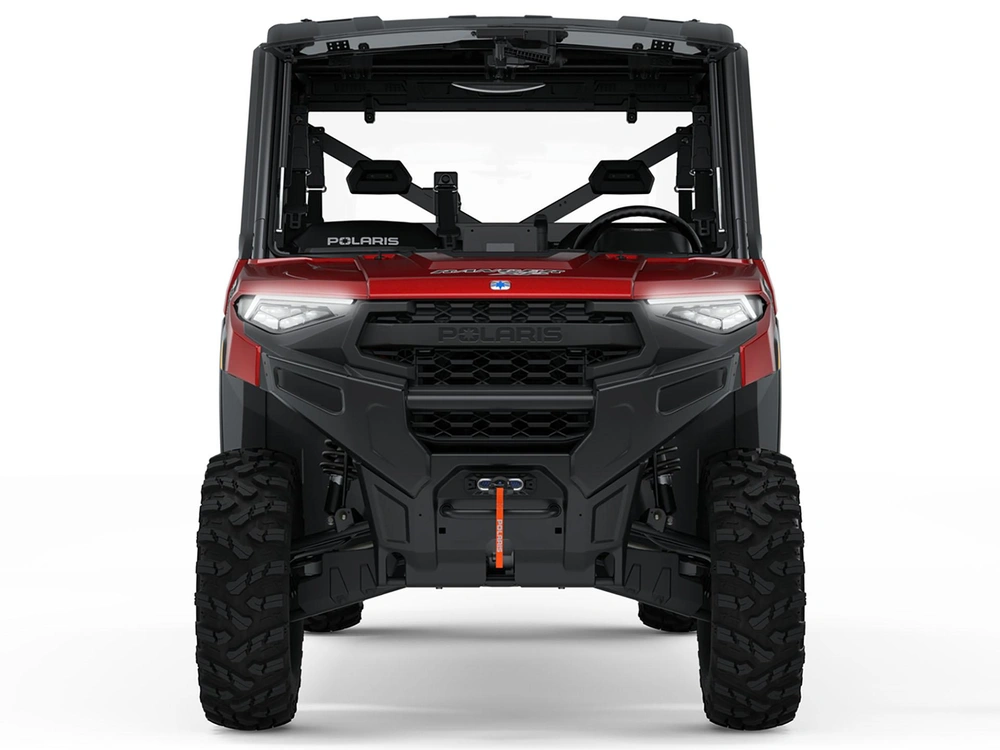

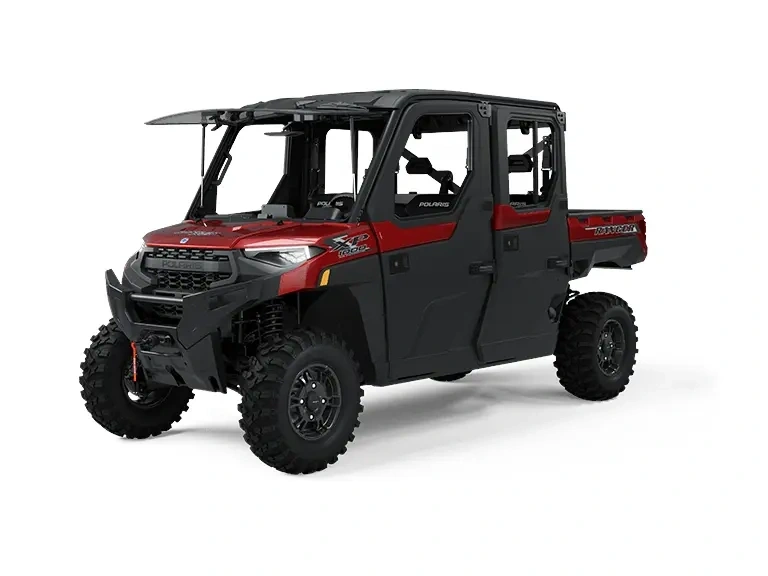

2025 Polaris RANGER CREW XP 1000 NORTHSTAR EDITION ULTIMATE

2025 Polaris® Ranger Crew XP 1000 Northstar Edition Ultimate

FEND OFF THE ELEMENTS

• OFF-ROAD CLIMATE CONTROL

Rain or shine, there's no stopping you from getting the work done with RANGER XP 1000 NorthStar Edition.

Features may include:

COMFORT

Every detail of the refined interior puts the driver and passengers first for comfort and convenience.

• Keep the Elements Out

The factory-installed Pro Shield cab system protects from dust, dirt and water, and reduces noise—so you can enjoy conversation and comfortably ride in rainy, snowy or dusty conditions.

• Control Your Climate

Factory-installed heating and air conditioning lets you control the climate for all-season comfort. For quick relief on hot days, a variable AC compressor automatically varies its pumping capacity to deliver faster cooling and lower temperatures, even when at idle and low engine RPMs.

• Sunup to Sundown Comfort

Find your happy place with a tilt steering wheel and newly styled, adjustable contoured seats featuring back bolsters and extra-plush seat cushions.

• In-Cab Convenience

Secure a spot for your must-have items with a dual integrated glove box and up to 8 cup holders. Plus, charge your devices with a USB charging port.

NORTHSTAR EDITION ULTIMATE FEATURES

Elevate the ultimate off-road, in-cab experience further by upgrading to the NorthStar Edition Ultimate.

• Immersive Sound System

Elevate your day with audio, thanks to integrated JBL speakers that deliver precise audio clarity and premium sound. Enjoy AM/FM radio or connect to Bluetooth via the RIDE COMMAND infotainment system.

• Convenient Power Windows

Enjoy the convenience that comes with front-door power windows, featuring a sure-closing, tight-sealing 360° gasket seal to the vehicle.

• Control Your Coverage

Close the Pro Shield Full Glass Tip-Out Windshield for protection from the elements. Open it to experience the breeze and open-cab feel.

Capability Meets Utility

The RANGER XP 1000 NorthStar Edition makes every task easier with thoughtful innovation and toughness.

• Performance with Precision

Stay smooth and controlled on the job or trail, thanks to 3-position throttle control with different drive modes. Choose Performance for more response, Standard for normal throttle response, or Work for improved low-speed control.

• Equipped to Adapt

Adapt to the terrain with 3 driveline modes: AWD, 2WD and VersaTrac Turf. For work around the house, use VersaTrac Turf Mode to unlock the rear differential—enabling easier and tighter turns that won't tear up your lawn.

TECHNICAL DETAILS

Engine

• Engine Type:ProStar 4-Stroke Twin Cylinder DOHC
• Cylinders-Displacement (cc):999cc
• Cooling:Liquid
• Engine Power:82 HP
• Fuel System :Electronic Fuel Injection
• Electronic Power Steering :High Output EPS

Drivetrain

• Drive SystemHigh Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
• TransmissionGen 2 Automatic PVT H/L/N/R/P; Shaft
• SteeringTilt: Standard

Suspension

• Front SuspensionDual A-Arm
• Rear SuspensionDual A-Arm IRS
• Front Travel (in./cm.)10 in. (25.4 cm)
• Rear Travel (in./cm.)10 in. (25.4 cm)

Brakes

• Front braking system4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
• Rear braking system4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
• Parking BrakePark In-Transmission

Wheels & Tires

• WheelsAluminum
• Front Tire29 x 9-14; PRO ARMOR X-TERRAIN | Tire Ply Rating:8-Ply Rated
• Rear Tire29 x 11-14; PRO ARMOR X-TERRAIN | Tire Ply Rating:8-Ply Rated

Dimensions

• Bed Box Dimensions (LxWxH)36.75 x 54.25 x 12.5 in (93 x 138 x 32 cm)
• Ground Clearance14 in (36 cm)
• Overall Vehicle Size (LxWxH)152 x 65 x 79 in (386 x 165 x 201 cm)
• Wheelbase113 in (287 cm)
• Hitch/TypeStandard 2 in (5 cm) Receiver
• Turning Radius200 in (5.1 m)

Capacities

• Box Capacity600 lbs (272 kg)
• Fuel Capacity11.5 gal (43.5 L)
• Payload Capacity1,150 lb (522 kg)
• Seating Capacity6

Weights

• Estimated Dry Weight (lbs./kgs.)2,387 lbs. (1,083 kg)
• Hitch Towing Rating2,500 lb (1,134 kg)
• GVWR3750 lbs (1701 kg)

Lights and Safety

• Lighting:Dual LED Headlights, 1250lm Low Beam, 2300lm High Beam, Dual LED Tail Lights
• Features:Audio System: JBL Trail Pro 2000 | Water Fording Height: Equal to the Floorboards | Other Standard: Premium Pro-Shield Cab; Doors with Power Windows; Tip-Out Glass Windshield with Wiper; Rear Glass Panel; Factory-Installed Heat, AC, Defrost; Rearview Mirror; Premium Steering Wheel and Interior Accents; NorthStar Tailgate Badge; Front Bumper with Integrated Winch, Plow & LED Mounts; Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding; Polaris HD 4500 lb Synthetic Rope Winch with Autostop and Wireless Remote; Polaris Pulse Electrical System (6-Position) Underhood Busbar and 6-Position Roof Busbar; 12V Accessory Outlet; Battery Trickle-Charging Outlet; USB Outlet
• Cargo System :Lock & Ride®
• Instrumentation :7" Display Powered by RIDE COMMAND: Plow Mode, Group Ride, GPS Navigation, Bluetooth, AM/FM Radio; Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 2 DC Outlets, USB Charge Port, Automatic Speed Limiting in 2 mph increments starting at 16 mph to max speed.
