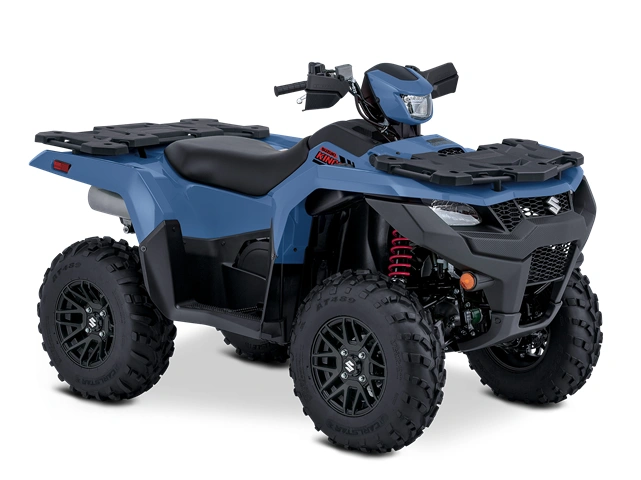

2026 Suzuki KingQuad 500 AXi Power Steering SE

2026 KingQuad 500AXi Power Steering SE

The KingQuad 500AXi Power Steering SE is not just an ATV, it's a KingQuad ATV.

Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting and is ready for you to join its history. The KingQuad 500AXi Power Steering SE helps tackle challenging terrain with the capabilities that only a KingQuad possesses.



The powerful, 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to produce a wide powerband with strong top-end power.

The compact four-valve cylinder head has large intake valves and straight intake ports for superb cylinder charging efficiency. Screw and nut valve lash adjusters simplify maintenance.

Advanced Suzuki Fuel Injection improves throttle response and fuel efficiency while delivering power consistently across the full rev-range and improves engine starting in all conditions.

The KingQuad achieves US emissions compliance, including California models that conform to the state’s stringent evaporative emissions standard and are eligible for California off-highway vehicle (OHV) registration.



TECHNICAL DETAILS

Engine

• Engine493cc (30.1 cubic in.), 4-stroke, liquid-cooled, 4-valve, OHC single cylinder
• Bore x Stroke87.5 mm x 82.0 mm (3.40 in. x 3.20 in.)
• Compression Ratio9.9:1
• Fuel SystemSuzuki electronic fuel injection
• StarterElectric
• LubricationWet sump

Transmission

• TransmissionAutomatic variable ratio (V-belt), with high/low-range, and reverse
• ClutchDry shoe, automatic, centrifugal type
• Driven Wheels2WD, 4WD and 4WD Differential Lock
• Final DriveShaft drive.

Chassis

• Suspension FrontIndependent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
• Suspension RearIndependent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
• Brakes FrontDisc brakes, twin rotors
• Brakes RearSealed oil-bathed multi-disc
• Tires FrontAT25 x 8-12**, tubeless type x 2
• Tires RearAT25 x 10-12**, tubeless type x 2
• Fuel Tank Capacity17.5 L (4.6 US gal.)
• ColorCast Carbon

Electrical

• IgnitionElectronic ignition (transistorized)
• Headlight12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted
• Tail LightLED

Dimensions

• Overall Length2150 mm (84.6 in.)
• Overall Width1215 mm (47.8 in.)
• Overall Height1285 mm (50.6 in.)
• Wheelbase1285 mm (50.6 in.)
• Ground Clearance260 mm (10.2 in.)
• Seat Height920 mm (36.2 in.)
• Curb Weight324 kg (714 lb.), 325 kg (716 lb.) CA model
