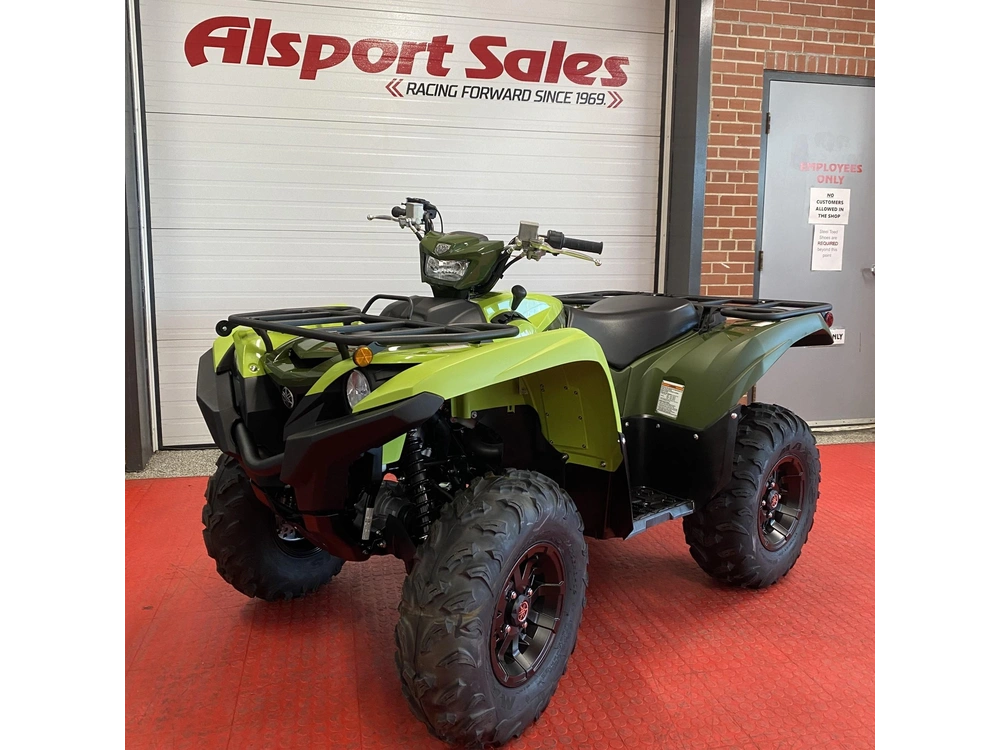

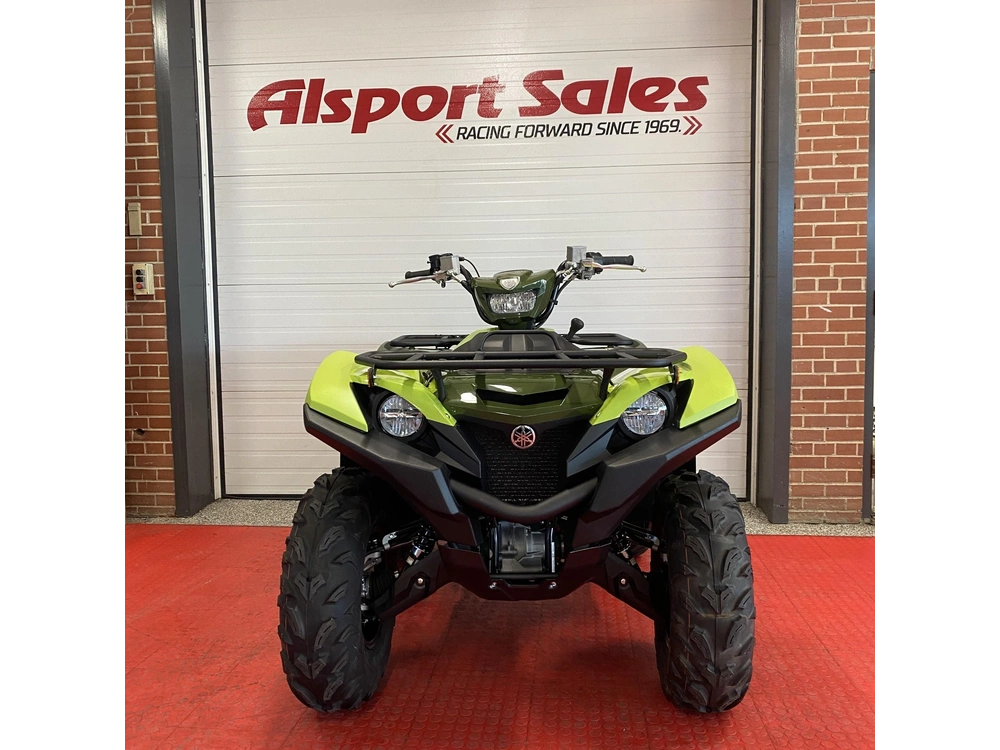

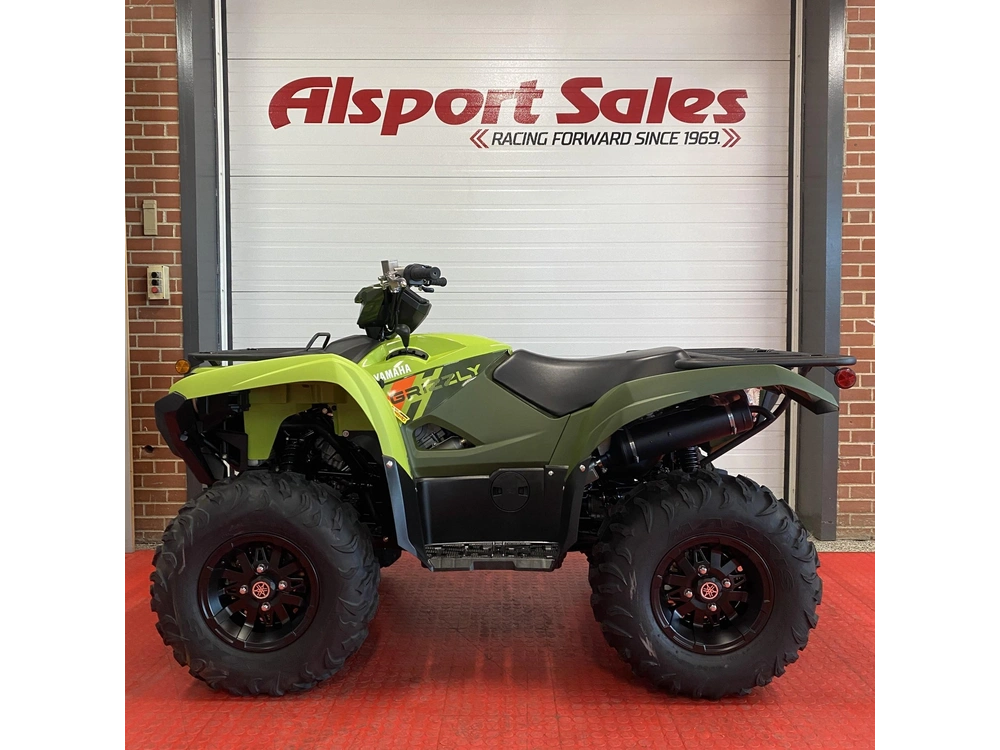

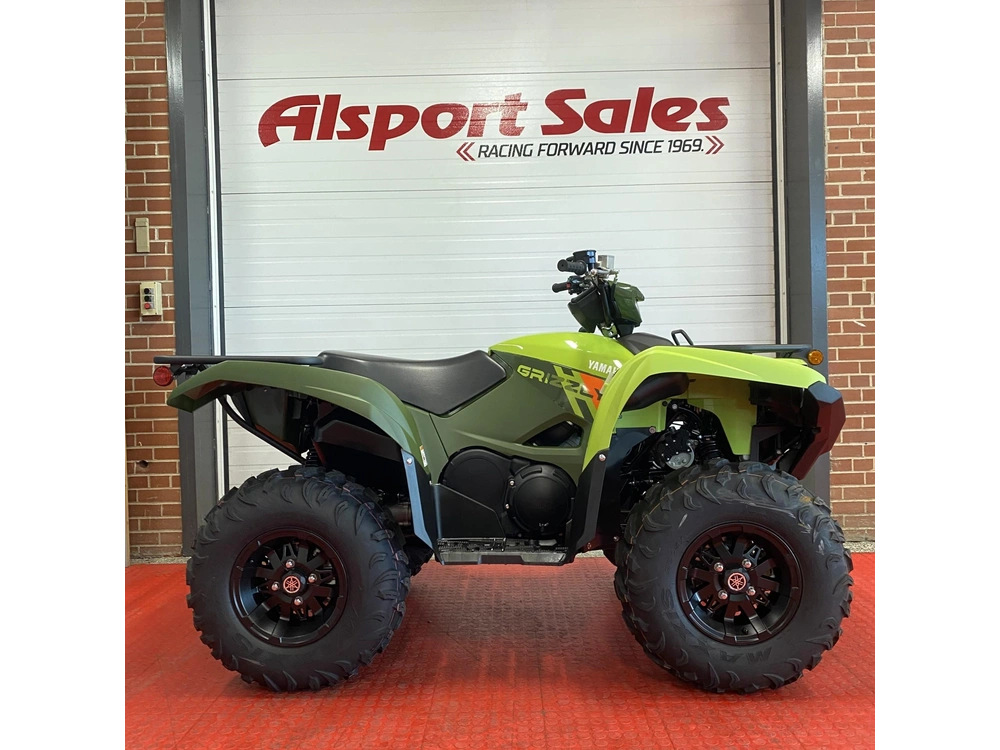

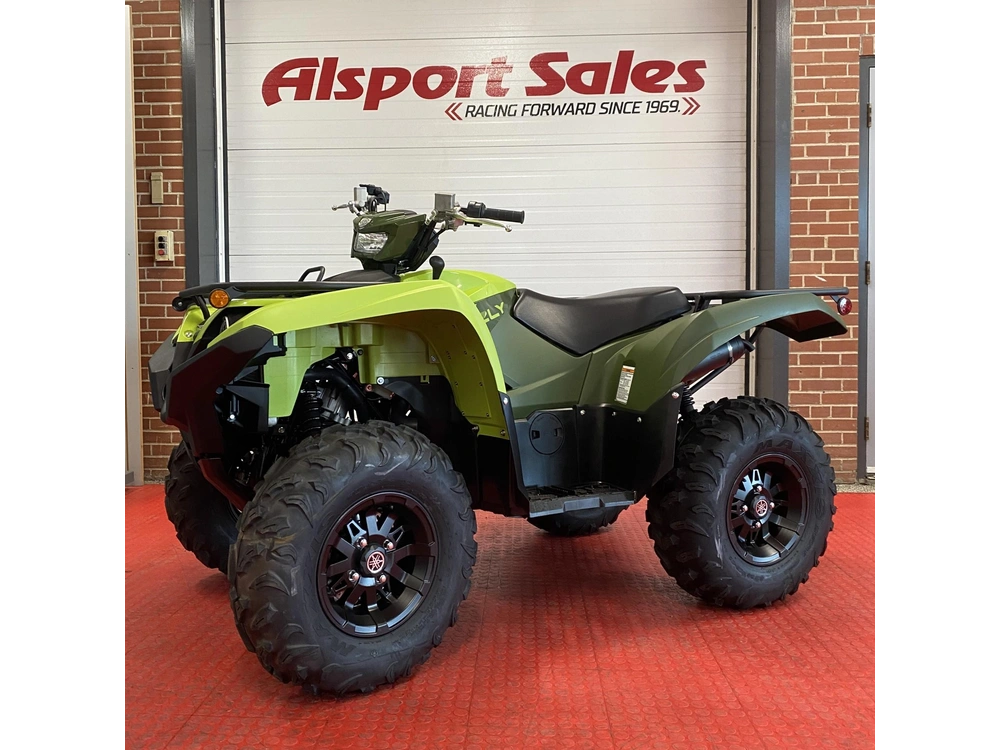

2026 Yamaha GRIZZLY EPS

2026 Yamaha Grizzly EPS

TRAIL TESTED, RIDER APPROVED. With superior capability, all-day comfort and legendary durability, the Grizzly is the best-performing ATV in its class.

CAPABILITY

The Grizzly EPS transmission uses its own cooling intake to maintain proper temperatures, an oversized belt to handle the torque of the large motor and Yamaha’s unique sprag clutch to maintain constant belt tension. The end result is a drivetrain built for years of trouble-free service that leaves the competition in the dust, and is backed by the industry's only 10-Year V-Belt Limited Warranty.

COMFORT

An independent double wishbone suspension with 7.6 inches of front wheel travel and 9.1 inches at the rear, along with nitrogen-charged shocks offering 5-way adjustable preload, combine to provide excellent rider comfort on even the most challenging trails.?

CONFIDENCE

Grizzly EPS' Ultramatic® transmission features a gated shifter, dual-range (Hi/Lo) drive plus reverse gear, and the industry's most advanced—and durable—CVT drive system. An automatic centrifugal clutch maintains constant belt tension for reduced wear, and a sprag clutch delivers natural all-wheel engine braking.

Features may include:

• Powerful 686cc engine

• Speed-sensitive electric power steering (EPS)

• On-Command® four-wheel drive system

• High Performance Ultramatic® Transmission

• Long Travel Shocks with wide-arc A-arms

• Full-length composite skid plates

• 12-inch aluminum wheels wrapped in 26-inch Maxxis® tires

SPECIFICATIONS

Engine

• Engine TypeSOHC 4-stroke
• CoolingLiquid-cooled
• Displacement686cc
• Bore102 mm
• Stroke84 mm
• Compression Ratio10 : 1
• Fuel SystemYamaha Fuel Injection (YFI), 44 mm
• IgnitionTCI
• StarterElectric
• LubricationWet sump

Drivetrain

• TransmissionUltramatic V-belt with all-wheel engine braking; H, L, N, R, P
• Final DriveOn-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft

Suspension

• Front SuspensionIndependent double wishbone; 5-way preload adjustment

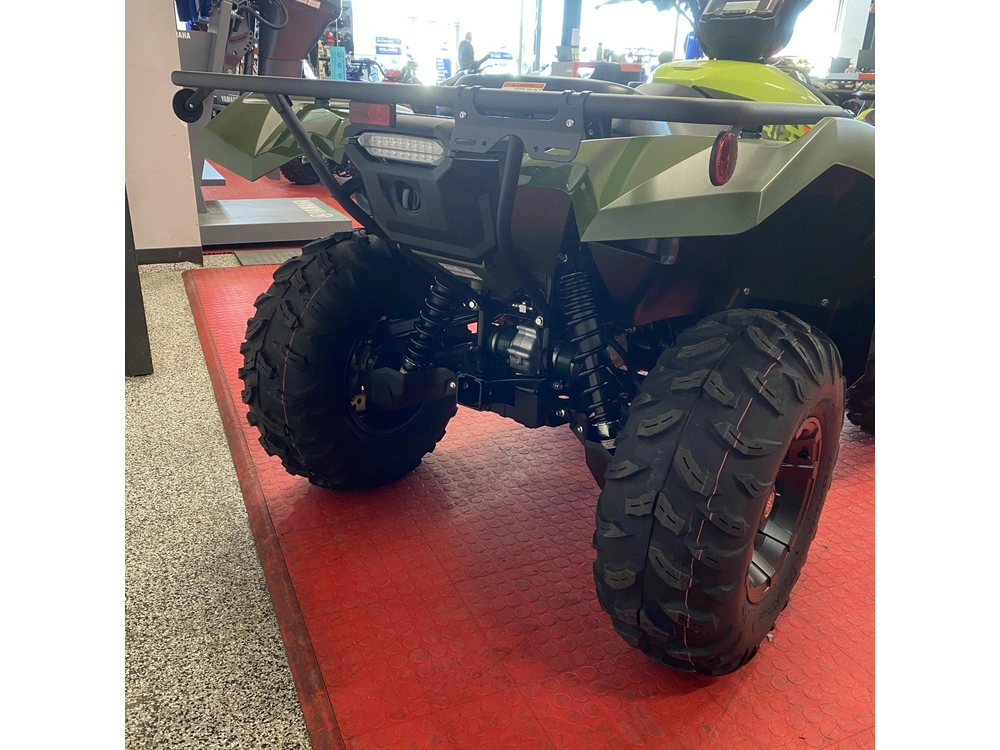

• Rear SuspensionIndependent double wishbone with anti-sway bar; 5-way preload adjustment

Brakes

• Front braking systemDual hydraulic disc
• Rear braking systemDual hydraulic disc

Wheels & Tires

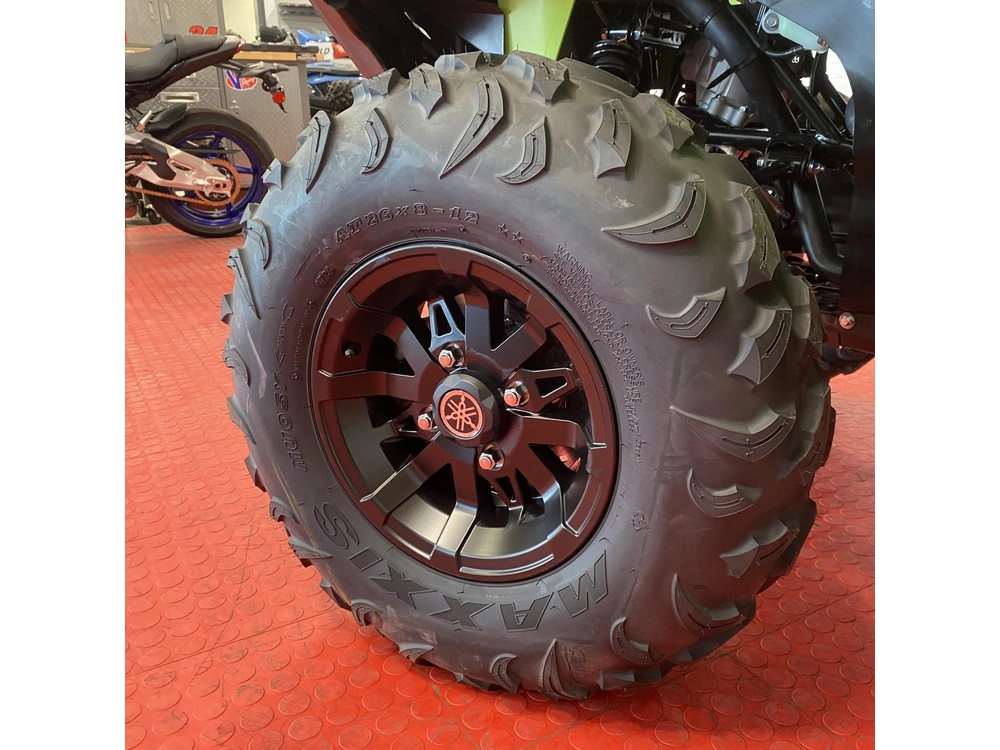

• Front TireAT26 x 8-12 Maxxis® MU05Y
• Rear TireAT26 x 10-12 Maxxis® MU06Y
• Front Wheel Travel193 mm (7.6")
• Rear Wheel Travel232 mm (9.1")

Dimensions

• Length2070 mm (81.5")
• Width1230 mm (48.4")
• Height1253 mm (49.3")
• Wheelbase1250 mm (49.2")
• Ground ClearanceMaximum: 288 mm (11.3")
• Turning Radius3708 mm (146")
• DimensionsTread (Front): 1000 mm (39.4") | Tread (Rear): 975 mm (38.4")
• Seat Height918 mm (36.1")

Capacities

• Fuel Capacity18 L

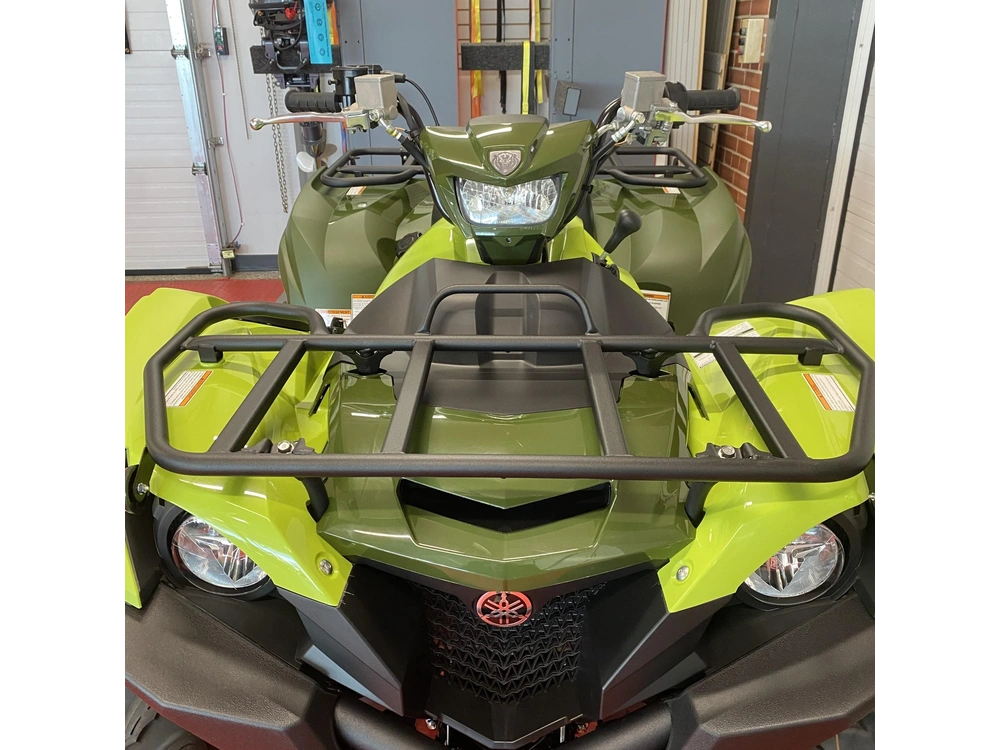

• Rack capacity, front50 kg (110 lb)

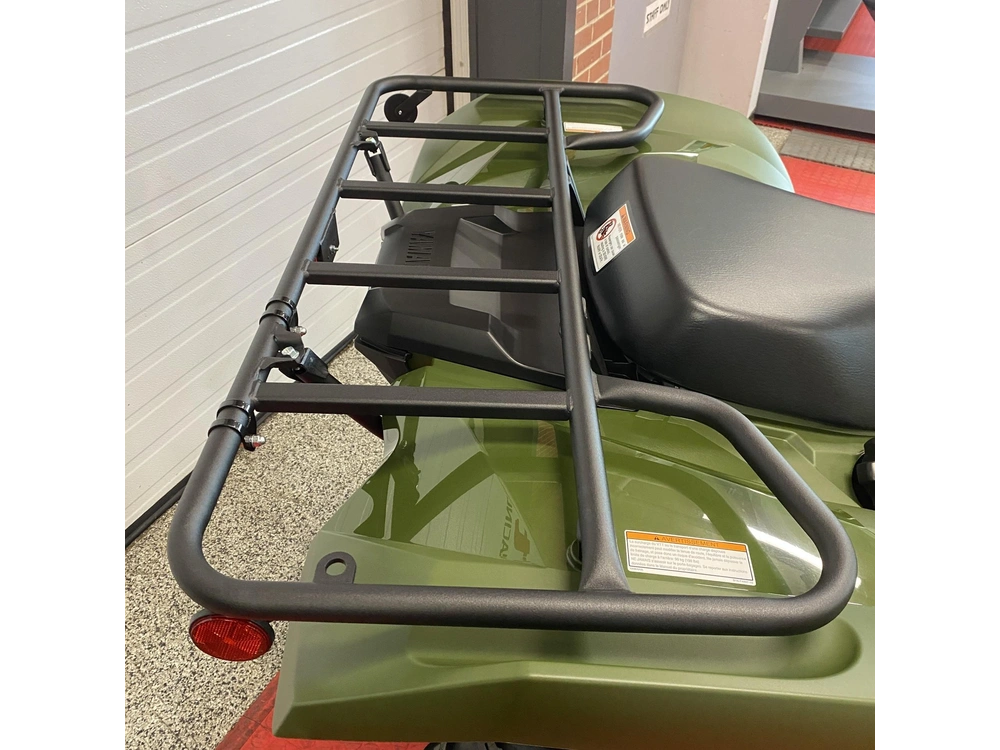

• Rack capacity, rear90 kg (198 lb)
• Towing Capacity600 kg (1,322 lb)

Weights

• WeightWet: 318 kg (701 lb)
