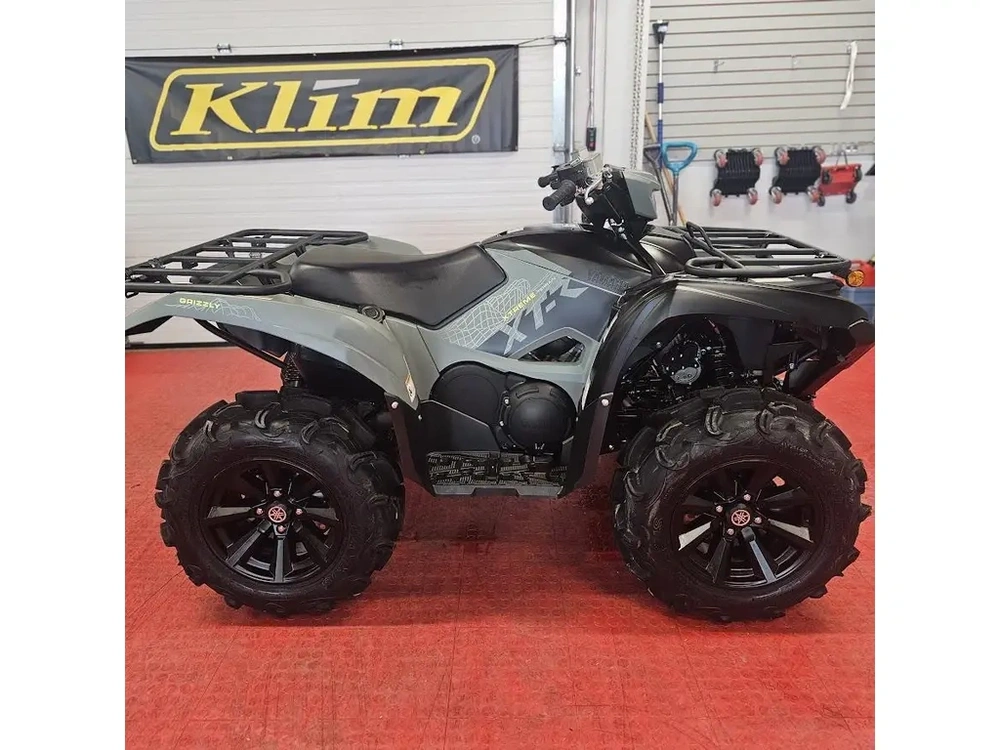

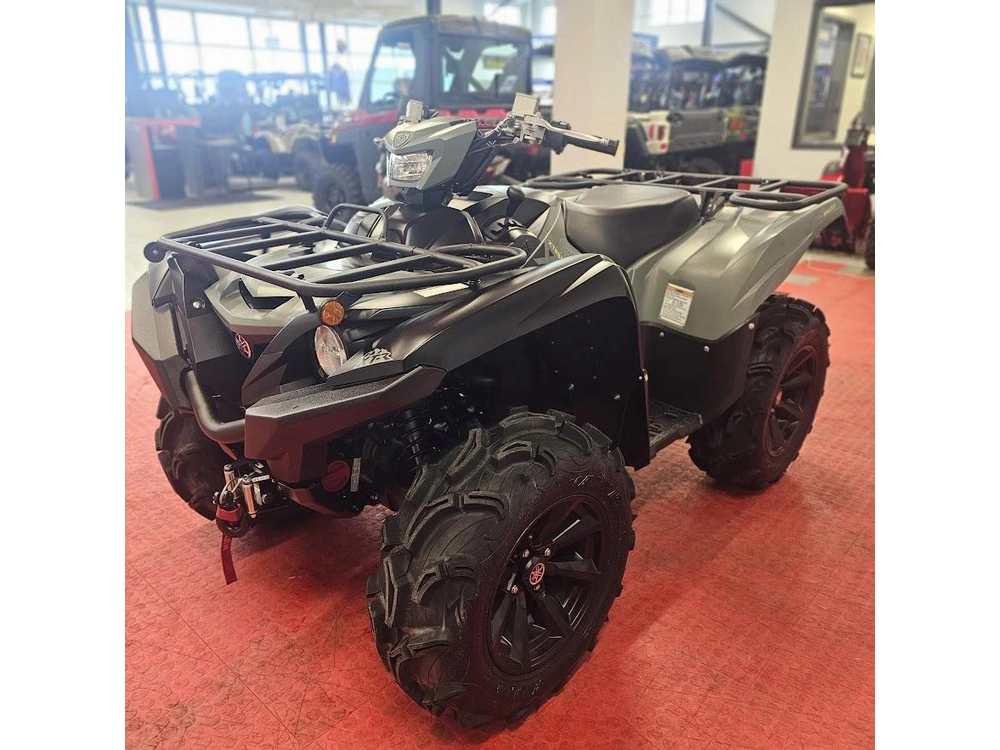

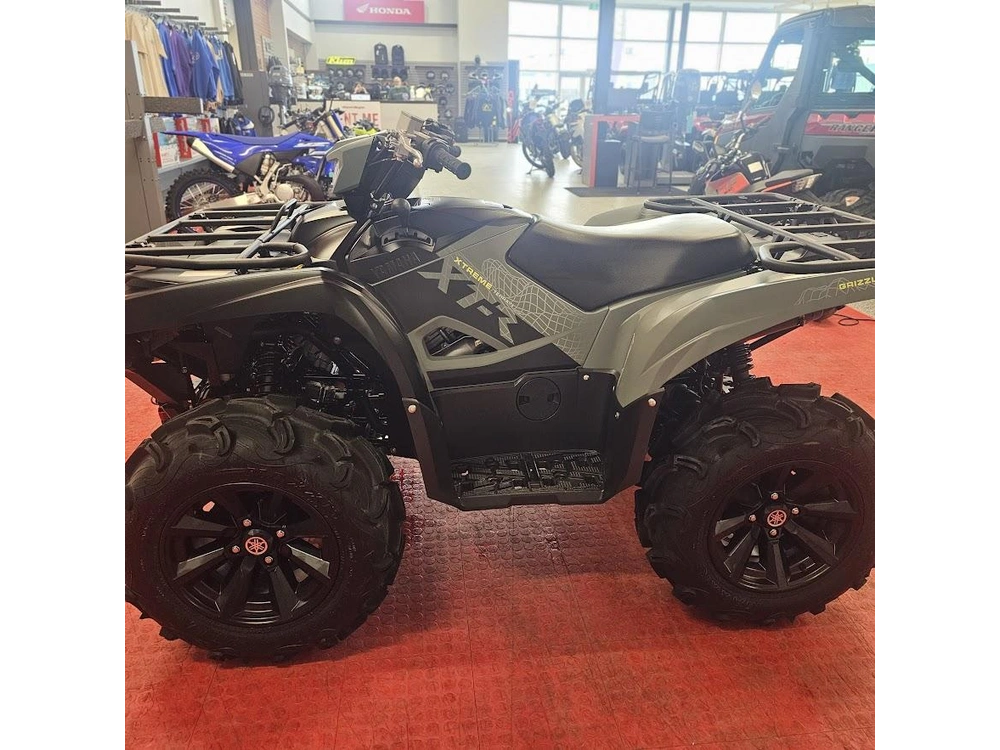

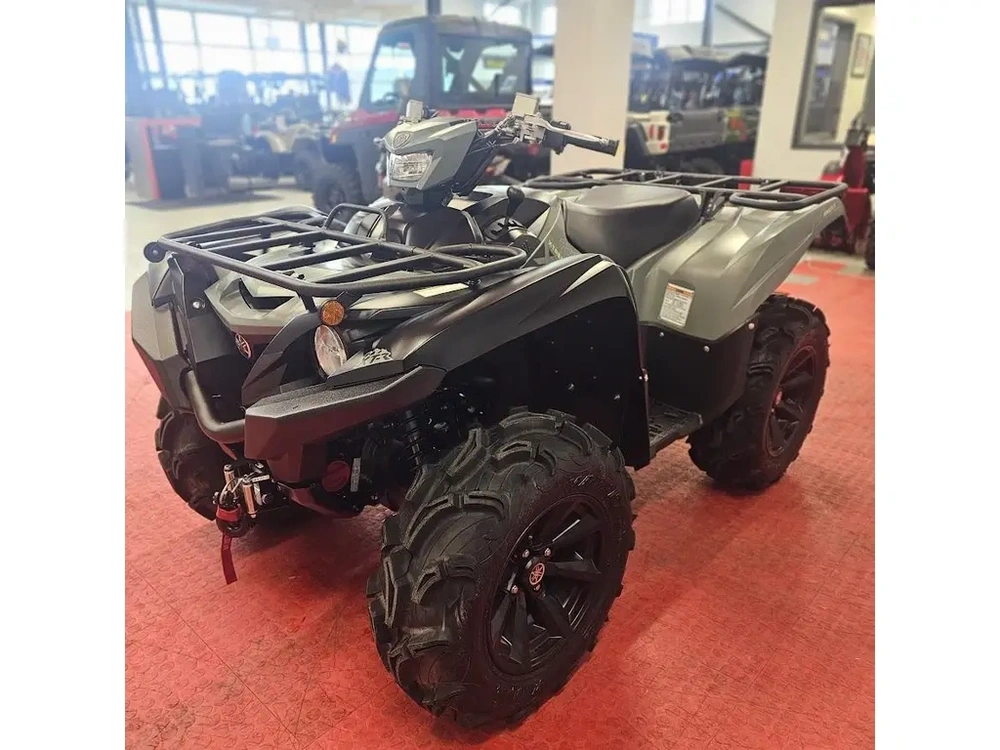

2026 Yamaha GRIZZLY EPS XT- R

2026 Grizzly EPS XT-R

ULTIMATE ADVENTURE SEEKER. The Grizzly XT-R further enhances rugged terrain capability and confidence with 27-inch Maxxis® 'Zilla tires, 14-inch aluminum wheels, factory-installed WARN® VRX 25 winch and high-quality painted bodywork.

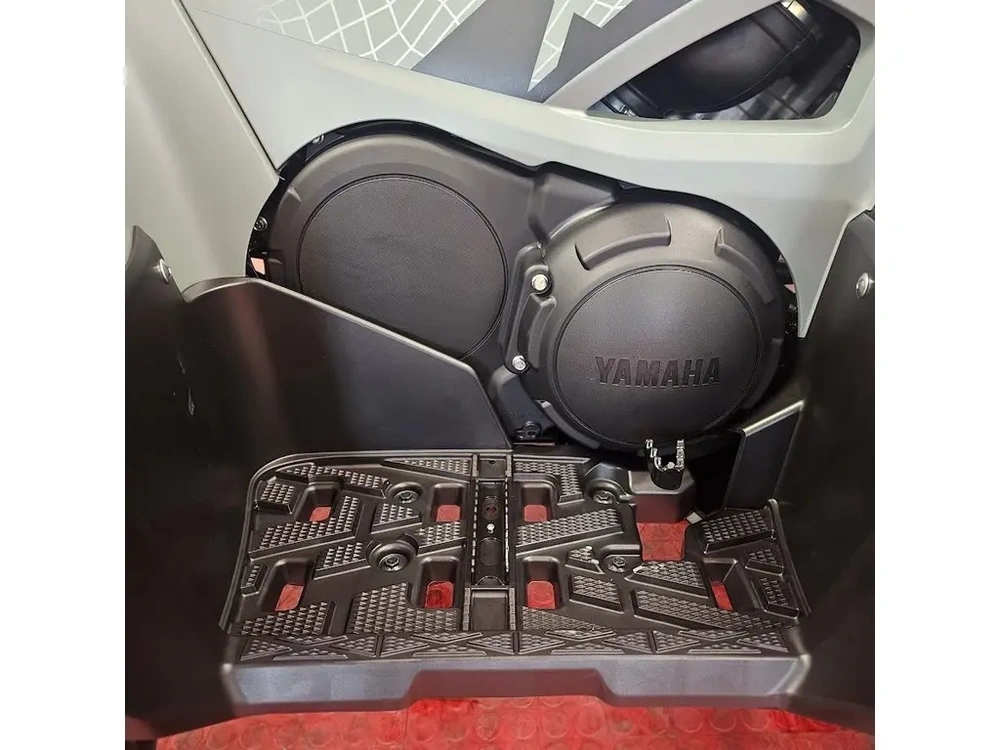

The Grizzly EPS transmission uses its own cooling intake to maintain proper temperatures, an oversized belt to handle the torque of the large motor and Yamaha’s unique sprag clutch to maintain constant belt tension. The end result is a drivetrain built for years of trouble-free service that leaves the competition in the dust, and is backed by the industry's only 10-Year V-Belt Limited Warranty.

CAPABILITY

For the trail rider looking for excitement in every ride, the ideal engine should balance strong big-bore power with immediate, responsive midrange. The Grizzly EPS XT-R features a potent 686cc engine with power delivery, torque and engine character all optimized for recreational riding.

COMFORT

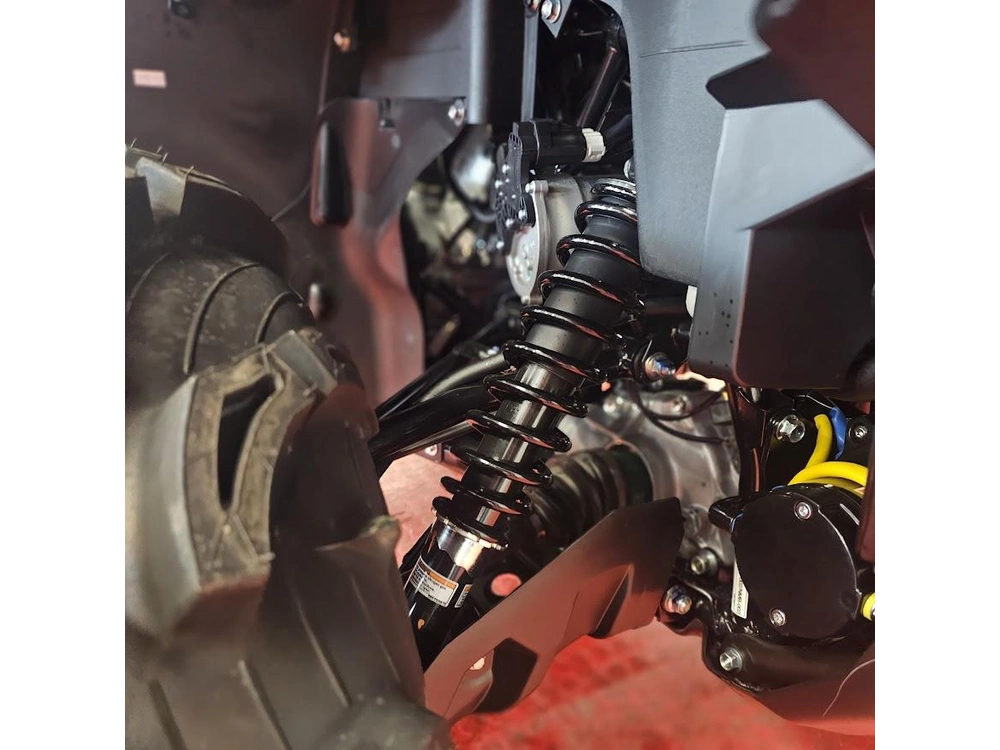

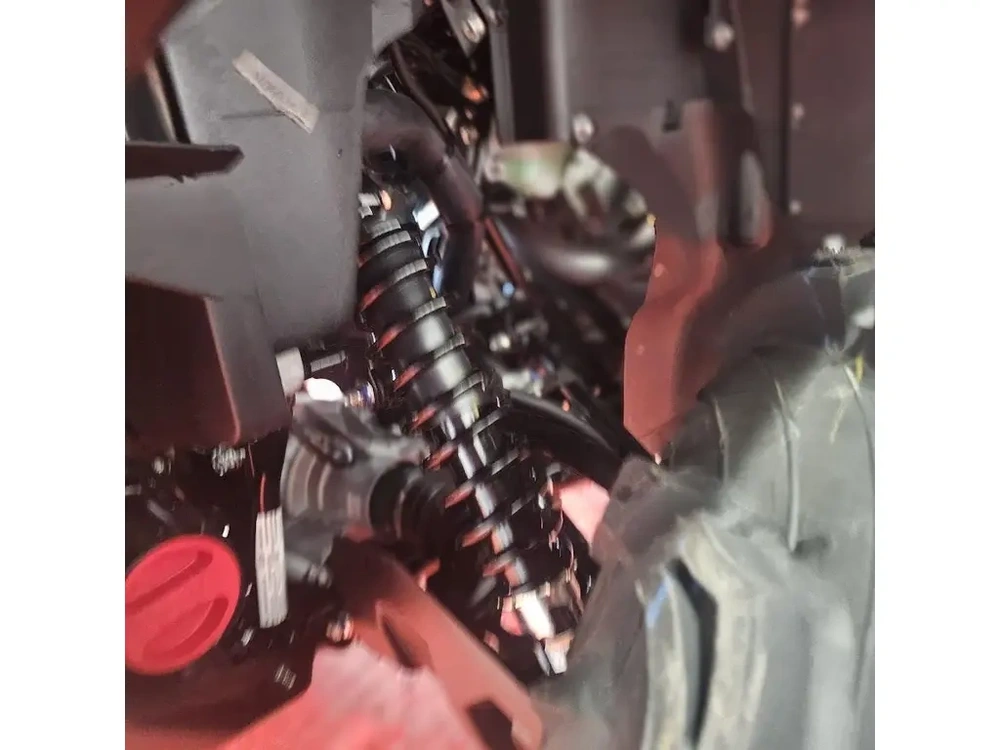

An independent double wishbone suspension with 7.6 inches of front wheel travel and 9.1 inches at the rear, along with nitrogen-charged shocks offering 5-way adjustable preload, combine to provide excellent rider comfort on even the most challenging trails.?

CONFIDENCE

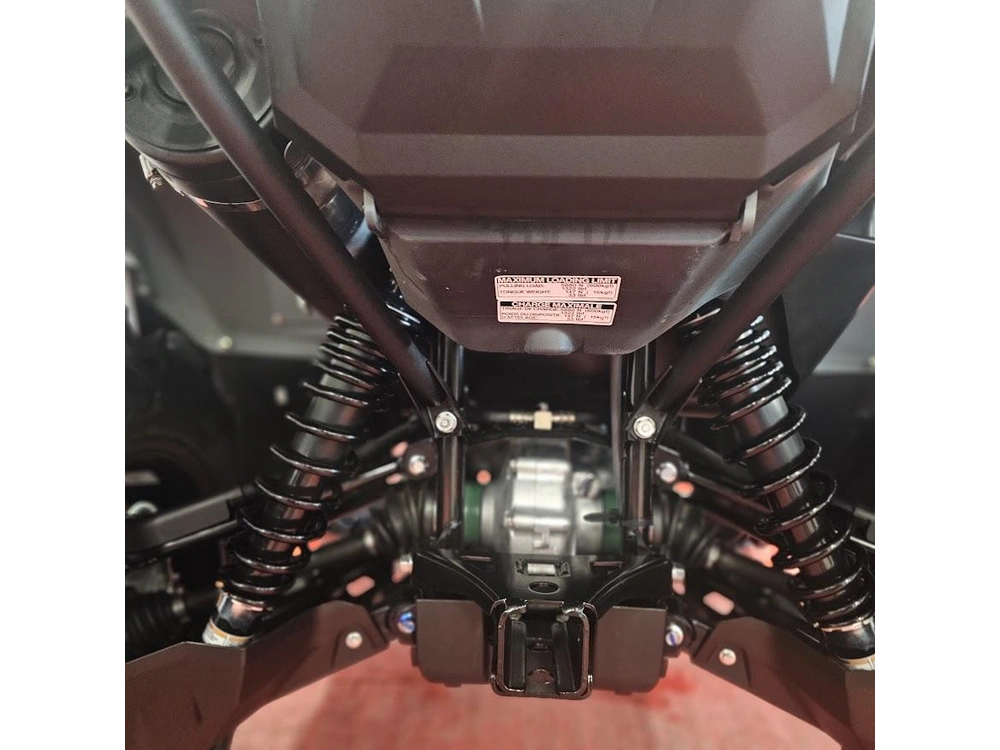

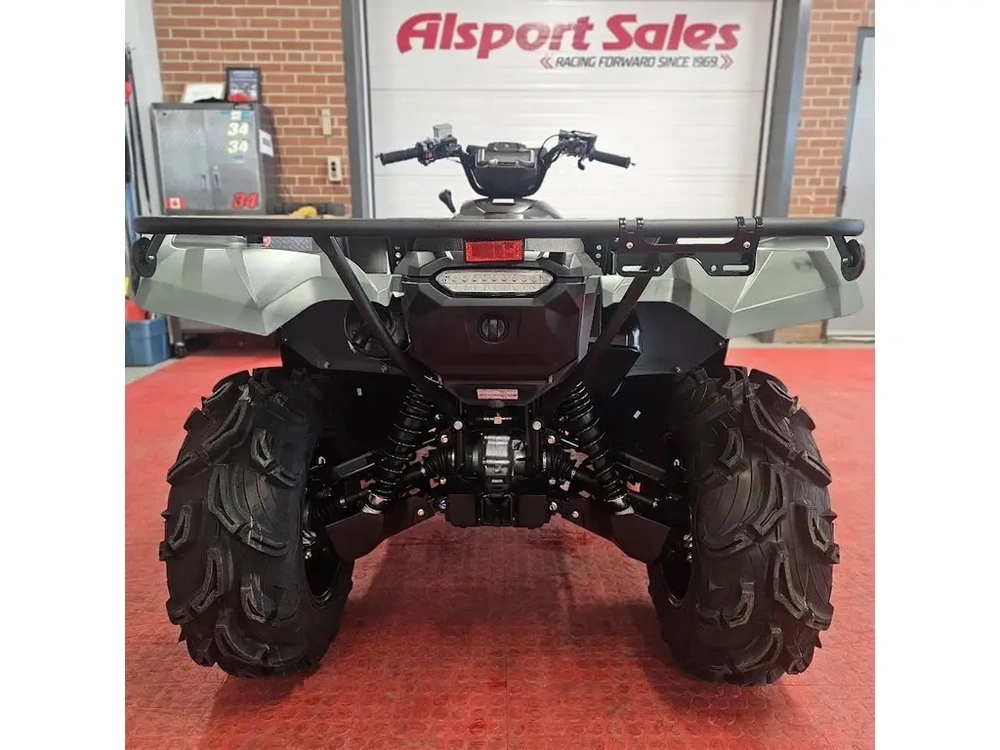

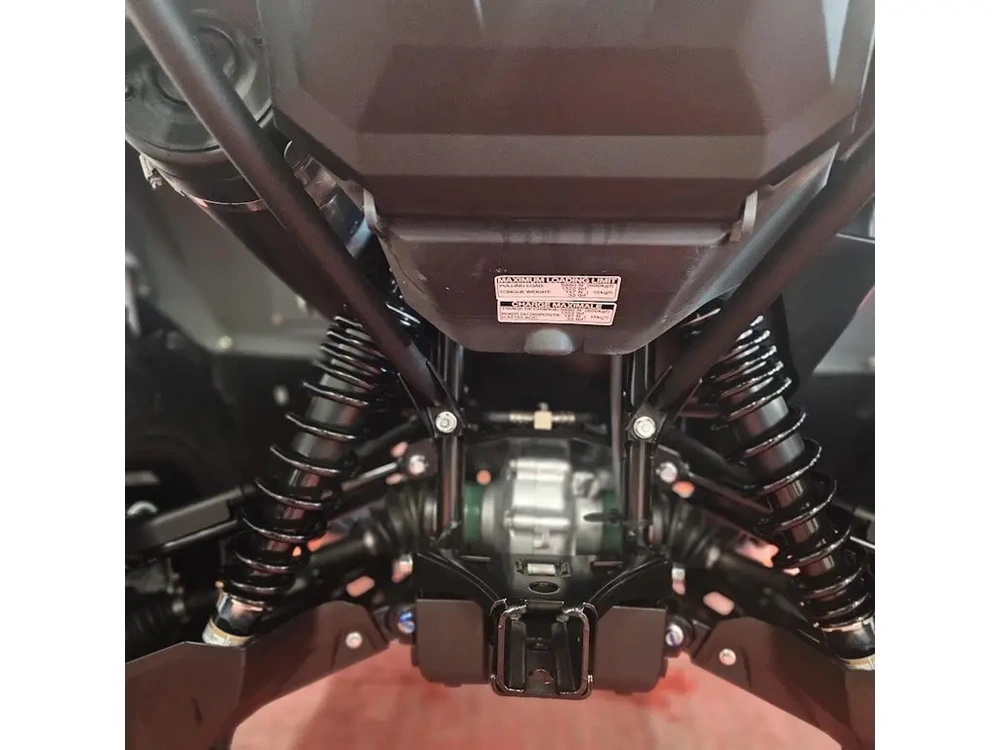

Center-mounted, heavy-duty 2-inch receiver comes standard on Grizzly EPS XT-R and can tow up to 1,300 pounds.

Features may include:

• Powerful 686cc engine

• Speed-sensitive electric power steering (EPS)

• On-Command® four-wheel drive system

• High Performance Ultramatic® Transmission

• Long Travel Shocks with wide-arc A-arms

• Full-body skid plates

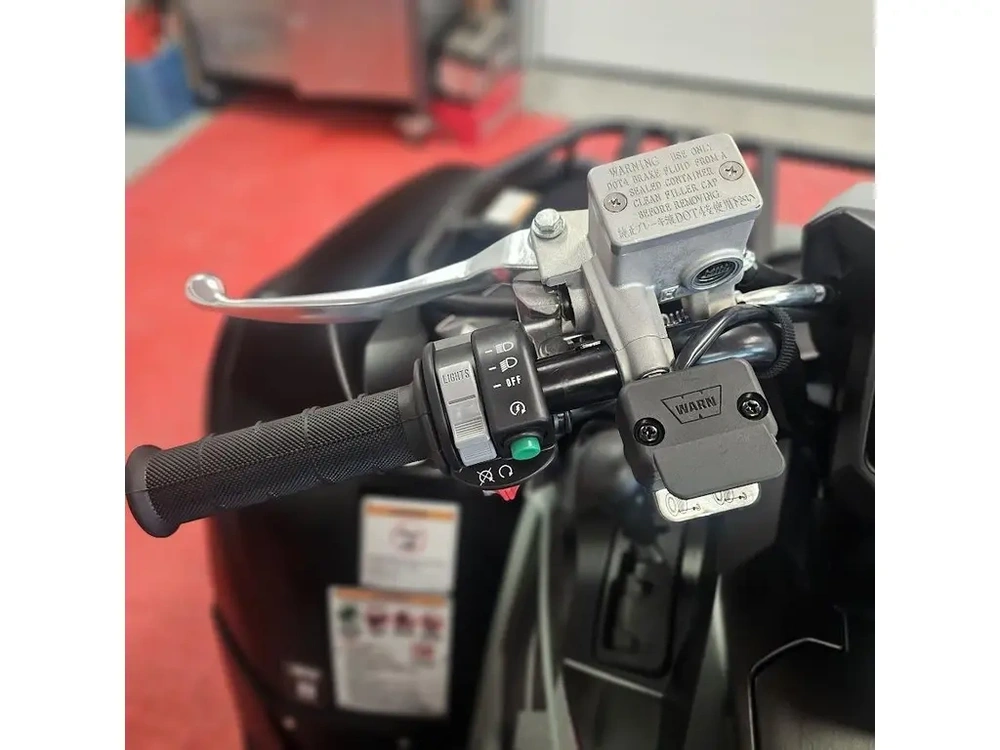

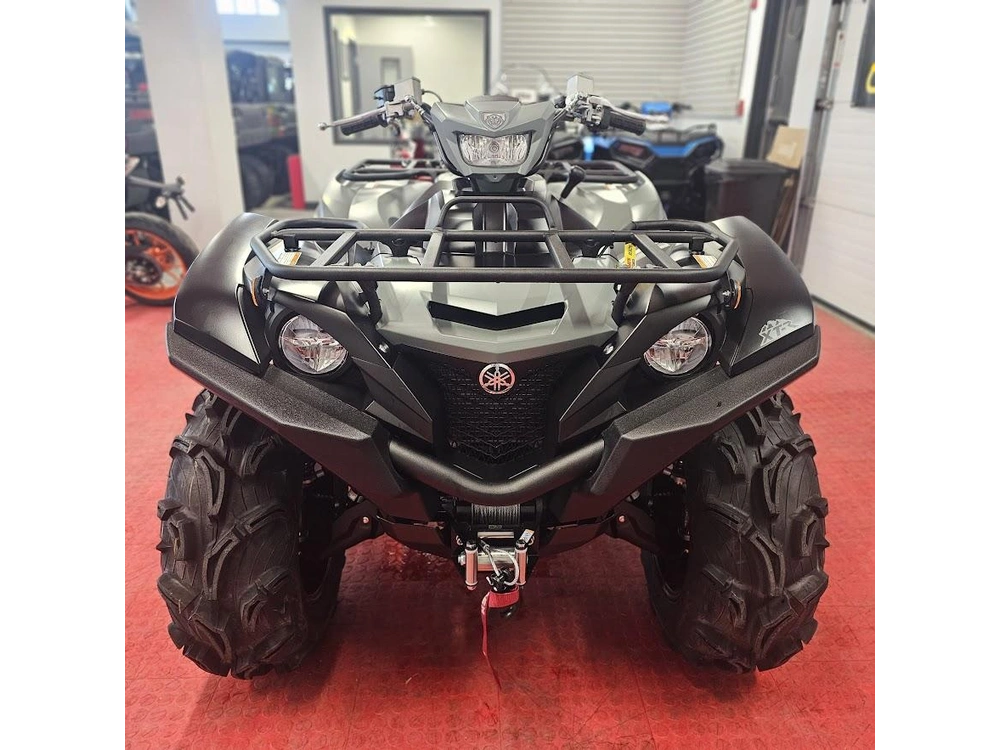

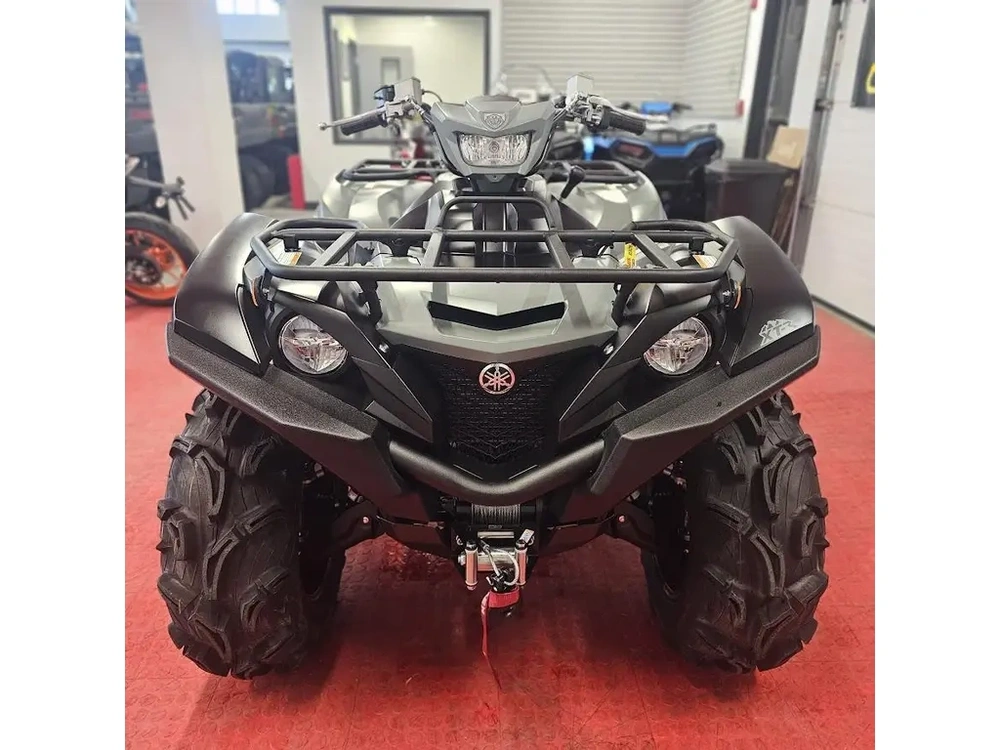

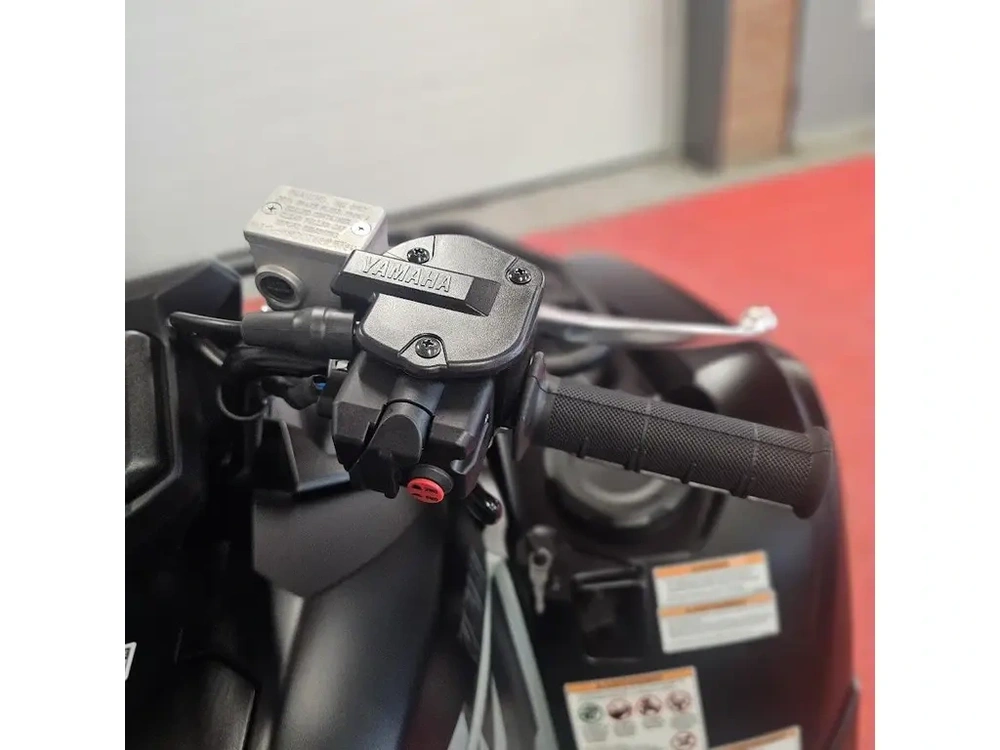

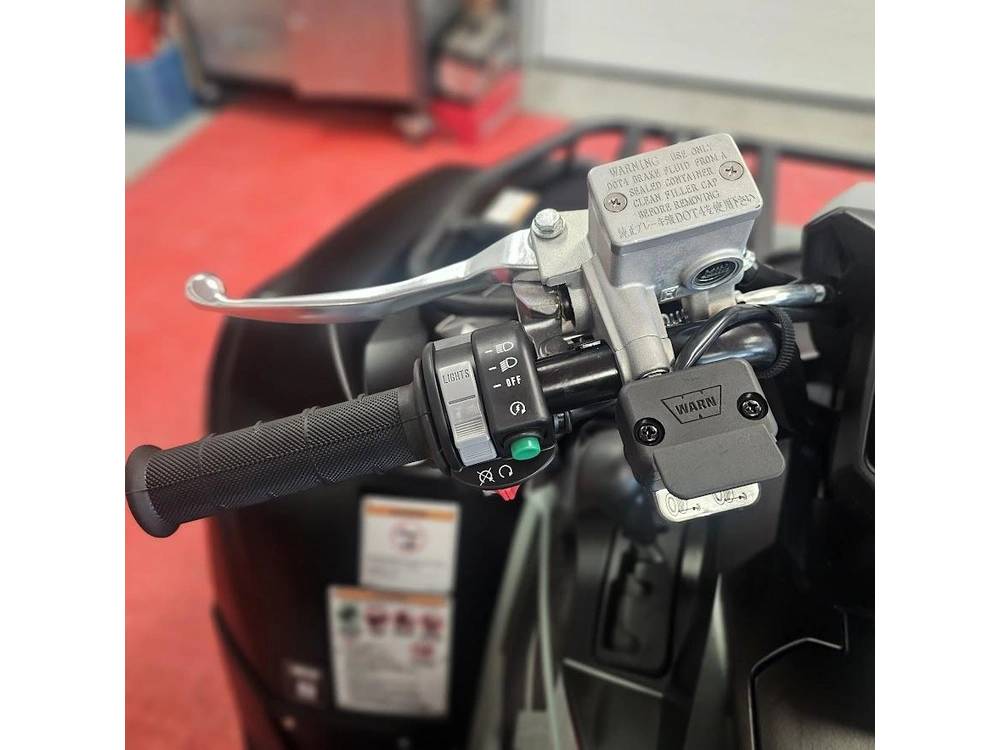

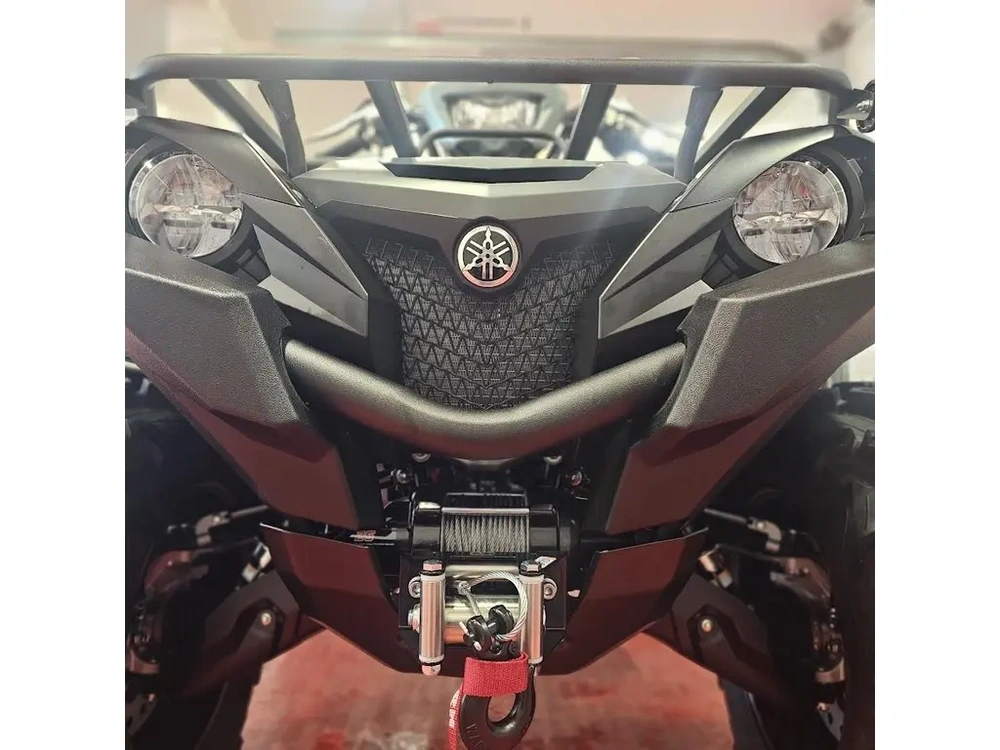

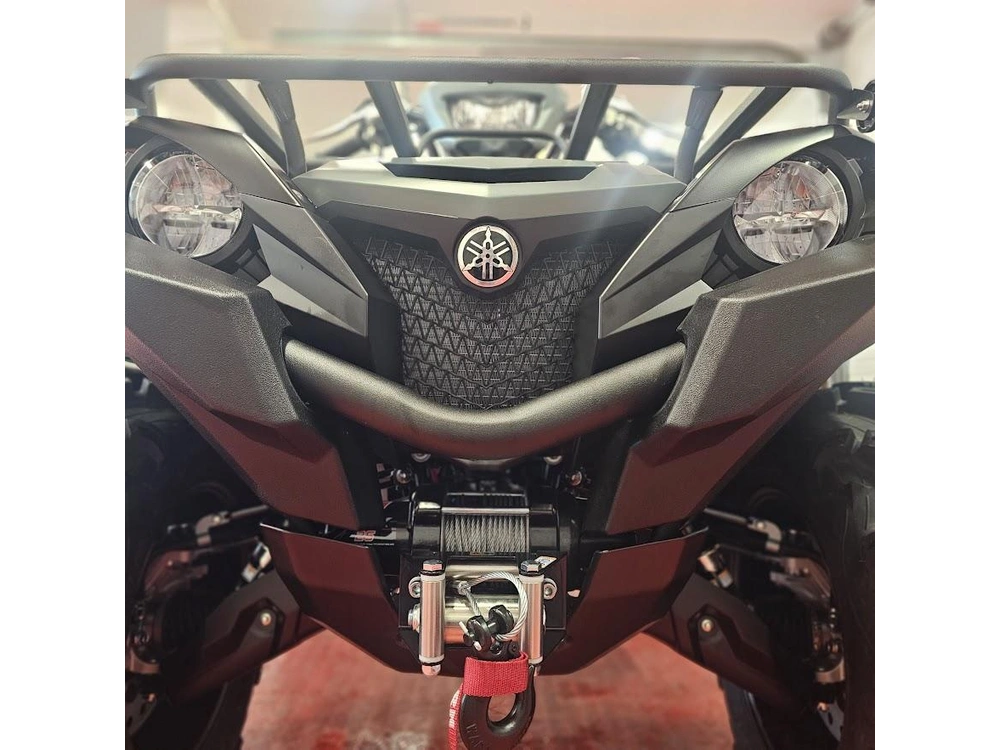

• 2,500 lb Warn® VRX winch

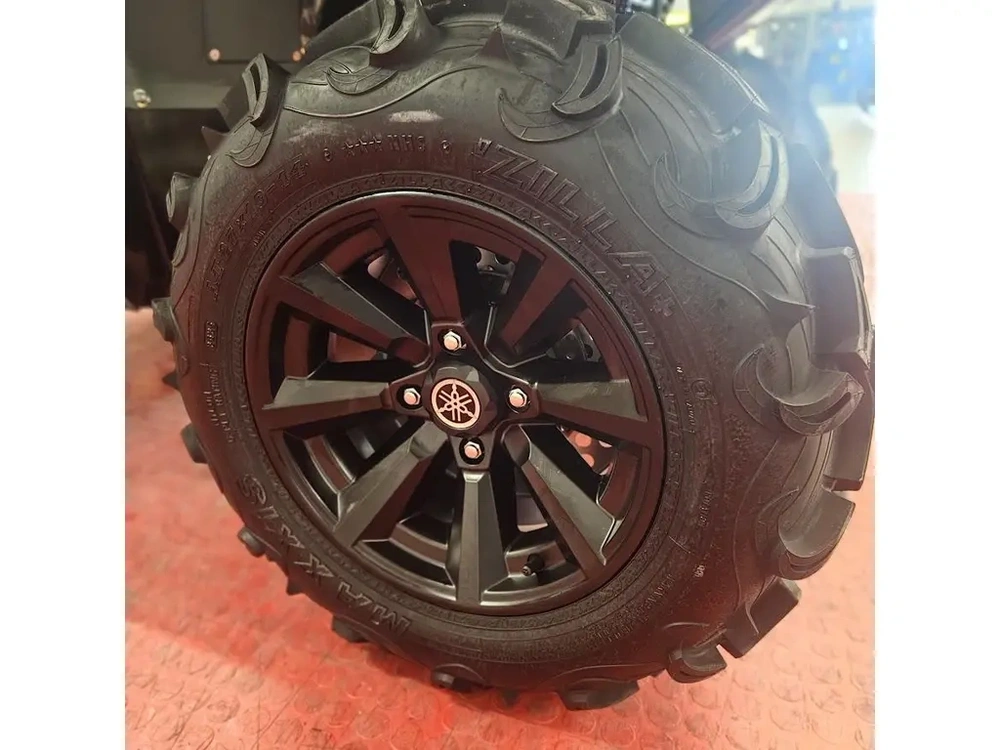

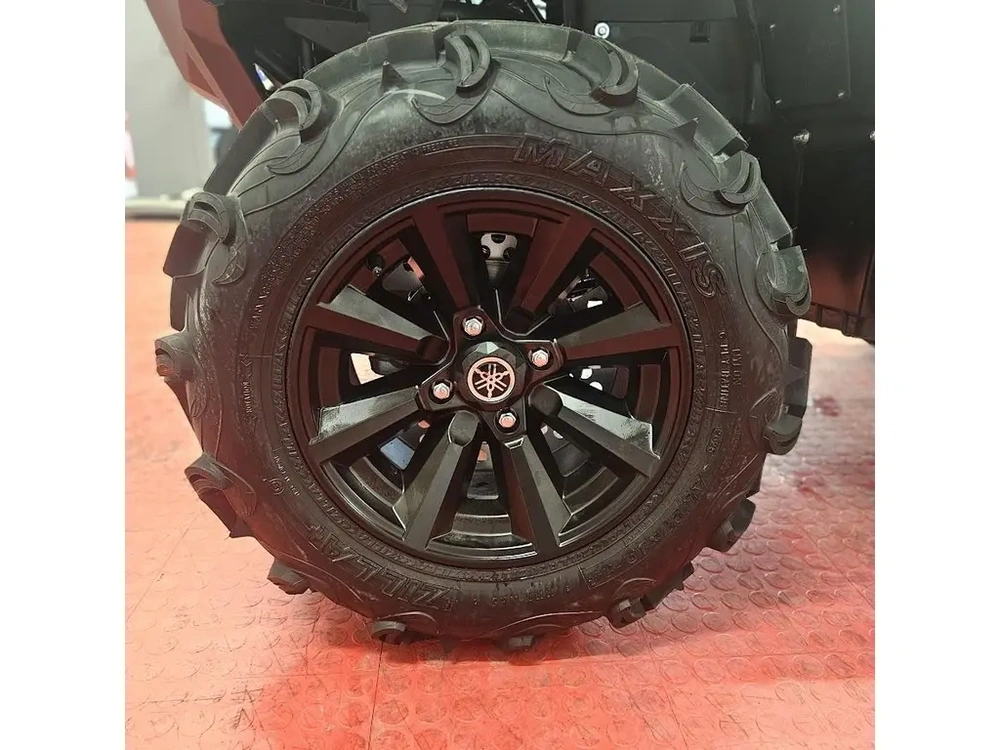

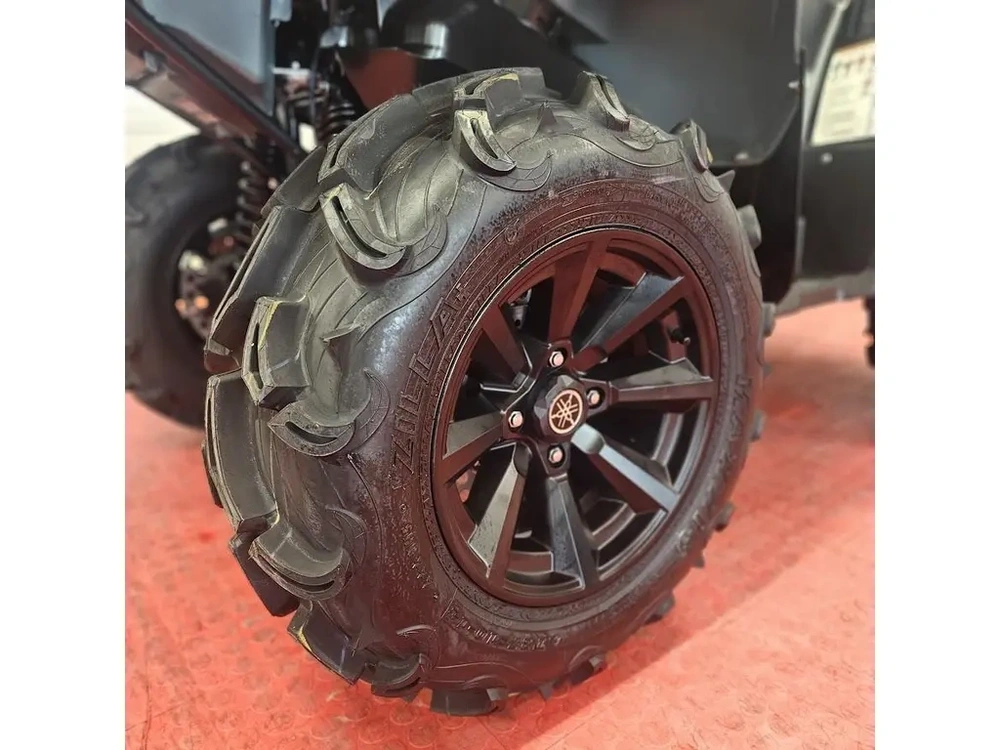

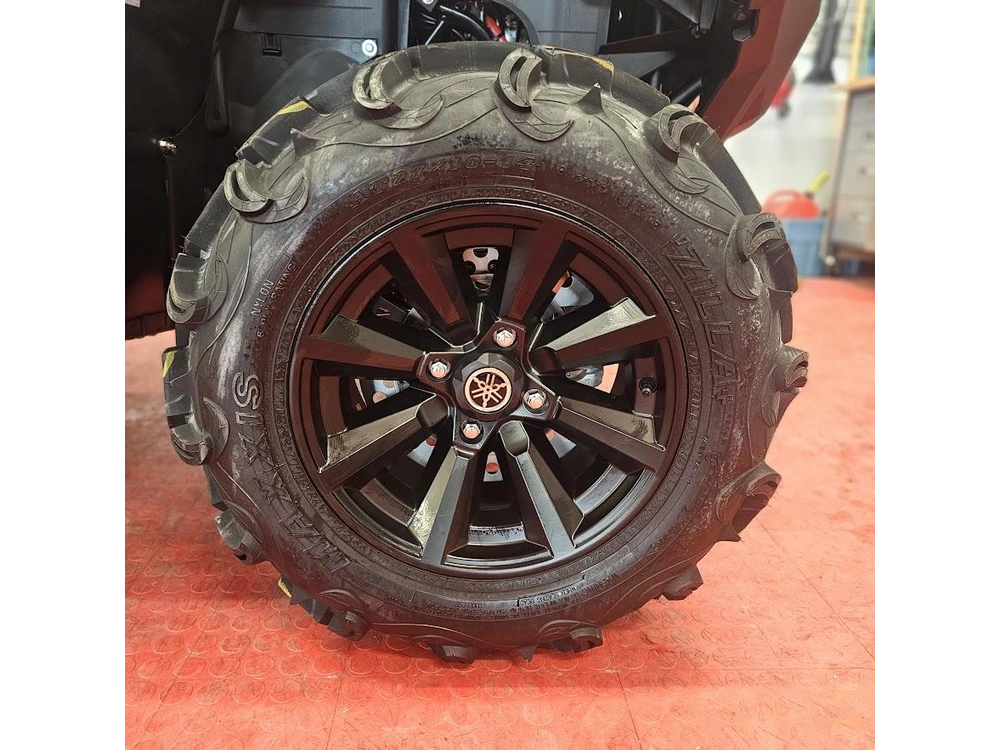

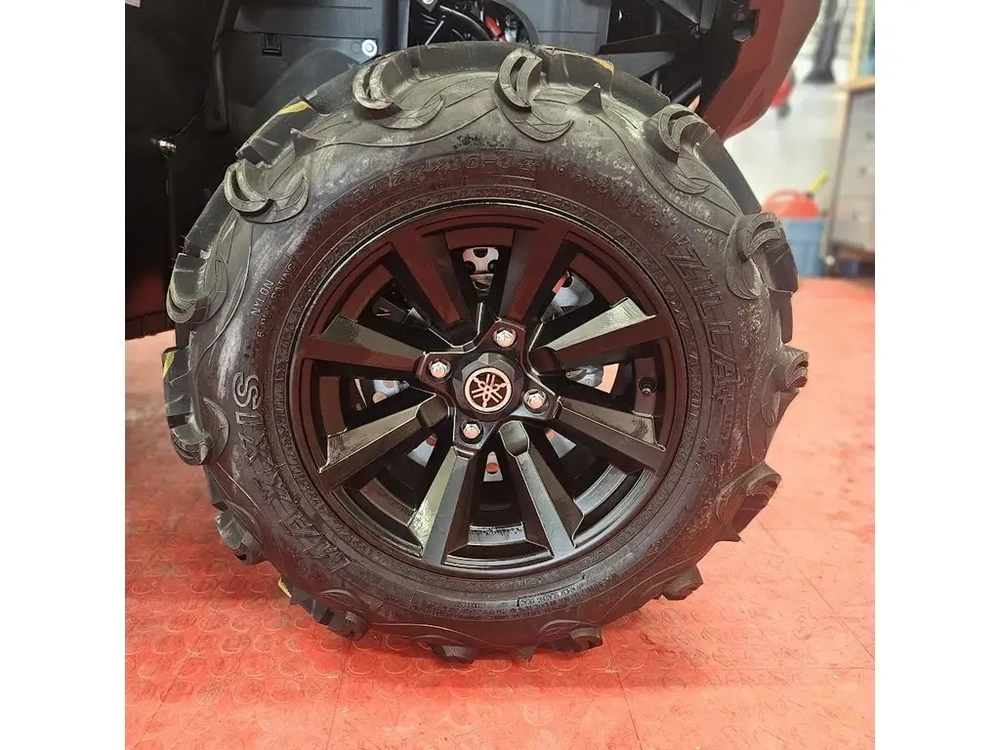

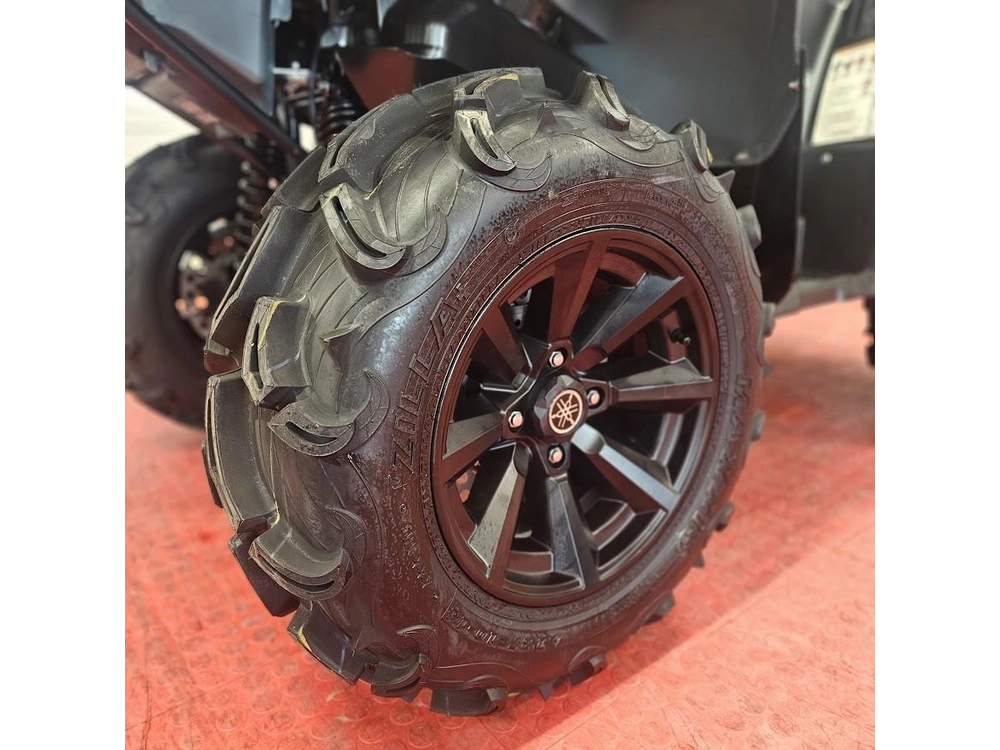

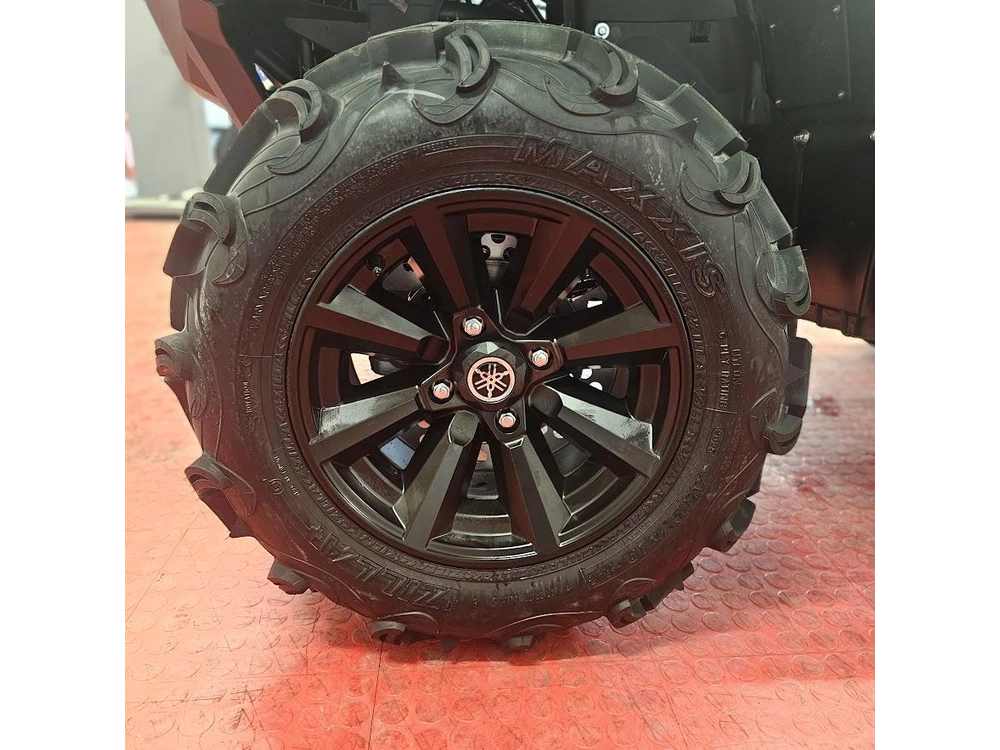

• 14-inch aluminum wheels wrapped in 27-inch Maxxis® Zilla tires

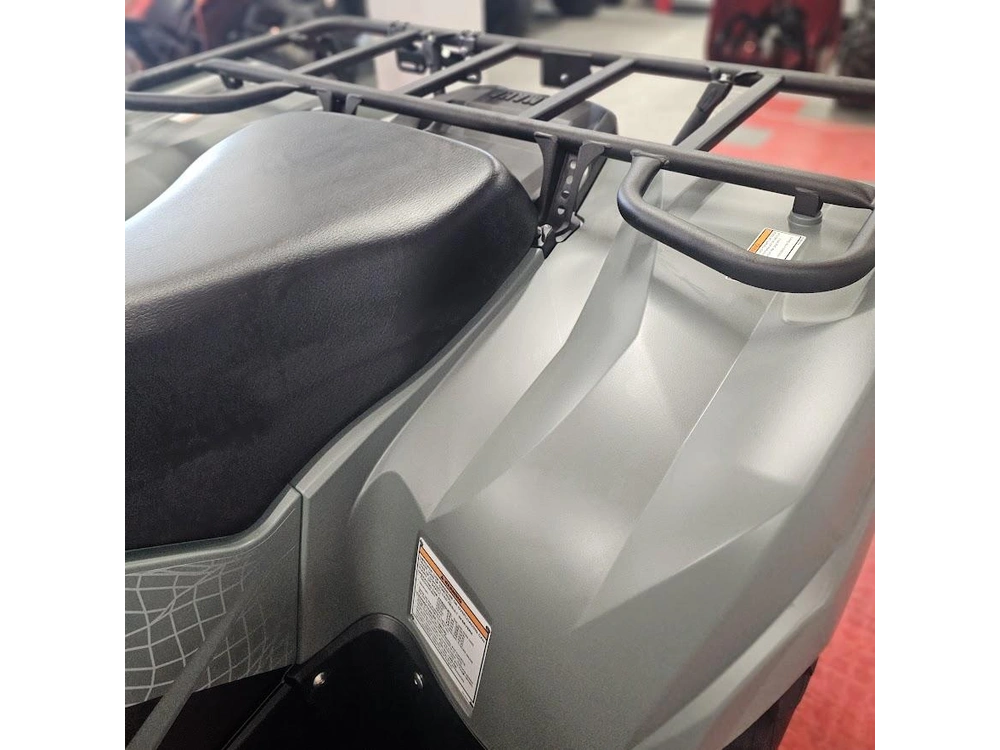

• High-quality painted bodywork



TECHNICAL DETAILS

Engine

• Engine TypeSOHC 4-stroke
• CoolingLiquid-cooled
• Displacement686cc
• Bore102 mm
• Stroke84 mm
• Compression Ratio10 : 1
• Fuel SystemYamaha Fuel Injection (YFI), 44 mm
• IgnitionTCI
• StarterElectric
• LubricationWet sump

Drivetrain

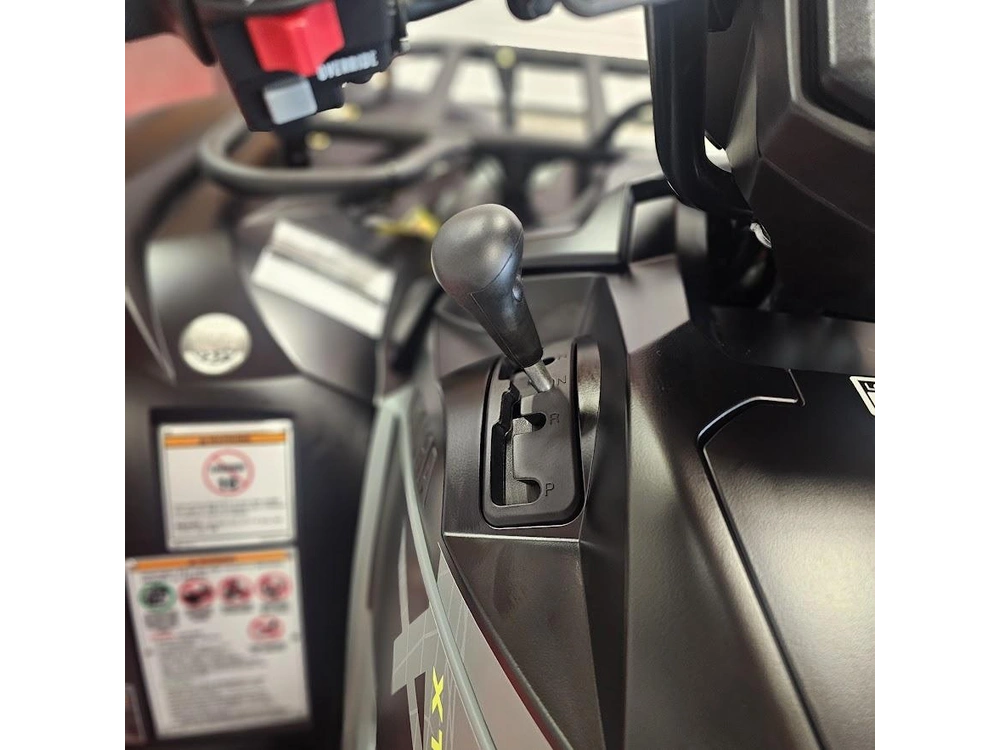

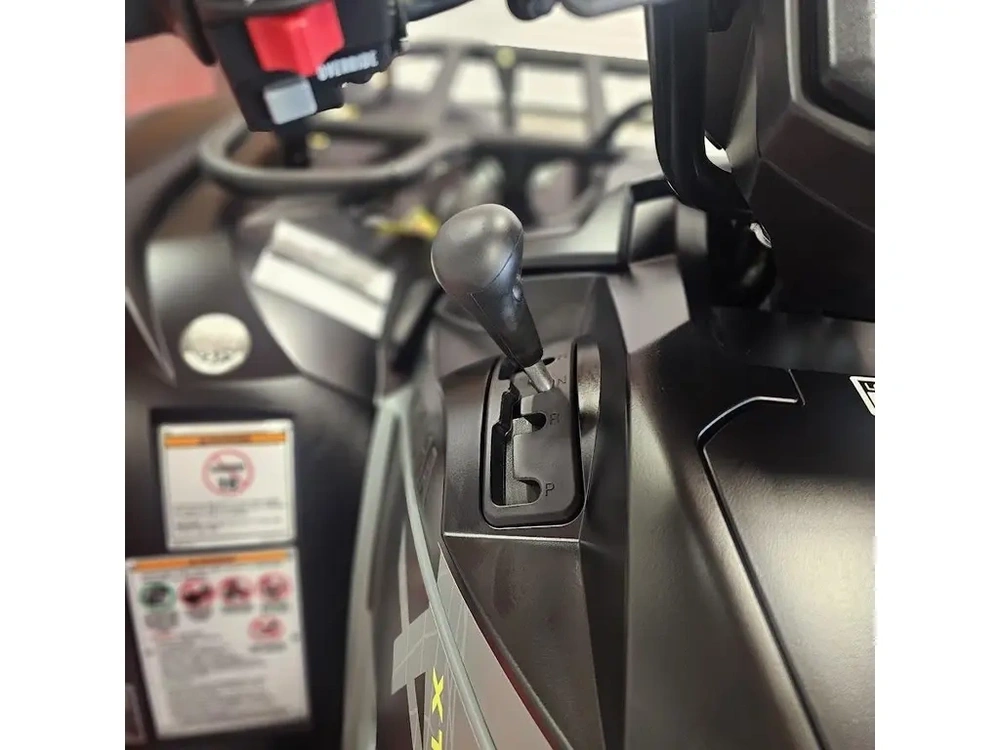

• TransmissionUltramatic V-belt with all-wheel engine braking; H, L, N, R, P
• Final DriveOn-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft

Suspension

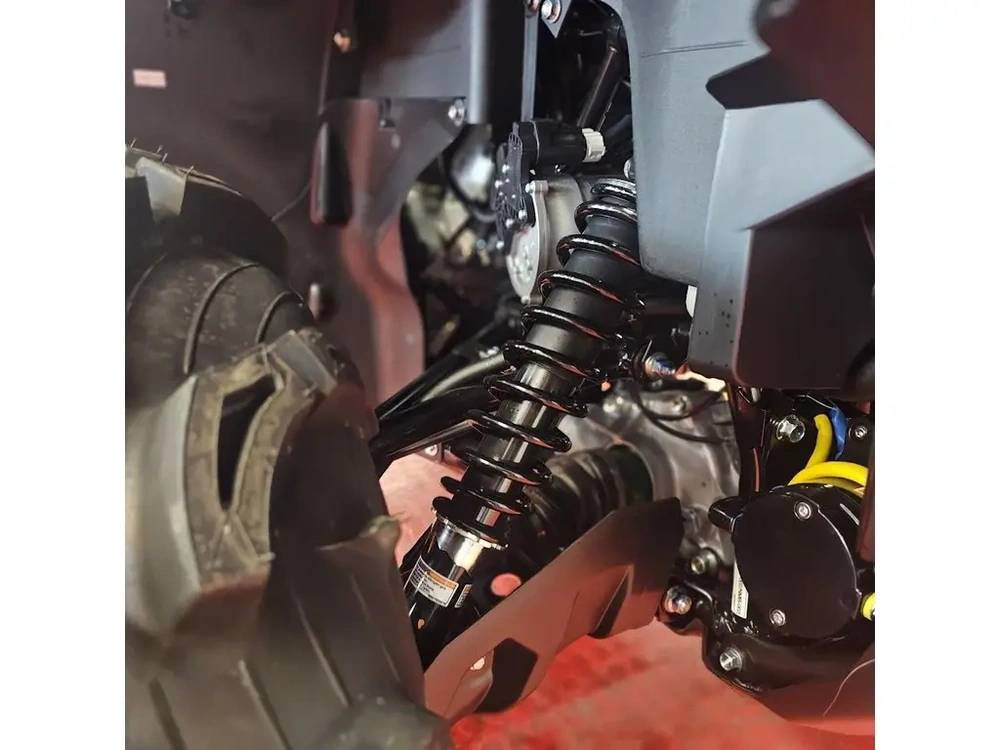

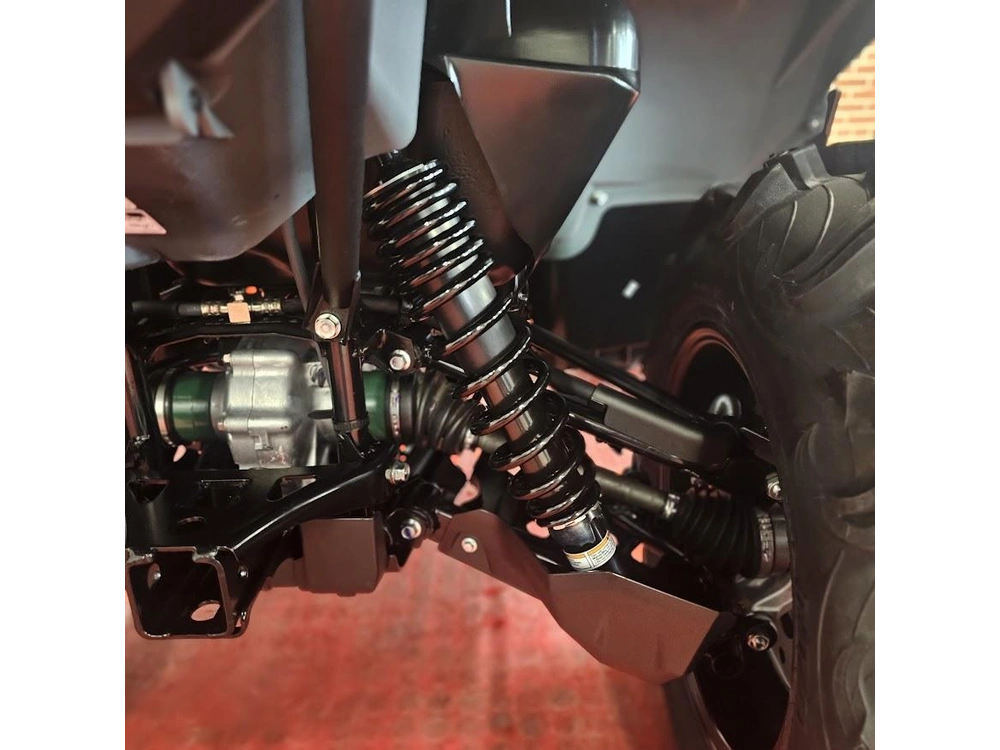

• Front SuspensionIndependent double wishbone; 5-way preload adjustment

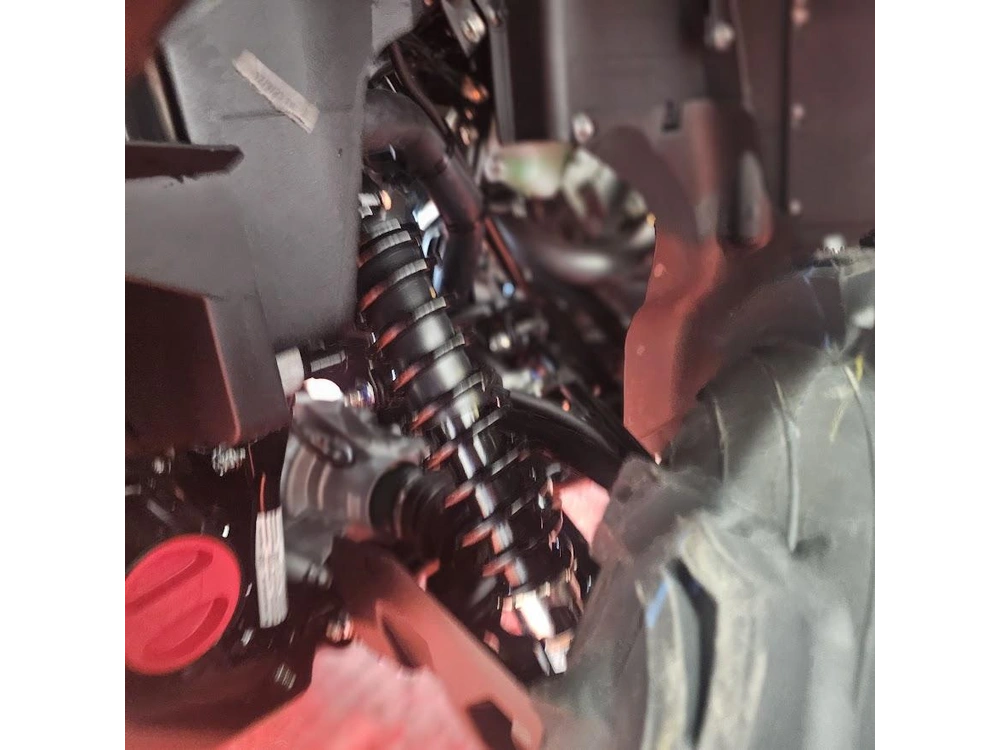

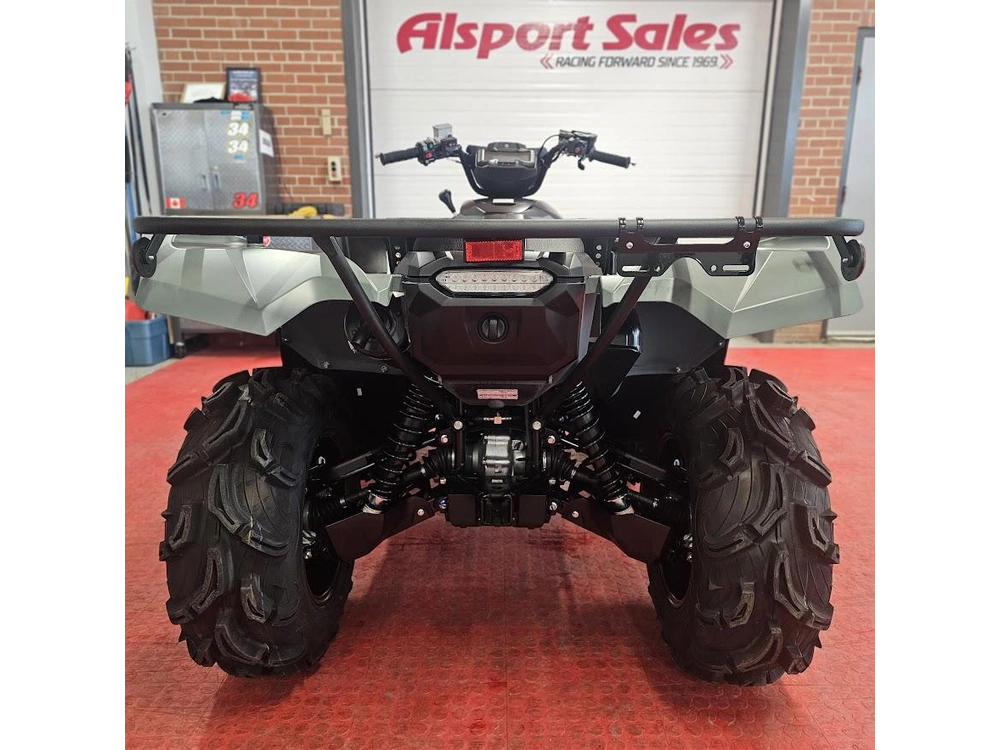

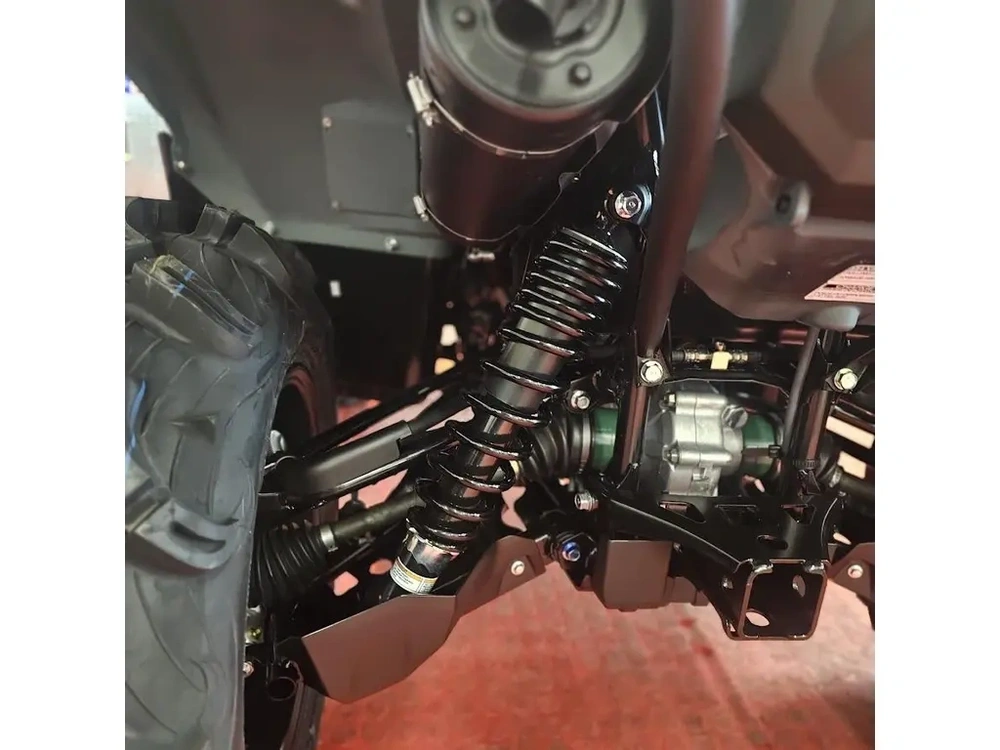

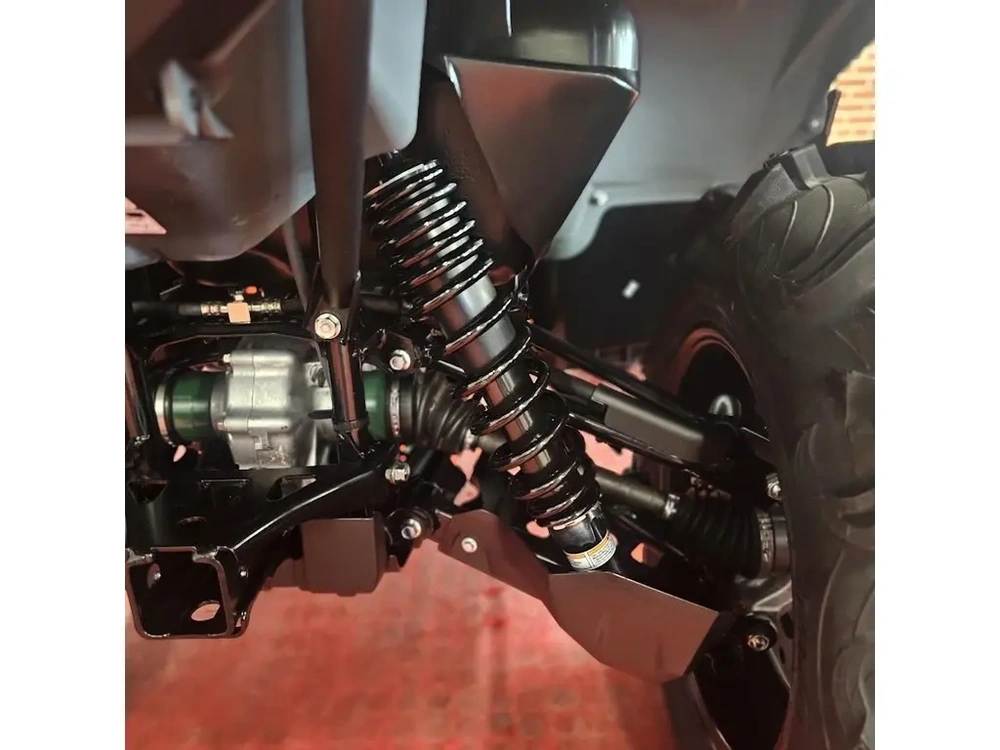

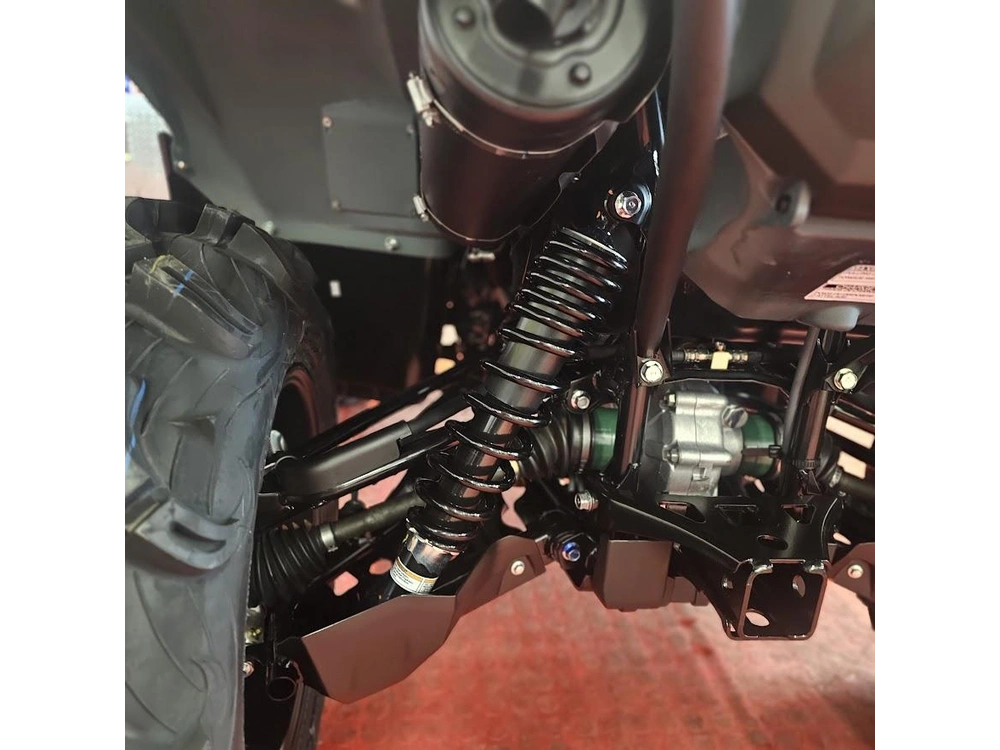

• Rear SuspensionAdjustable independent double wishbone with anti-sway bar; 5-way preload adjustment

Brakes

• Front braking systemDual hydraulic disc
• Rear braking systemDual hydraulic disc

Wheels & Tires

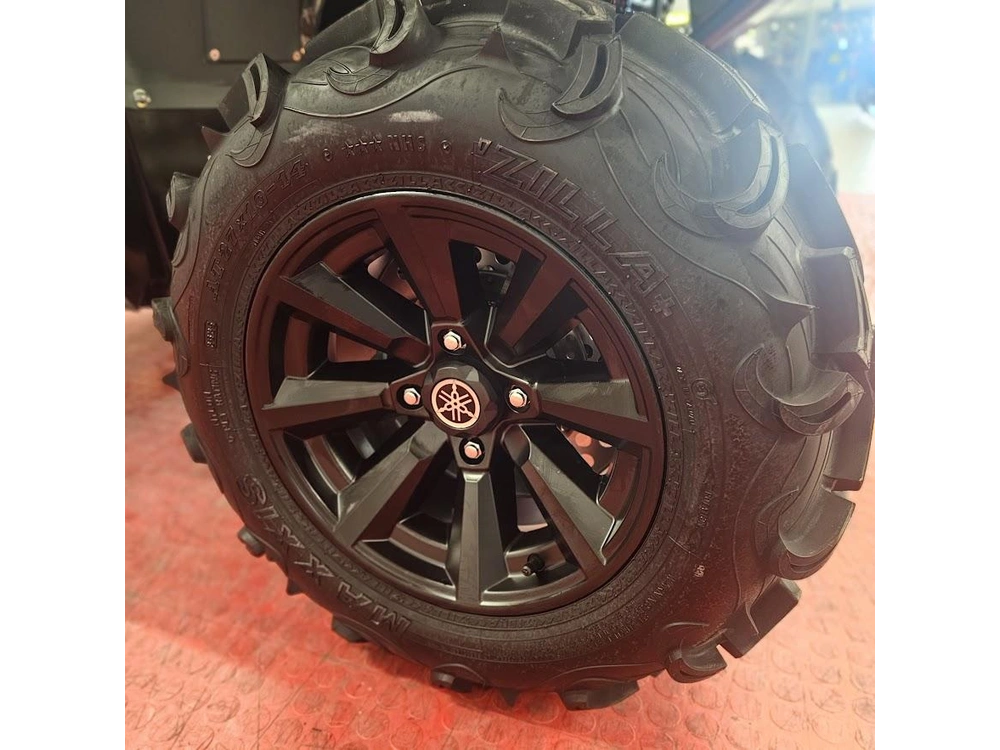

• Front TireMaxxis® ZILLA® MU01 27 x 10-14
• Rear TireMaxxis® ZILLA® MU01 27 x 10-14
• Front Wheel Travel193 mm (7.6")
• Rear Wheel Travel232 mm (9.1")

Dimensions

• Length2070 mm (81.5")
• Width1250 mm (49.2")
• Height1270 mm (50")
• Wheelbase1250 mm (49.2")
• Ground ClearanceMaximum: 300 mm (11.8")
• Turning Radius3708 mm (146")
• DimensionsTread (Front): 1000 mm (39.4") | Tread (Rear): 975 mm (38.4")

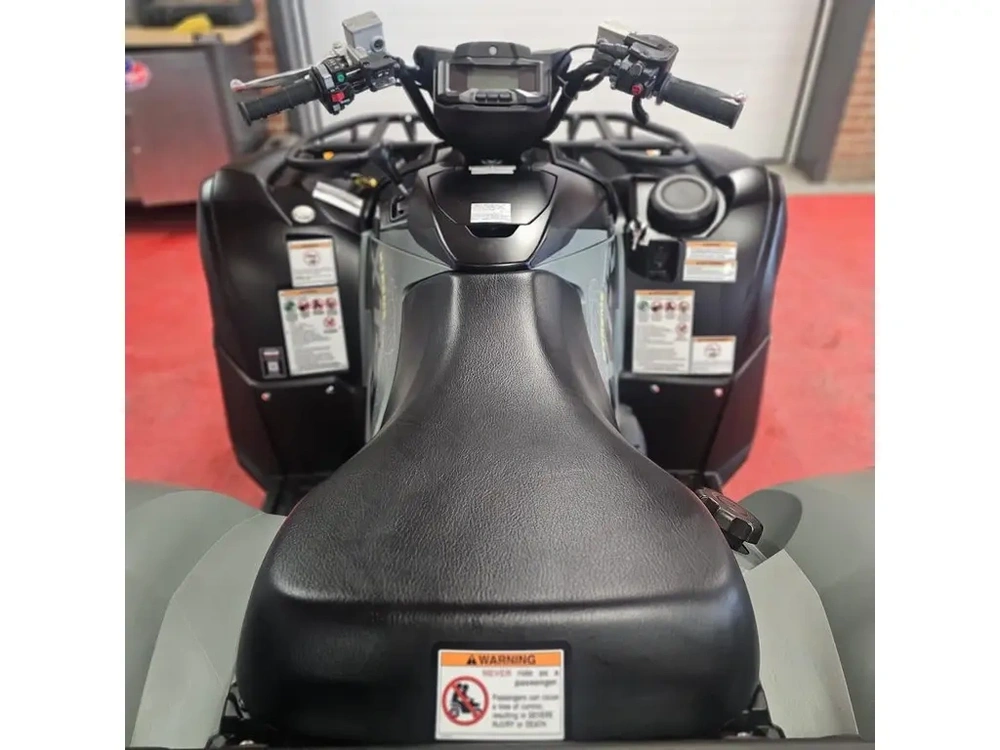

• Seat Height917 mm (36.1")

Capacities

• Fuel Capacity18 L

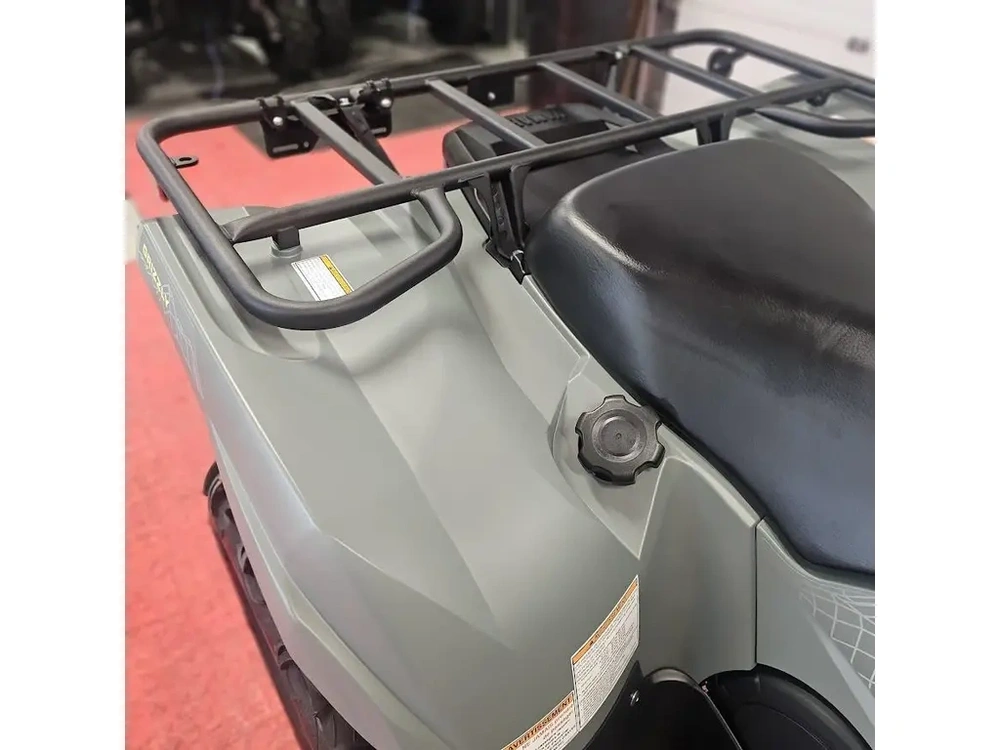

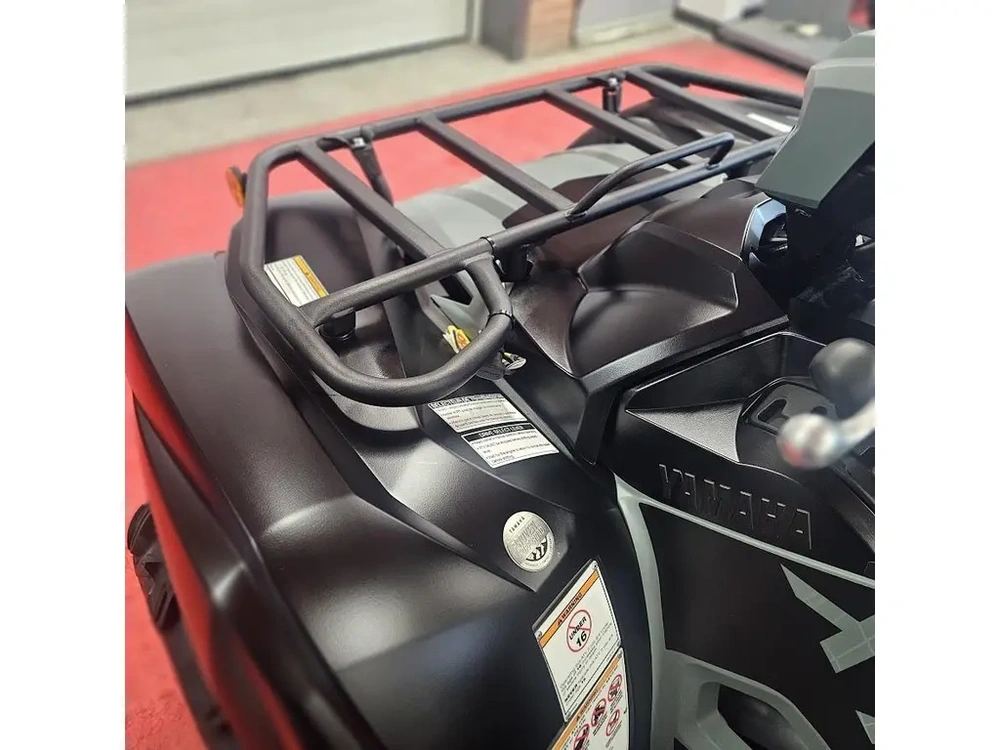

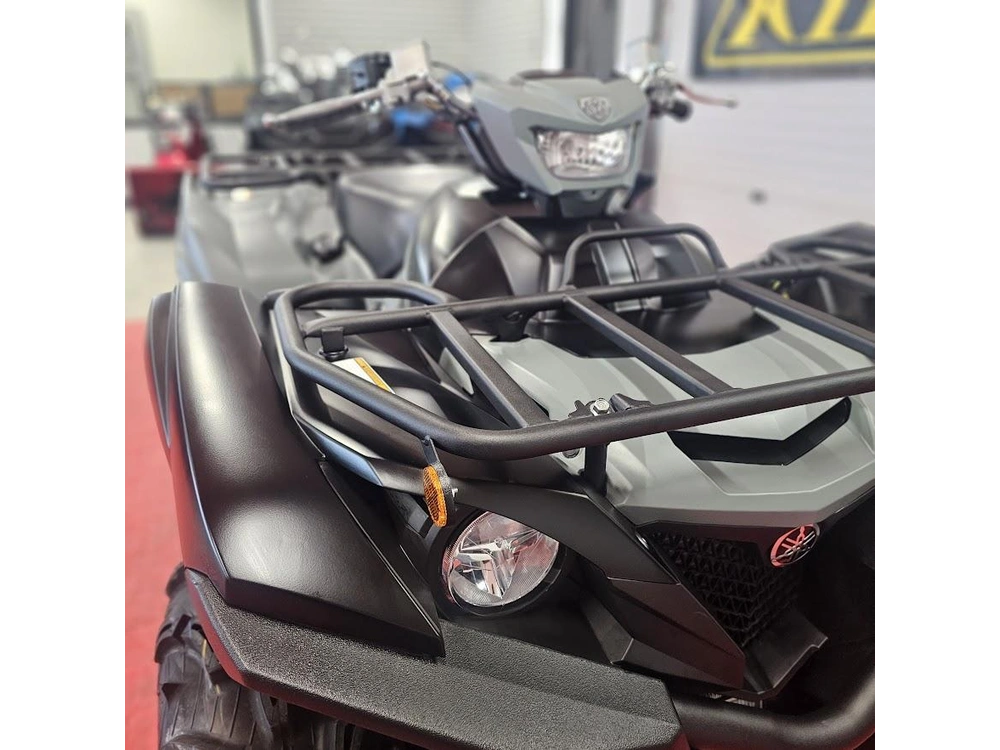

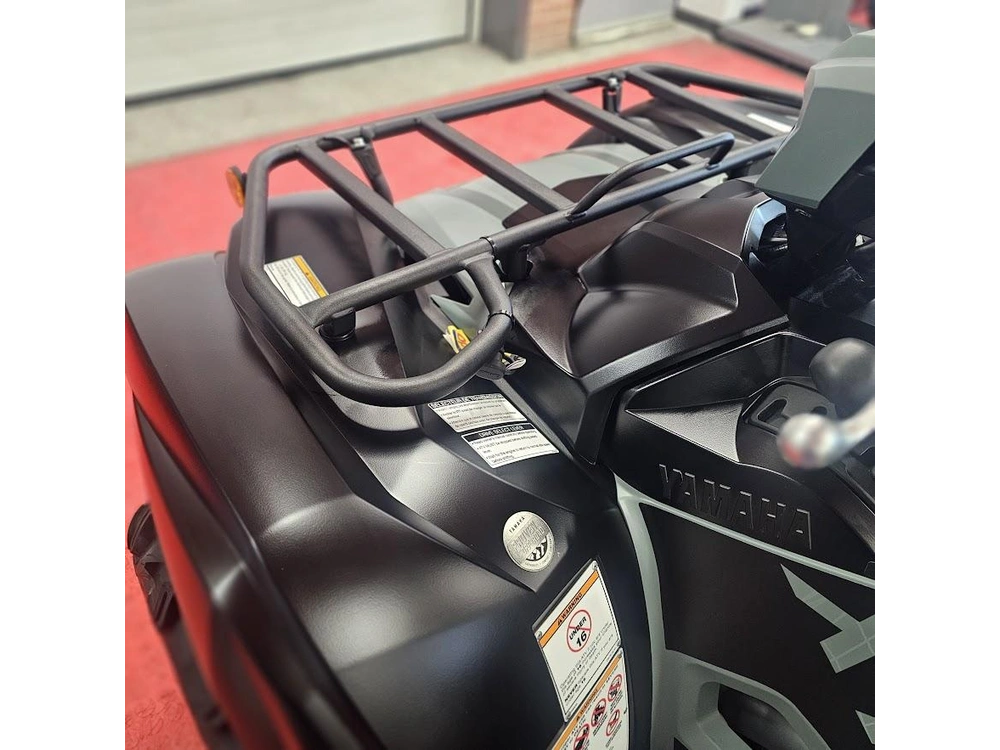

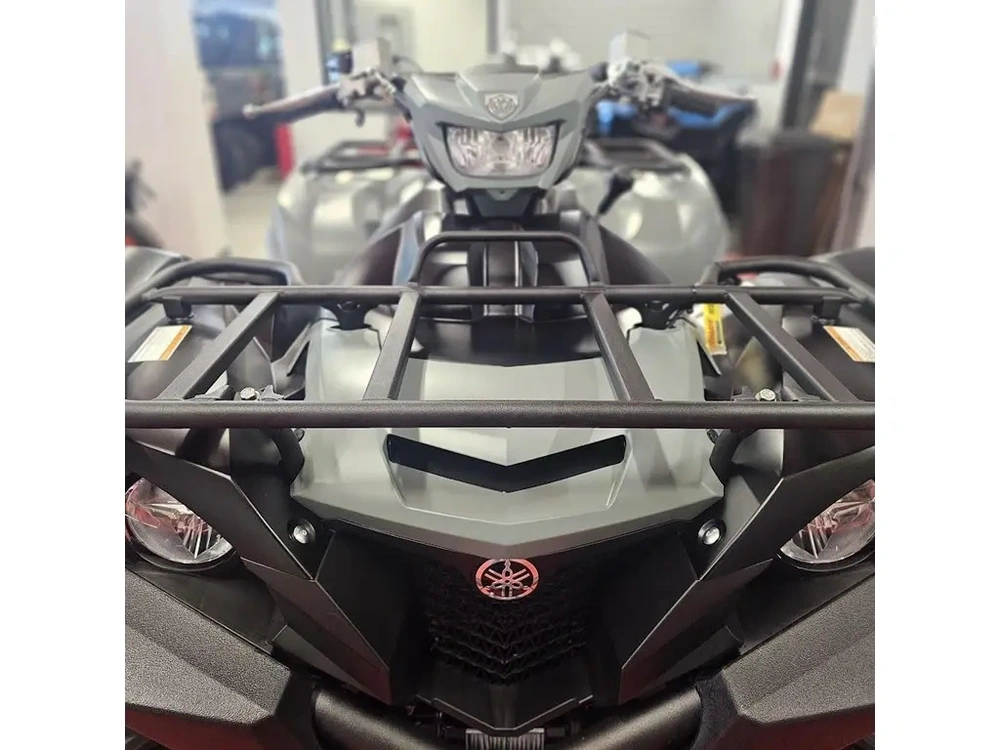

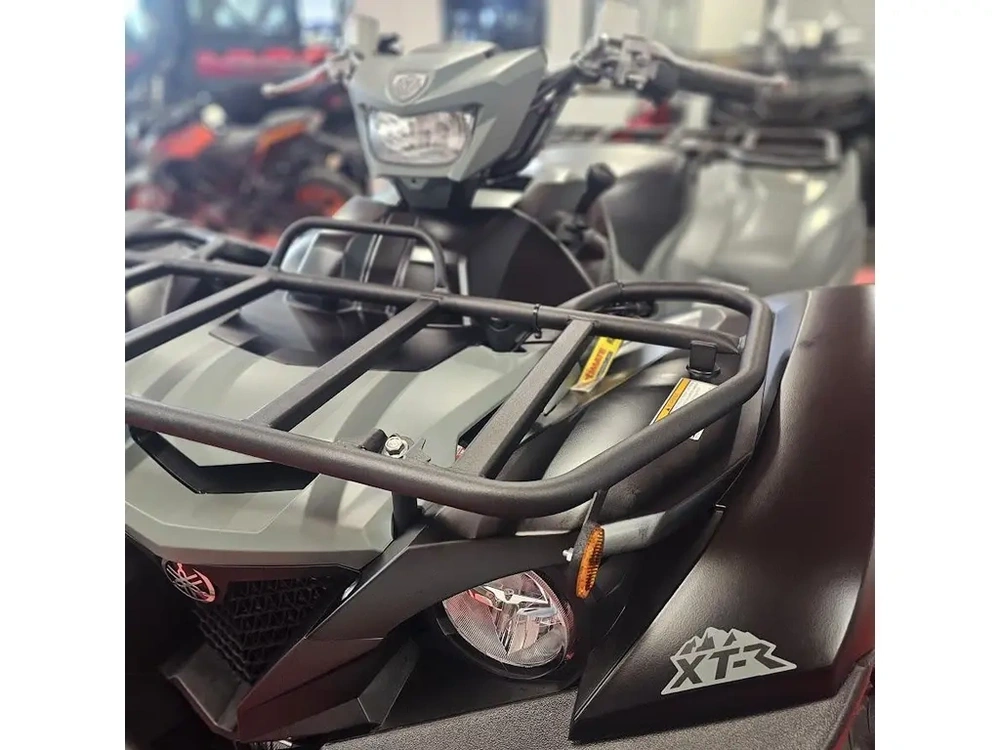

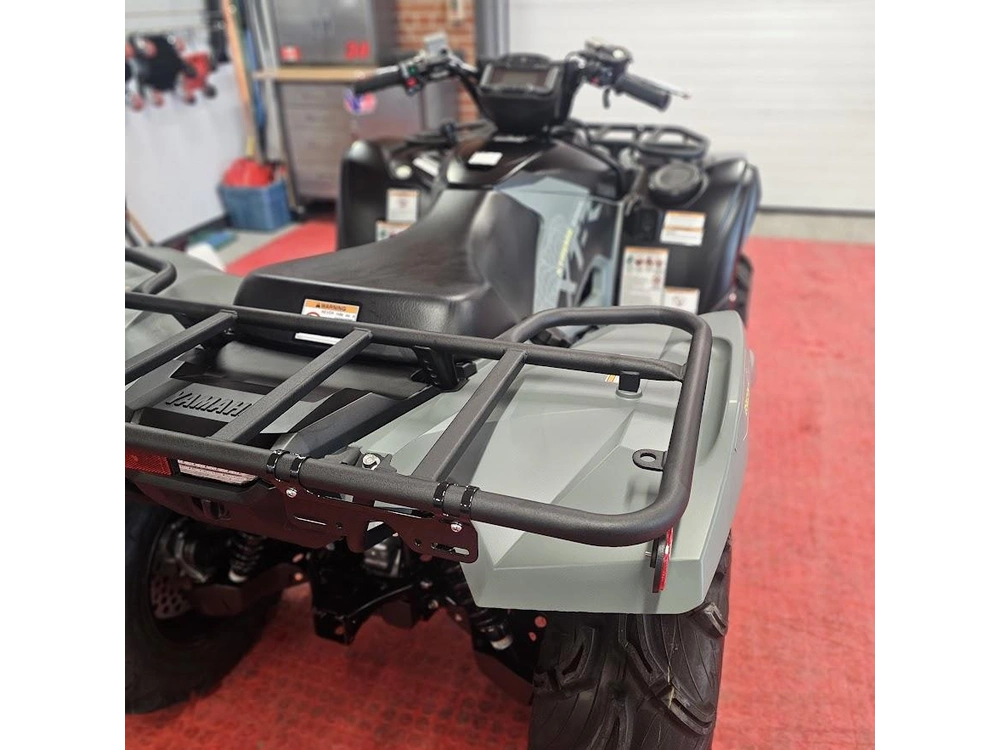

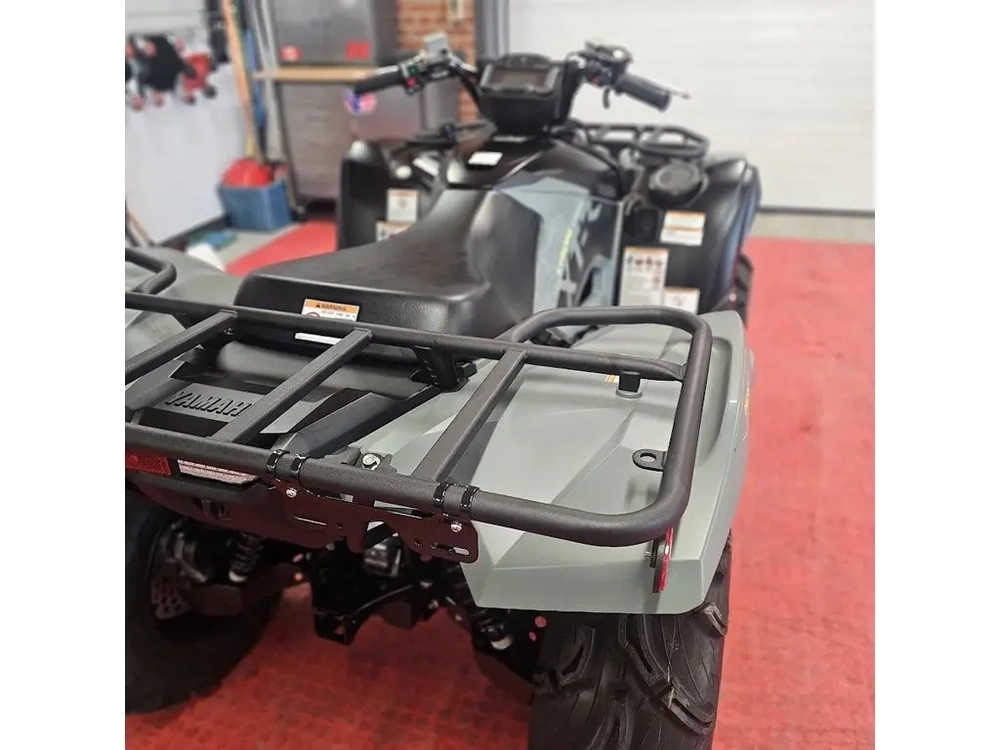

• Rack capacity, front50 kg (110 lb)

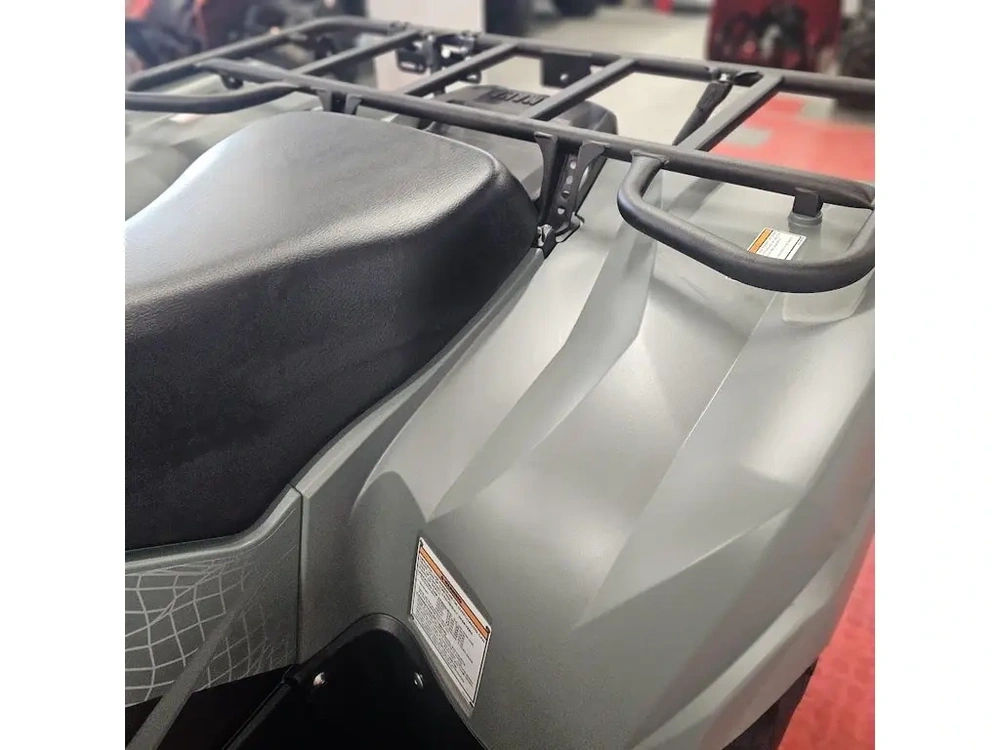

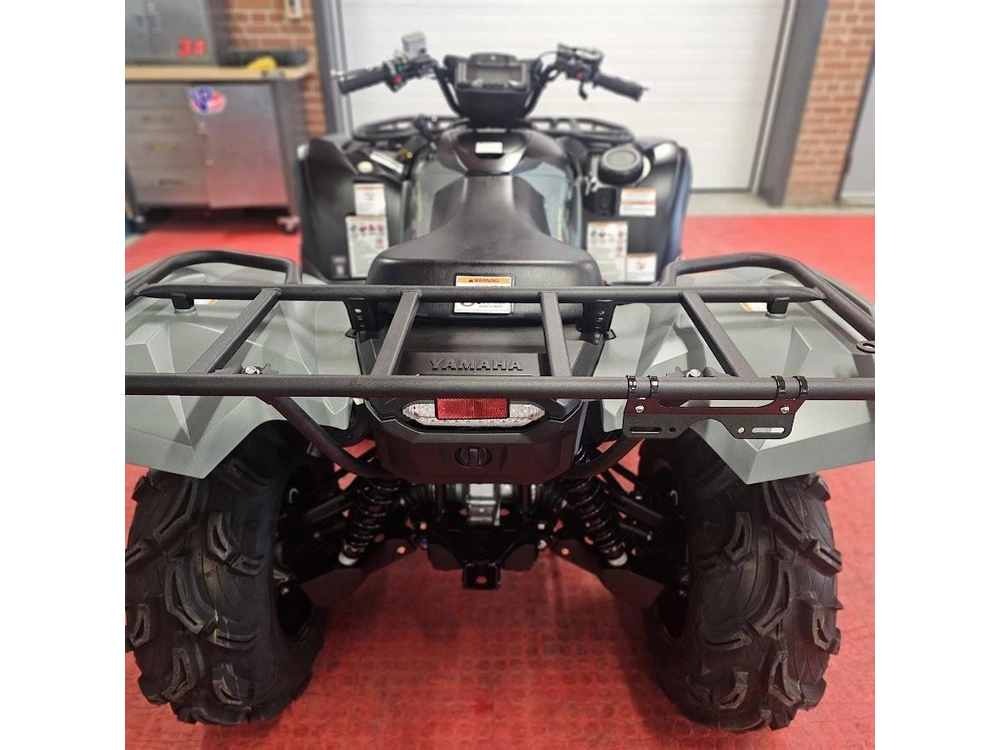

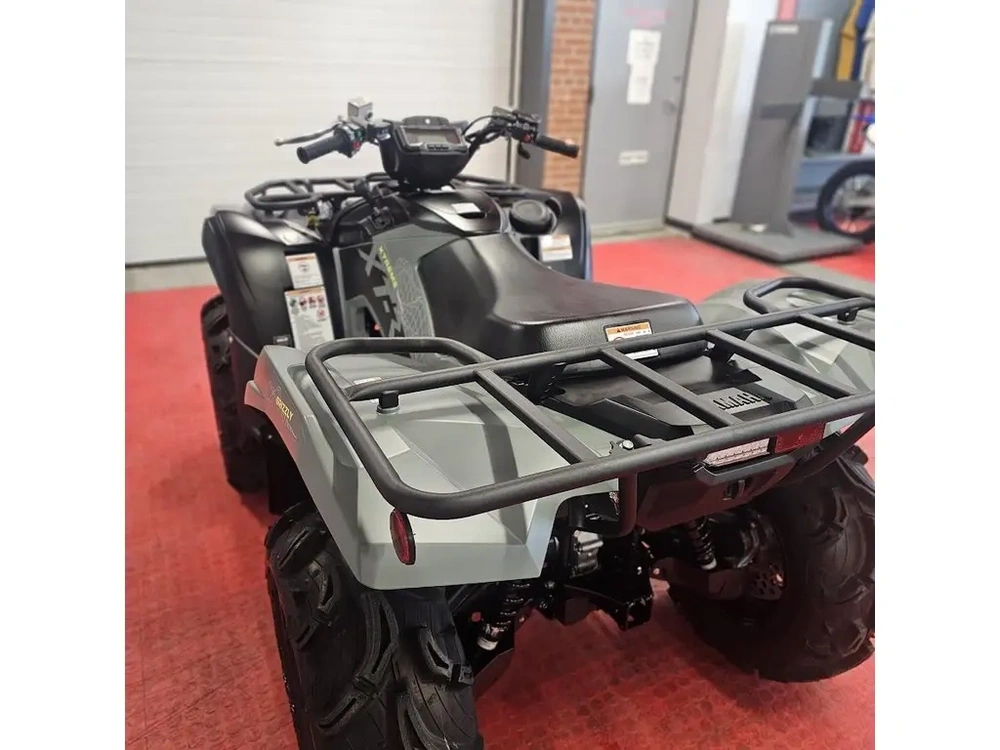

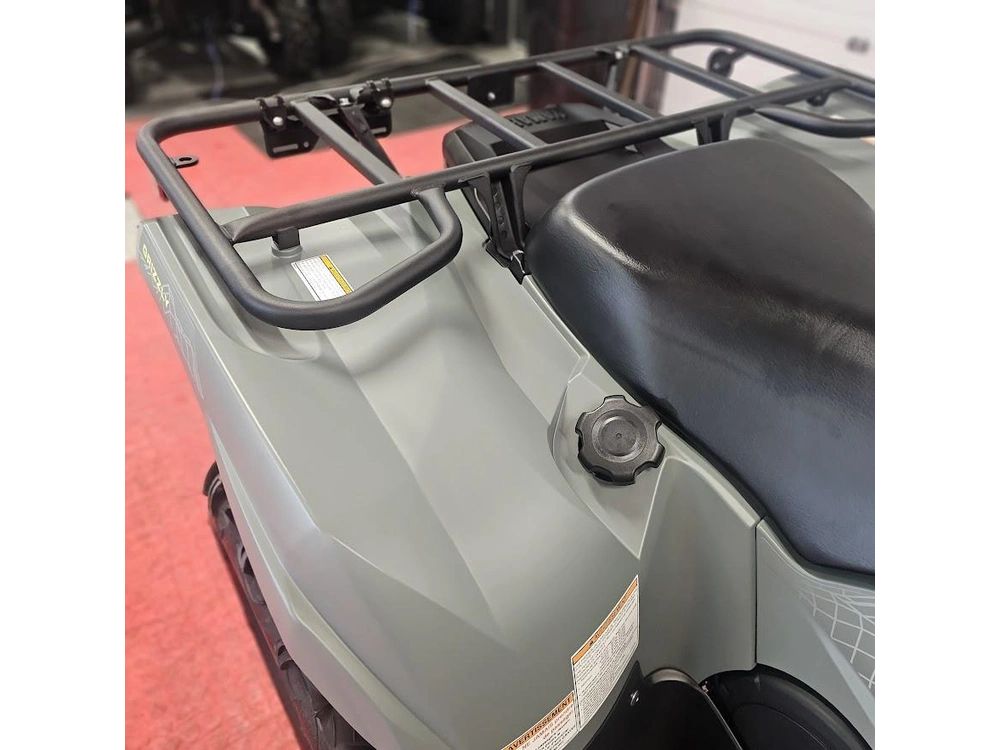

• Rack capacity, rear90 kg (198 lb)
• Towing Capacity600 kg (1,322 lb)

Weights

• WeightWet: 342 kg (754 lb)
