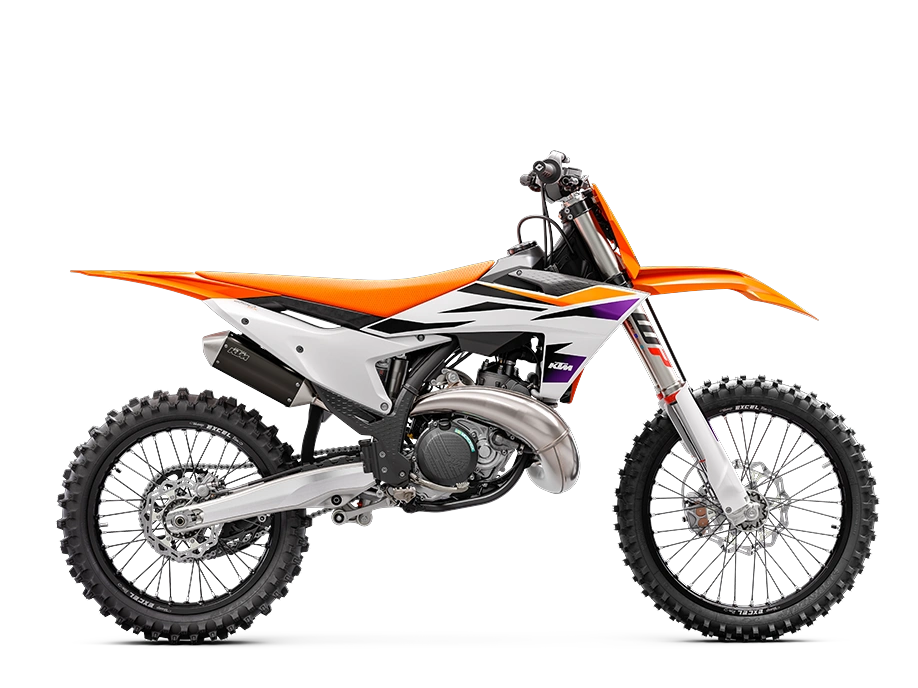

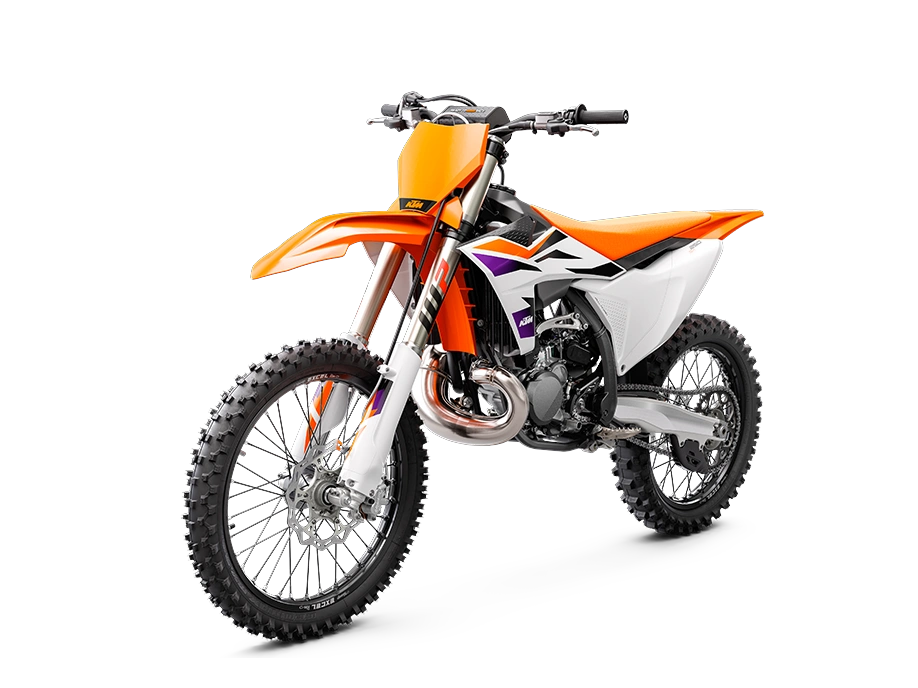

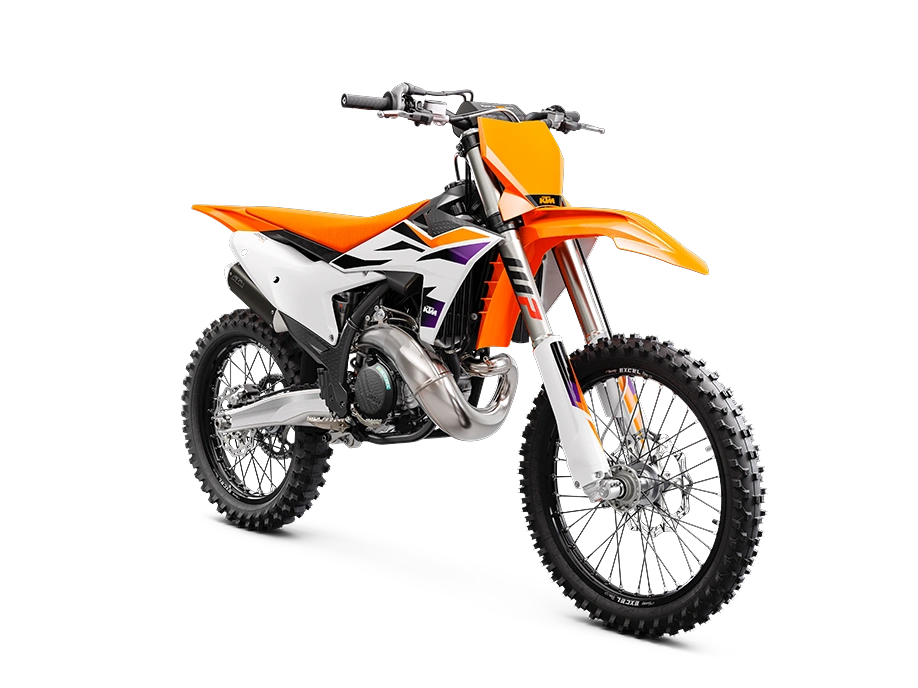

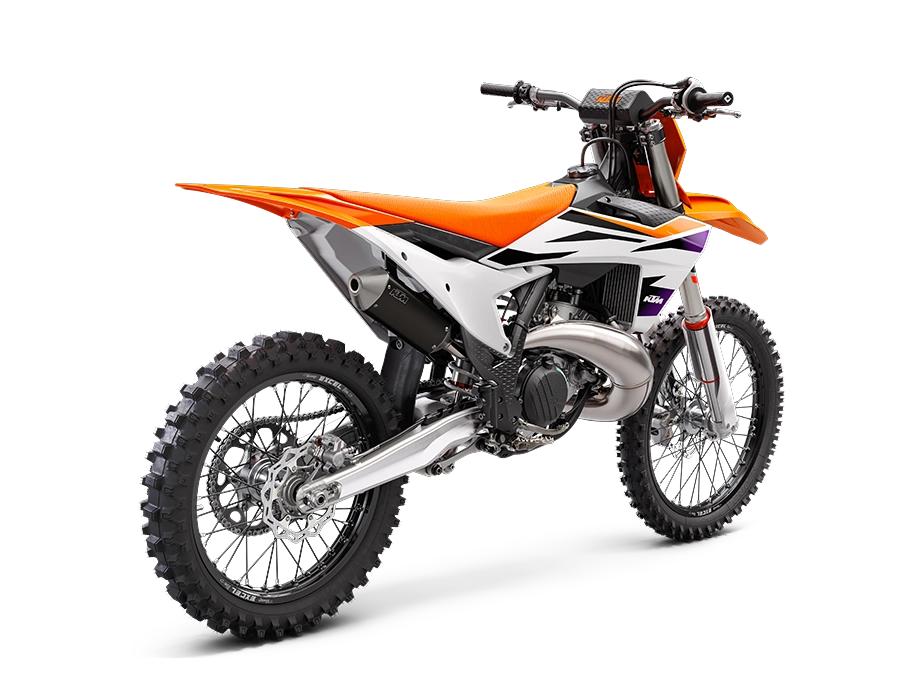

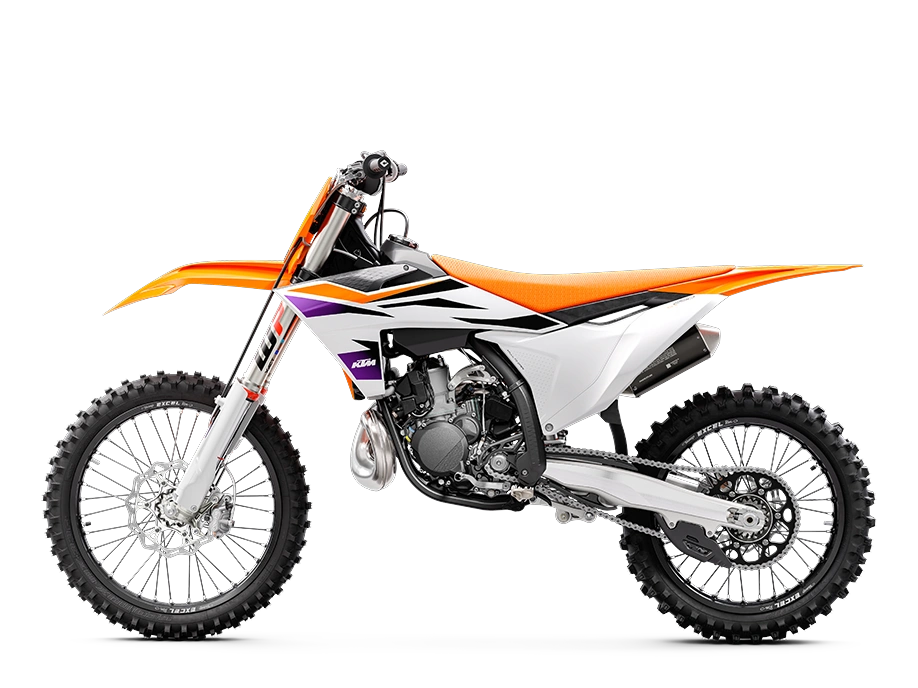

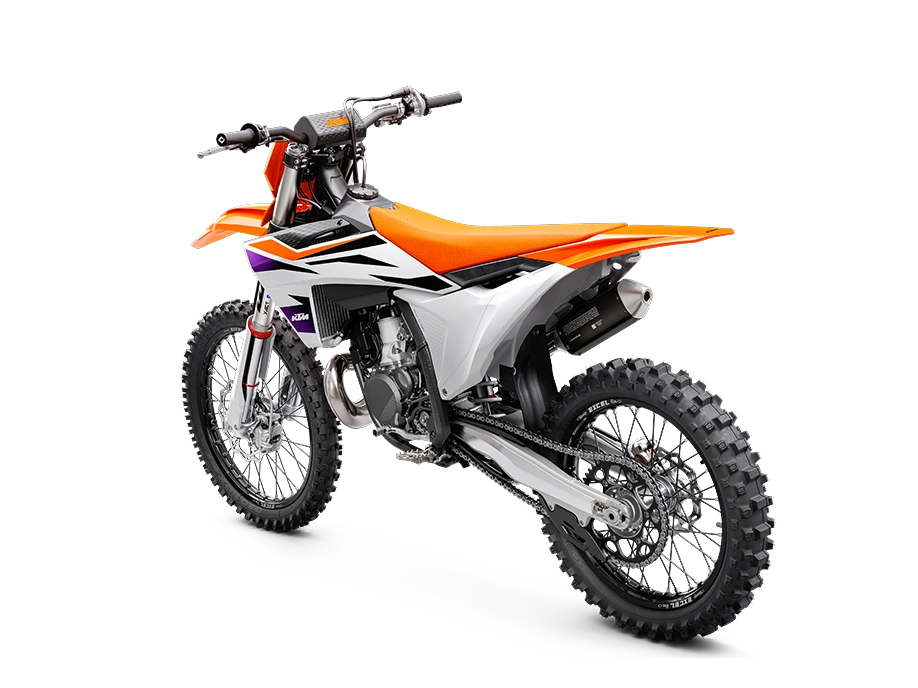

2024 KTM 250 SX

Features may include:

BEFORE THE GATE

• Easy Suspension Adjustment

Get dialed in! The 2024 KTM SX range boasts totally tool-free suspension setup at both ends. Thanks to the shock absorber design featuring hand-adjustable dual compression control, it allows riders to adjust high- and low-speed settings in a matter of seconds. On the front end, the forks are also easily adjusted thanks to a single air pressure preload valve, as well as through easy access click adjusters for compression and rebound. We'll even throw the air pump in as standard.

START STRONG

• More Usable Power

Launch control, ENGAGED! Designed for the holeshot, the 2024 KTM SX-F range comes standard with launch control and a Quickshifter function, allowing for fast upshifts without using the clutch. Launch control is easily engaged by pressing the traction control and Quickshifter buttons simultaneously and works by limiting the amount of power to the rear wheel, improving traction, and preventing loss of control under hard acceleration. Meanwhile, the Quickshifter function means you can bang through from 2nd to 5th gear with your focus solely on the first corner.

CALM UNDER FIRE

• Absolute Control

No matter how gnarly the track is, you'll find complete confidence thanks to the frame design that has not only been engineered for longitudinal rigidity but also repositions rotating mass closer to the center of gravity. The shock mounting also provides improved anti-squat behavior for better traction out of corners, while the footpeg mounting position has moved inwards for less risk of hooking up in deep ruts or when scrubbing jumps.

HIT THE BIG STUFF

• Mass Centralization

Ready to rip your arms out of the sockets? Together with the benefits of mass centralization and the anti-squat behavior of the chassis, the 2024 KTM 250 SX-F gets its power down perfectly when tearing out of corners.

MAINTAINING MOMENTUM

• *Bi-weekly quote includes HST, Freight, PDI, and admin. 120 Months. $0 Down Payment. OAC. Conditions apply and bi-weekly payment values are intended as a guide, as rates and terms are subject to change without notice. – talk to our finance office for all the details as they pertain to your specific situation.

TECHNICAL DETAILS

Engine

• Engine1-cylinder, 4-stroke engine
• Displacement249.9 cm³
• Bore81 mm
• Stroke48.5 mm
• StarterElectric starter
• EmissionsKeihin EMS

Drivetrain

• Transmission5-speed
• ClutchWet multi-disc DS clutch, Brembo hydraulics
• SteeringHead Angle: 63.9 °

Chassis

• Chain Type520, Non-sealed
• Frame TypeCentral double-cradle-type 25CrMo4 steel

Suspension

• Front SuspensionWP XACT-USD, Ø 48 mm
• Rear SuspensionWP XACT Monoshock with linkage
• Front Travel (in./cm.)310 mm
• Rear Travel (in./cm.)300 mm

Brakes

• Brake Disc Diameter, Front260 mm
• Brake Disc Diameter, Rear220 mm
• Front braking systemDisc brake
• Rear braking systemDisc brake

Dimensions

• Ground Clearance359 mm
• Seat Height958 mm

Capacities

• Fuel CapacityTank: 7.2 l

Weights

• WeightWithout Fuel: 101 kg
