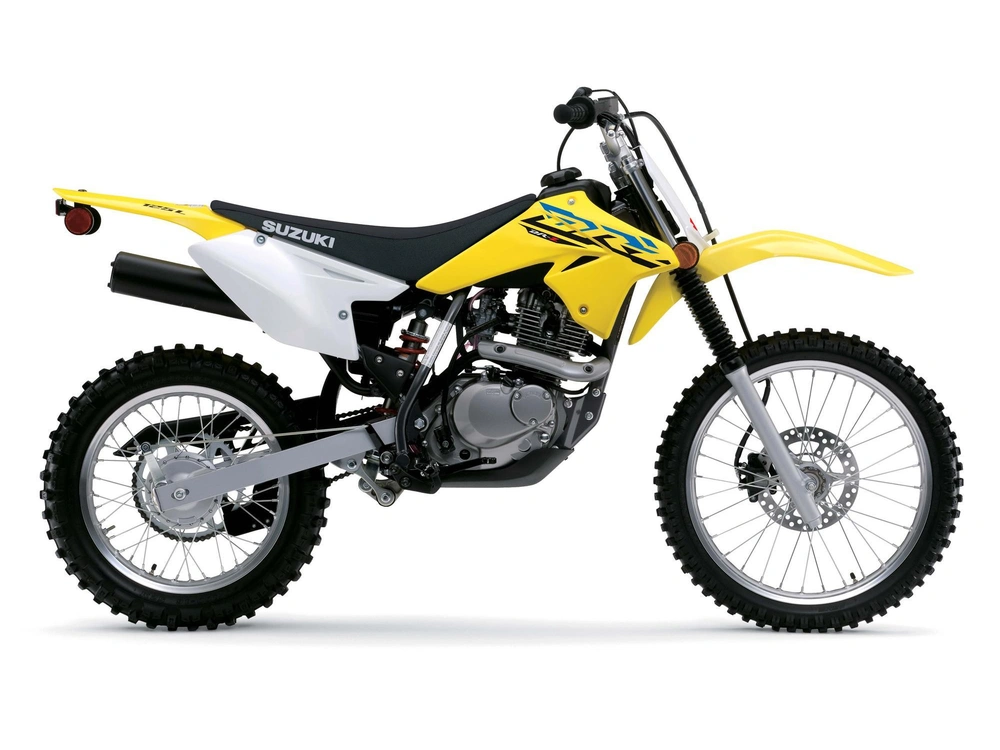

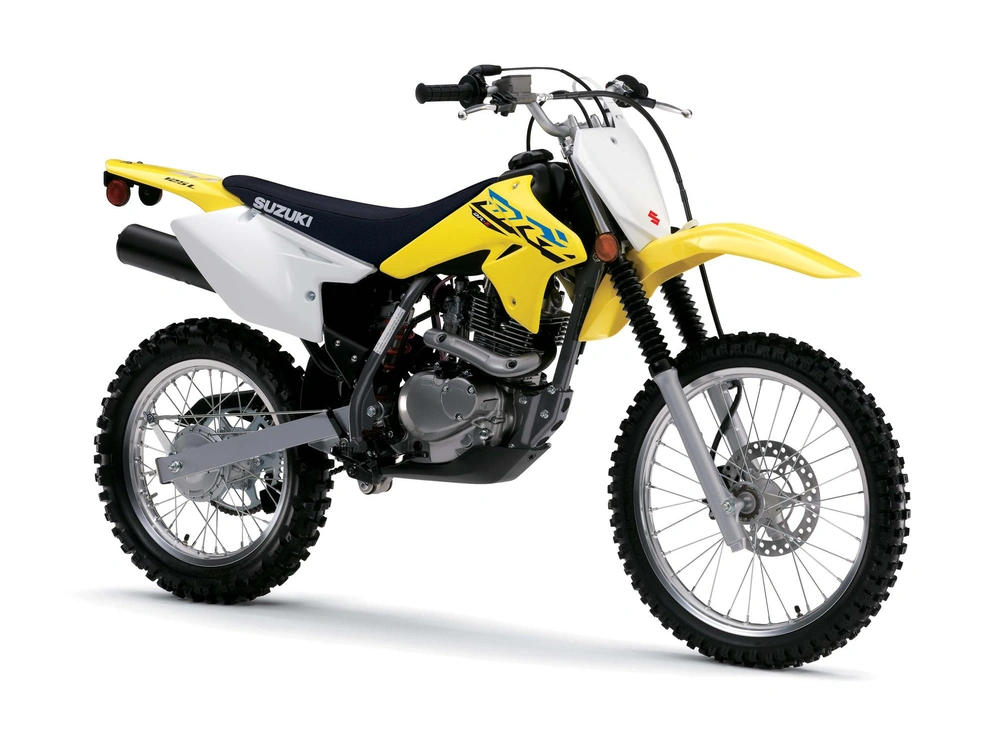

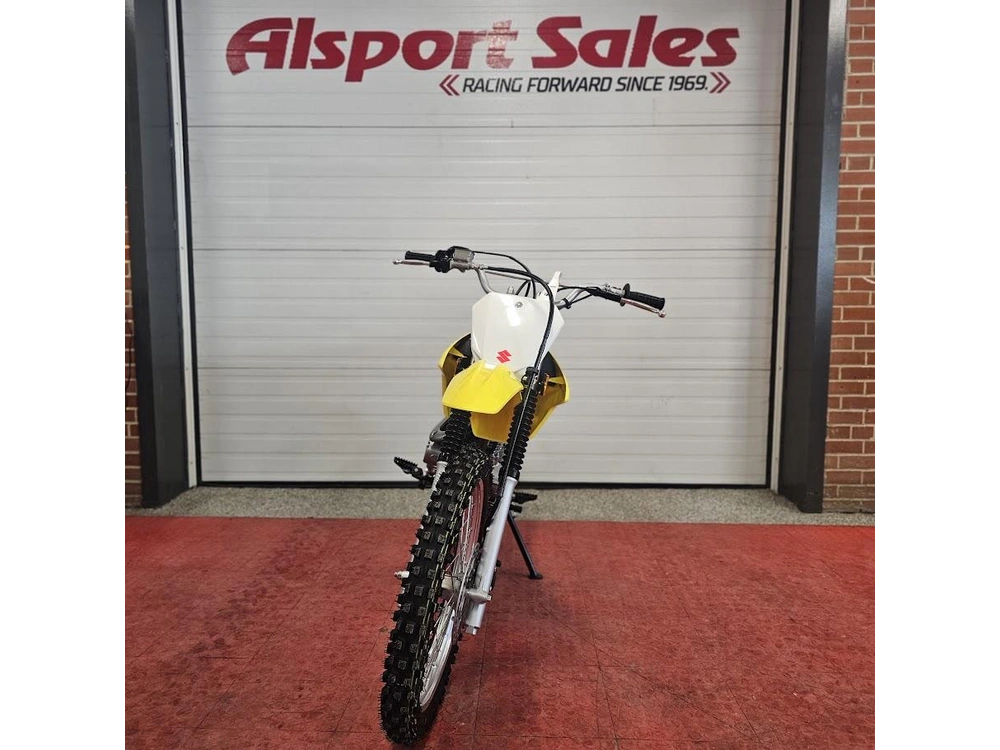

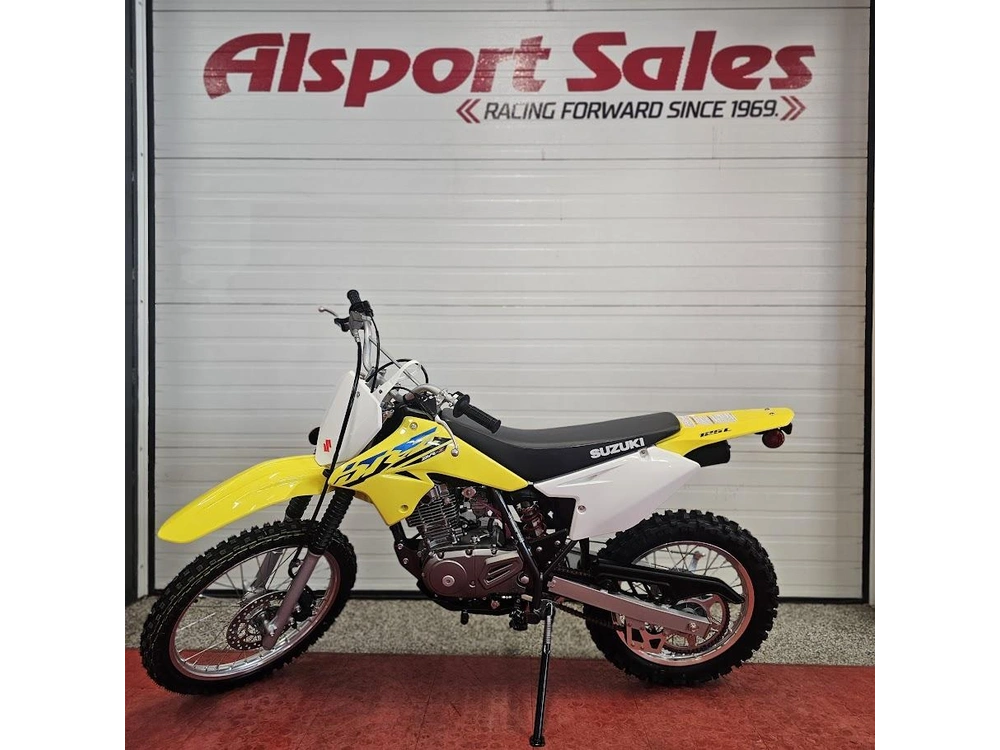

2026 Suzuki DR-Z 125L

DR Z125L

Blending race-inspired looks along with an exciting entry-level off-road package creates the DR-Z. Built around a time-proven chassis and engine package. Inheriting sleek designs from its RM-Z brothers, the DR-Z yields motocross styling that looks good at the local track or a favourite trail.

Two for the trails

The DR-Z comes stocked with all the necessities for long, exciting rides. A larger 19-inch front tire and 16-inch rear tire as well as a front disk brake provide a longer lifespan of usefulness. Styled to reflect the RM-Z models, this DR-Z promotes a more race-oriented look while the sharp handling and strong low-to-mid end power provide the get-up-and-go that defines off-road bikes. The looks are a testament that you can’t judge a book by its cover because the DR-Z125L is a simple package packed with loads of fun.

Reliable 125cc Engine

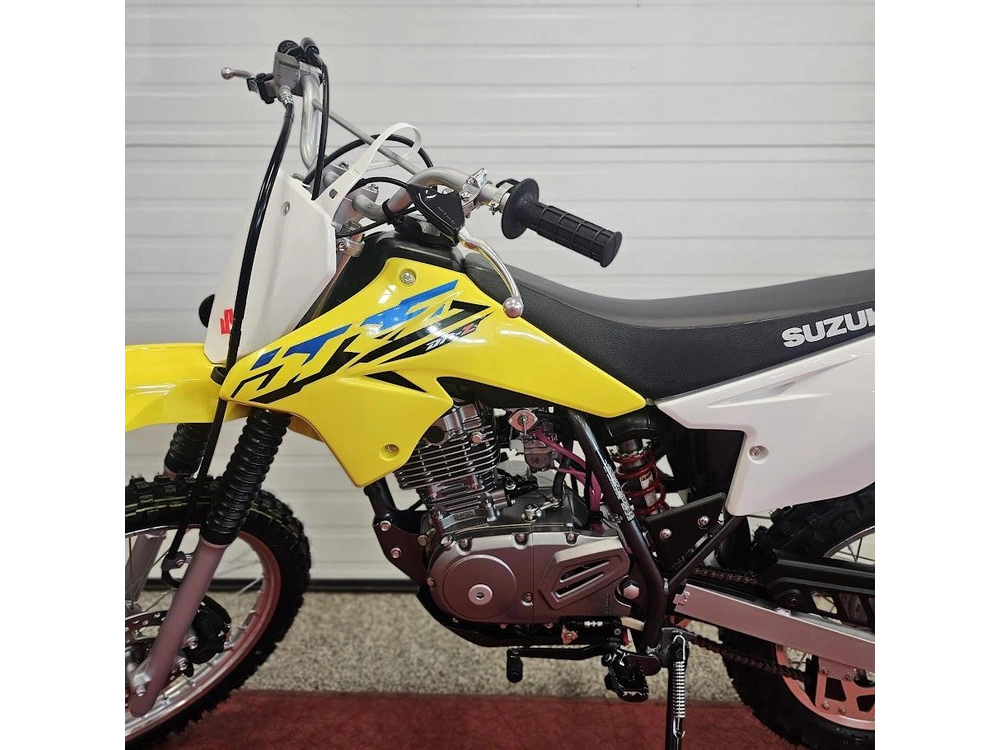

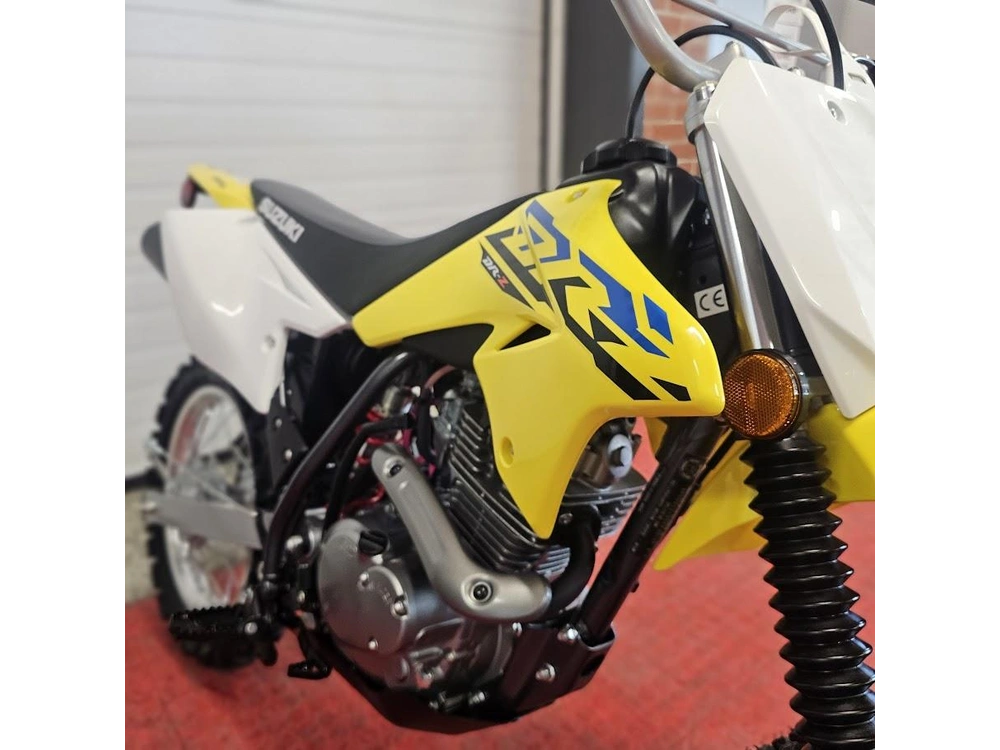

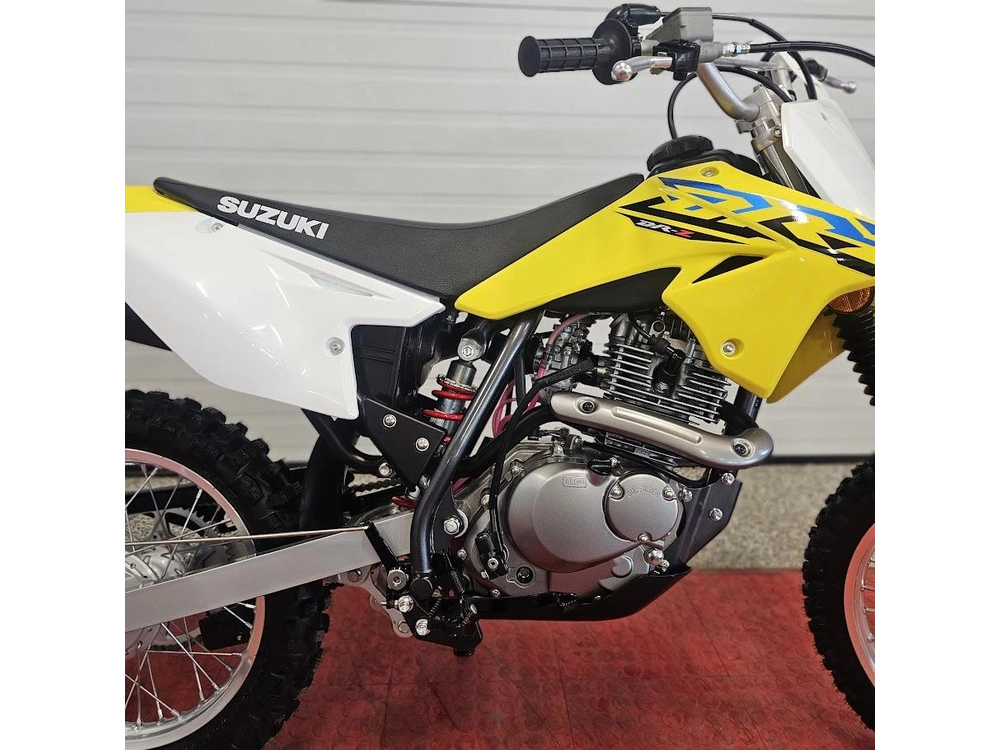

Compact, 124cc, four-stroke, single cylinder, SOHC, air-cooled engine provides strong low- to mid-range power delivery that can be easily handled.

Lightweight Engine Skid Plate

A lightweight plastic skid plate helps protect the bottom of the engine.

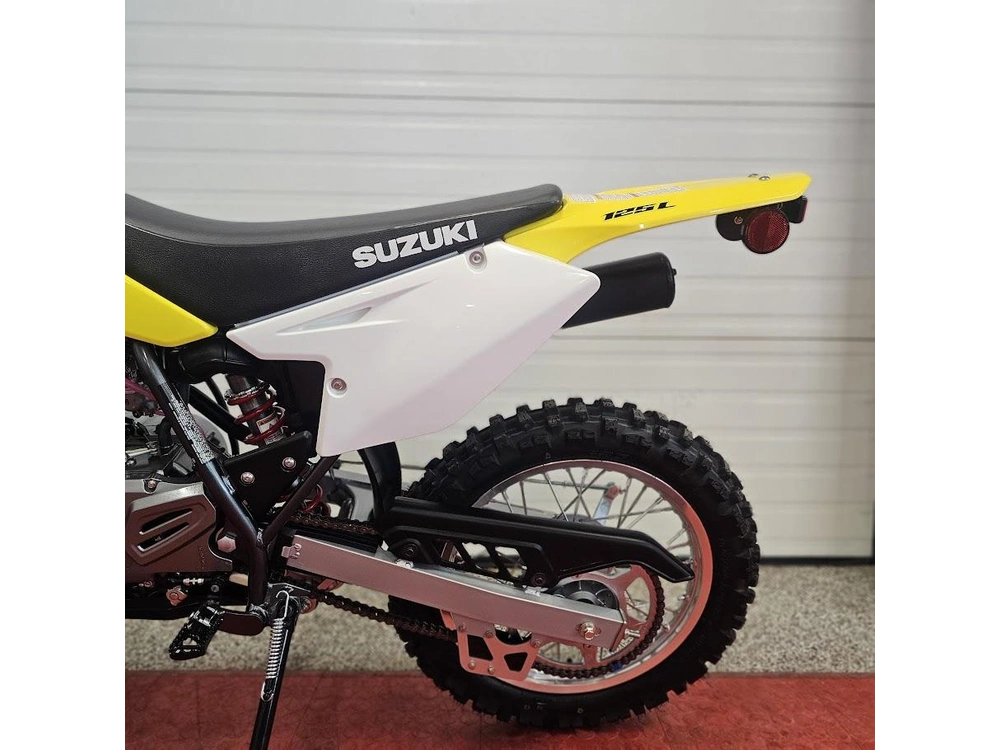

Link-type rear suspension

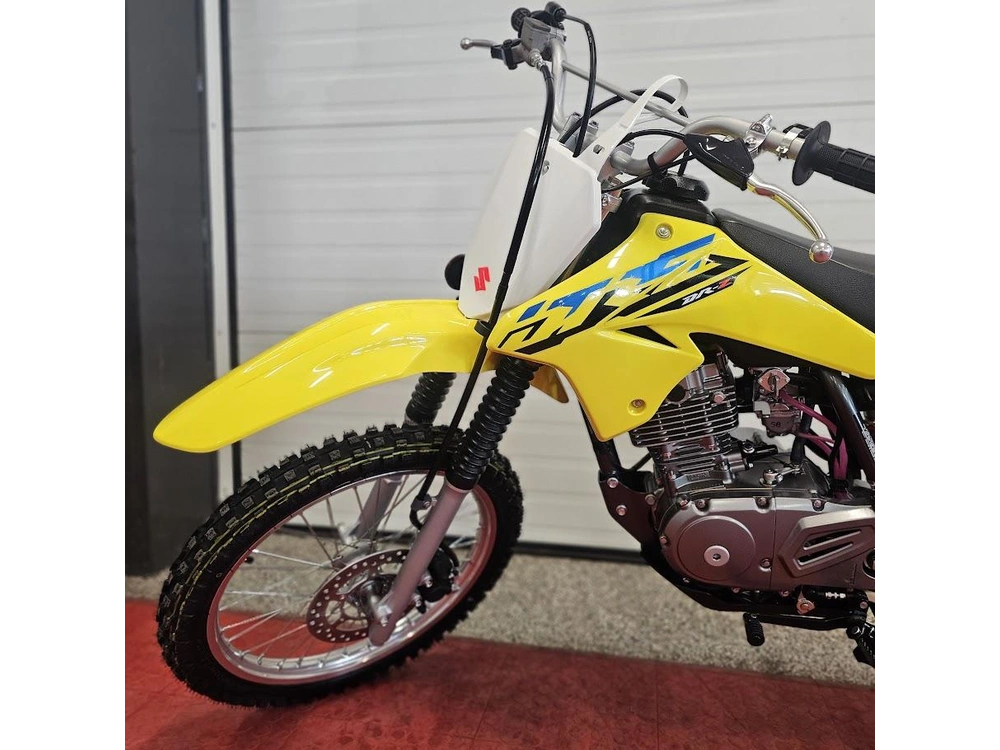

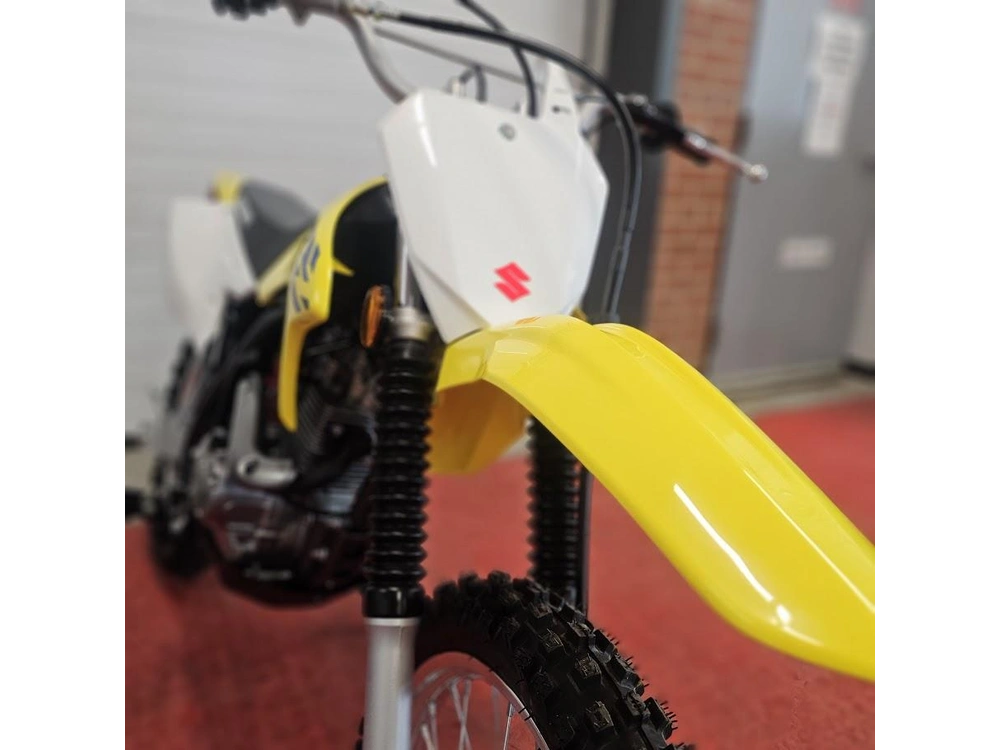

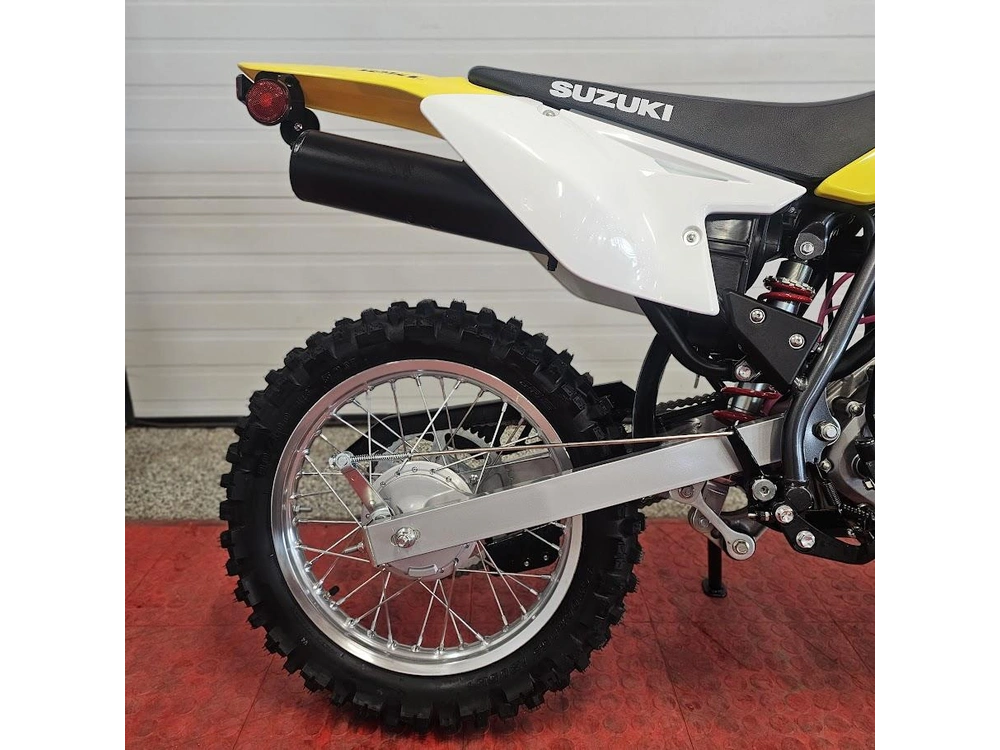

Telescopic front forks and link-type rear suspension provide long wheel travel and smooth, progressive action that creates an enjoyable, comfortable ride.

Lightweight aluminum rims

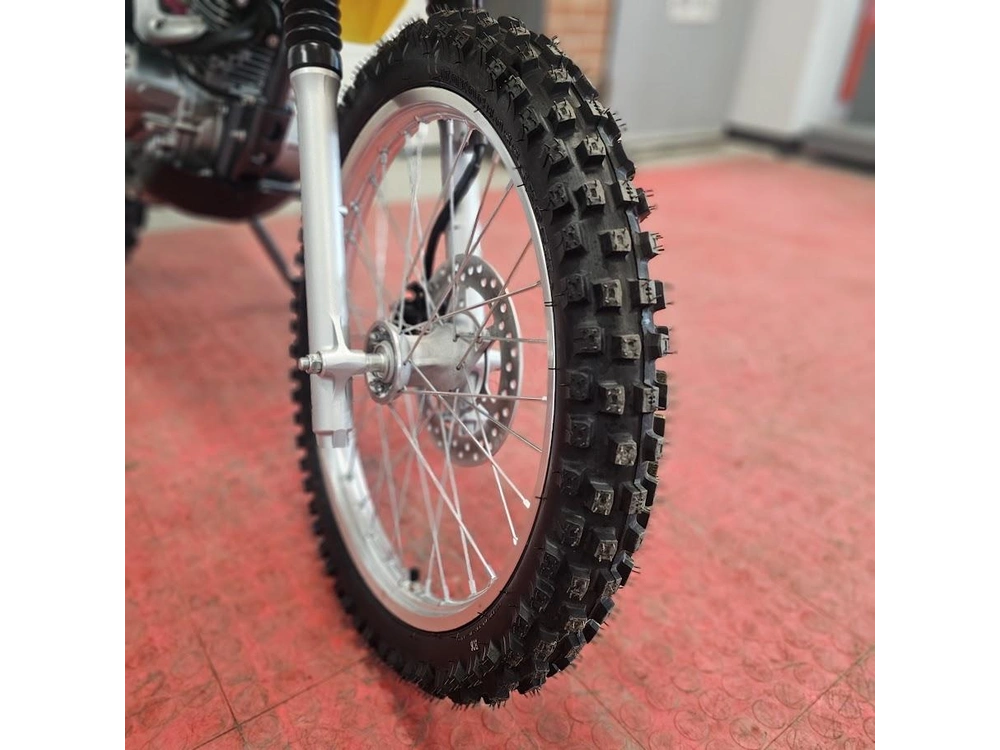

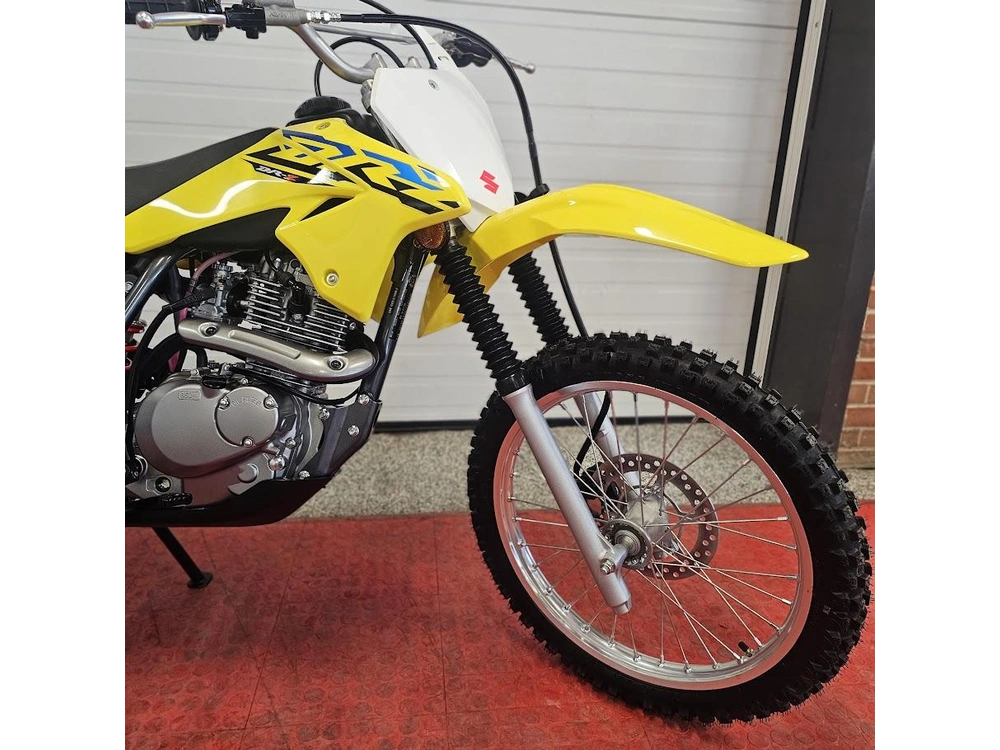

Lightweight aluminum rims (19-inch front/16-inch rear) for reduced weight contribute to agile handling and smooth suspension performance.

Strong braking performance

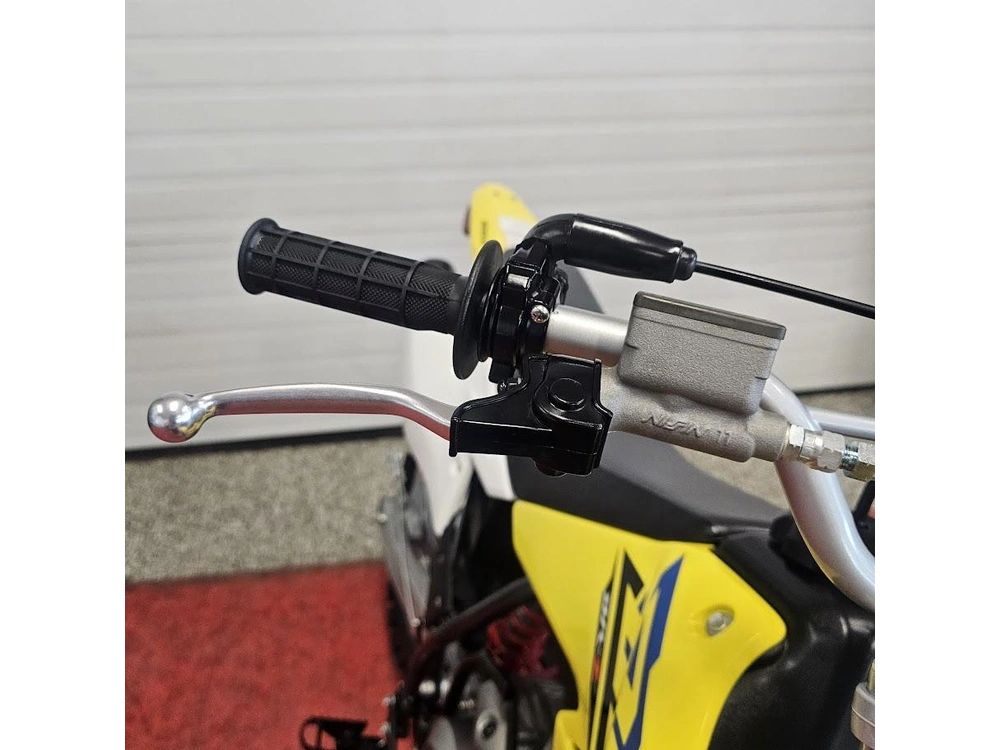

Strong braking performance is provided by a lightweight front disc brake and rear drum brake.

Lightweight Frame

Lightweight, high-rigidity steel pipe frame and rear beam-style swingarm are designed specifically to create a compact, mid-sized off-road machine.

TECHNICAL DETAILS

Engine

• Type 4-stroke, air-cooled, OHC
• Displacement 124 cc
• Bore x Stroke 2.2 in x 1.9 in
• Compression Ratio 9.5 : 1
• Fuel System MIKUNI VM20SS
• Starter Primary Kick
• Lubrication Wet sump
•  Ignition Electronic ignition (CDI)

Drive Train

• Transmission 5-speed constant mesh
• Final Drive DID 428HG, 130 links

Chassis

• Length 1885 mm (74.2 in)
• Width 770 mm (30.3 in)
• Height 1110 mm (43.7 in)
• Wheelbase 1270 mm (50.0 in)

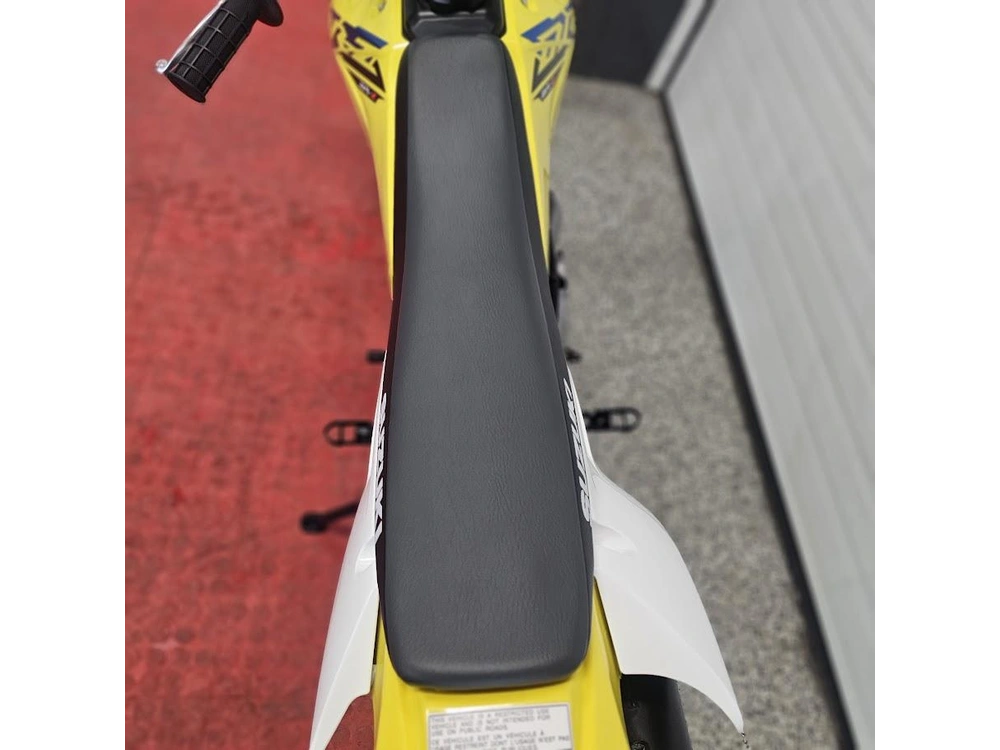

• Seat Height 805 mm (32.0 in)
• Curb Mass 89 kg (196 lbs)
• Suspension Front Telescopic, coil spring, oil damped
• Suspension Rear Link type, coil spring, oil damped
• Brakes Front Disc brake
• Brakes Rear Drum brake
• Tires Front 70/100-19 42M, tube type
• Tires Rear 90/100-16 52M, tube type
• Fuel Tank 4.8L (1.3 US gal)
